High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved

Jinan Junda Industrial Technology Co., Ltd.
  • Natural Abrasive Type：Garnet
  • Artificial Abrasive Type：Natural
  • Application：Stainless Steel
  • Function：Waterjet Cutting;Copper
  • Source：Natural Abrasives
  • Particle Size：0.18mm

Base Info

  • Model NO.：80#
  • Hardness：8.0mohs
  • Color：Red
  • Shape：Sub-Conchoidal
  • Specific Gravity：4.1 g,cm3
  • Al2 O3：16.72-18.06%
  • Average Bulk：2.4 g,cm3
  • Free Flow：90% Minimum
  • Certificate：SGS,Government Test Report
  • After-Sale Service：Sincere to Solve Customer′s Problems
  • MGO：4.75%
  • Fe2 O3：27.95-29.5%
  • Payment Term：T,T,L,C
  • Si O2：37.44-37.77%
  • Cao：9%
  • TiO2：1%
  • P2o5：0.05%
  • Transport Package：25kg,Bag, 40bag Per Ton Bag,Pallet
  • Specification：80#
  • Trademark：Honest Horse
  • Origin：Jiangsu
  • HS Code：251320
  • Production Capacity：2400 Tons,Month

Description

Chemical compositionColorRedPurity97-98%Specific Gravity4.1g/cm3Al2O316.72-18.06%Average Bulk2.4 g/cm3SiO237.44-37.77%ConductivityLess than 25 /mFe2O3 27.95-29.5%Mohs Hardness8.0 mohsMnO0.5%ToxicityNoneTiO21.0%Soluble SaltsLess than 100 ppmMgO4.75-4.88%Chloride ContentLess than 25 ppmCaO5.0-9.48%

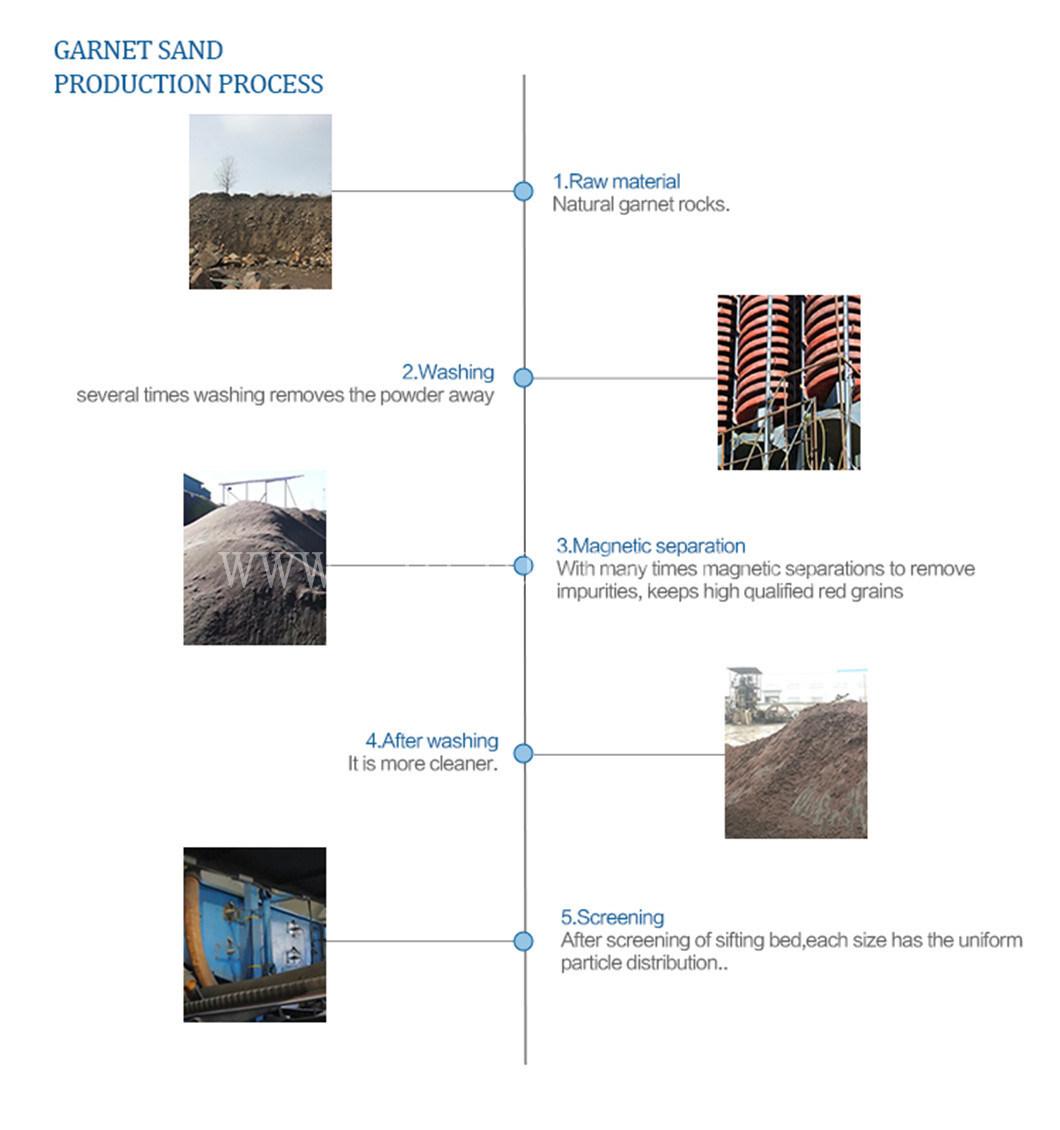

4. Garnet Sand Production Technology


High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved

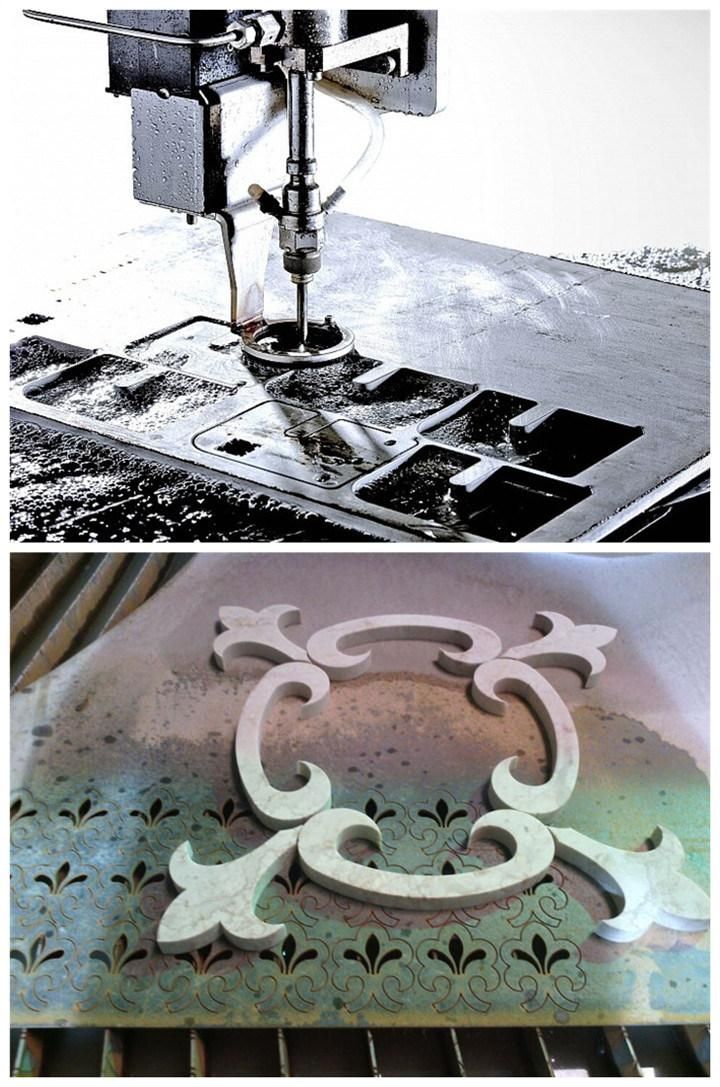

5. Garnet Sand Applications


Faster Cutting - Crushed and selected from hard rock so that HONEST HORSE  waterjet grade

garnet produces harder and sharper edges than other waterjet abrasives. These characteristics

enable our garnet more like a hard and sharp cutting tool to finish a faster cutting.


High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved

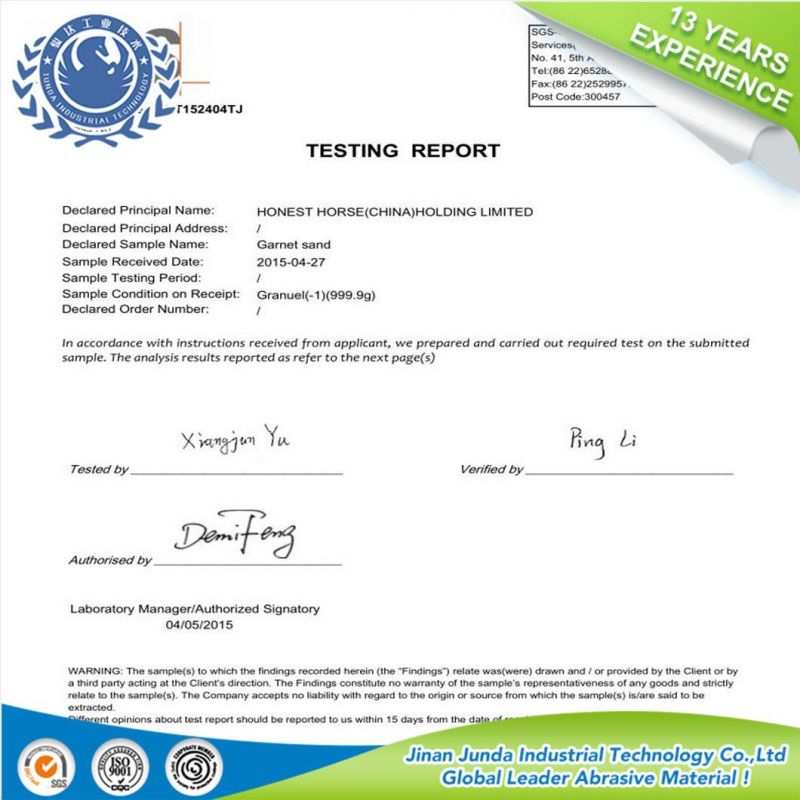

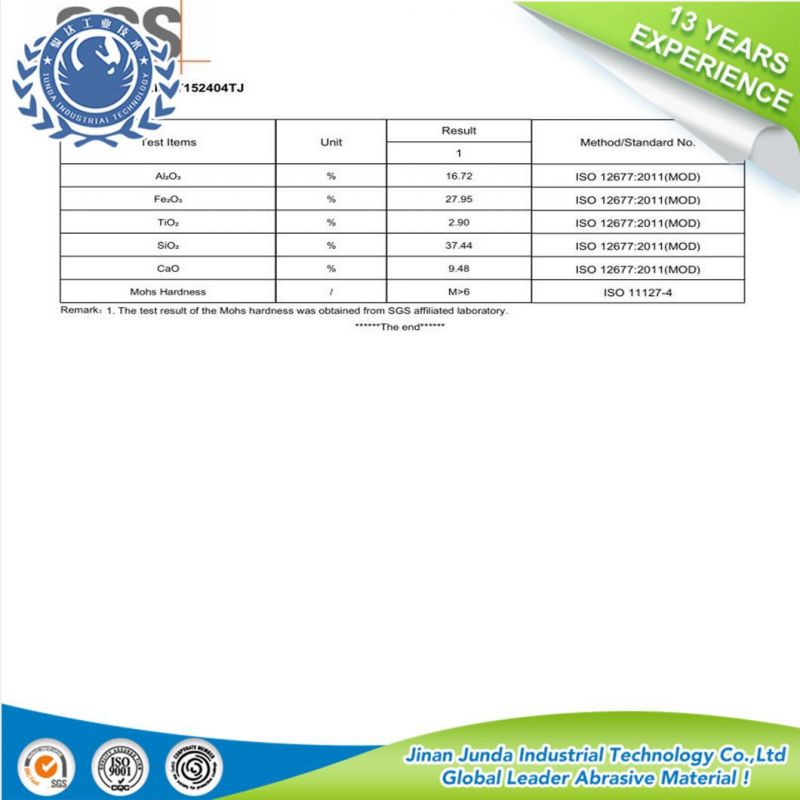

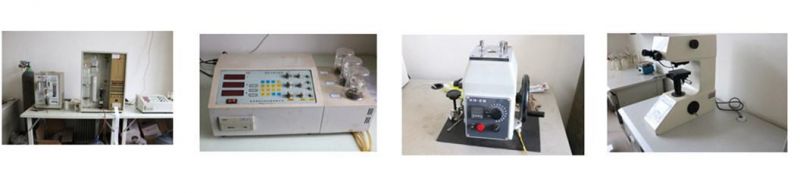

6. Garnet Sand Quality Test and test equipment


High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved
High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved
High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved

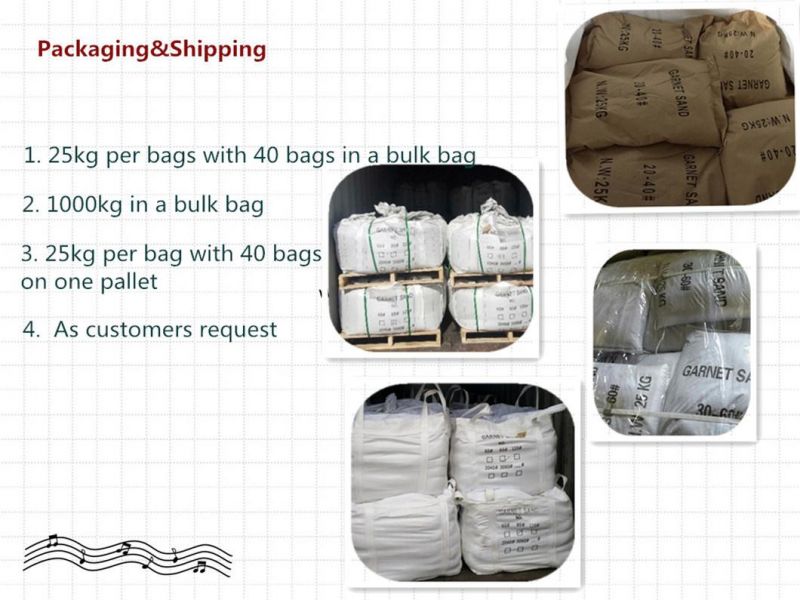

7. Packaging


1). 25kg/bag,then 40 bags in one ton bag.

2). 25kg/bag,then 40 bags on one ton pallet.

3). 1000kg in one ton bag.

We also can pack the garnet as customers' requirements.

High Hardness Best Selling Abrasive Sub-Conchoidal 80 Grit Garnet Sand for Cut Glass SGS Approved




8. Advantages of waterjet cutting

•  Efficient production technology as well, and especially with single part manufacturing

•  Almost no heat input in the component through the cutting jet

•  No structural changes in the material, such as increased hardness and micro fissures

•  High machining accuracy and surface quality at the cutting edge

•  No pollutants created during the cutting process

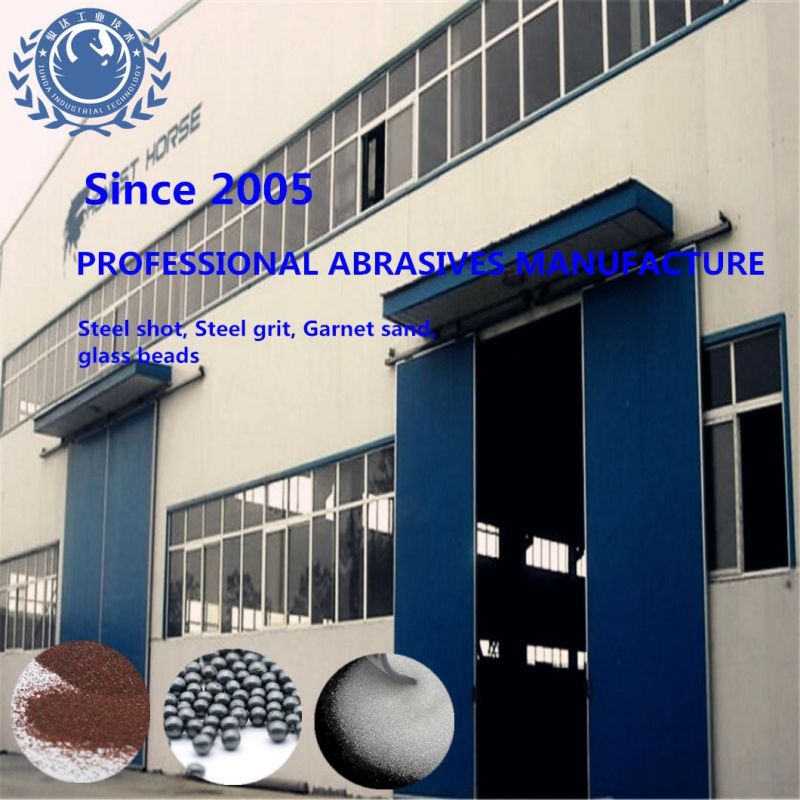

9. Company Profile

Honest Horse (CHINA) Holding Limited the manufacturer of abrasive media in northChina which

products include bearing steel grit,cast steel grit,cast steel grit ,steel shot and garnet sand.

So far, we have almost 15years experience and our customers spread over 90

countries around the world that distribute in Asia,Europe,North America,South America ETC
