• Model NO.：6A2, 12A2
• Circular Degree：<0.1
• Technics：Electroplating
• Working Style：Tool Grinding
• Grinding Wheels and Abrasive：Gear Grinding Machines
• Grinding Machines, Cylindrical Od：Grinding Machines, Tool, Cutter
• Sawing Abrasive Cut-off：Diamond Wheels
• CBN Wheels：CDX Wheels
• Transport Package：by CARTON
• Trademark：BONDFLEX, SAILI, SUMENG
• Origin：Jiangsu China
• HS Code：68042210
• Production Capacity：25000 pieces each size

Basic Info.

Model NO. 6A2, 12A2 Circular Degree <0.1 Technics Electroplating Working Style Tool Grinding Grinding Wheels and Abrasive Gear Grinding Machines Grinding Machines, Cylindrical Od Grinding Machines, Tool, Cutter Sawing Abrasive Cut-off Diamond Wheels CBN Wheels CDX Wheels Transport Package by CARTON Trademark BONDFLEX, SAILI, SUMENG Origin Jiangsu China HS Code 68042210 Production Capacity 25000 pieces each size

Product Description

Our factory specialized in manufacturing conventional bonded abrasive products and Superabrasives tool, large O. D. Reinforced Cutting Wheels, Vitrified bond Crankshaft Grinding Wheels, Gear Grinding Wheels, Resin Cut-off and Grinding Discs, Hybrid bond Diamond & CBN Wheels, Precision Cut-off Wheels etc for industrial application.

We produce big quantity of CBN grinding wheels for tissue knife.

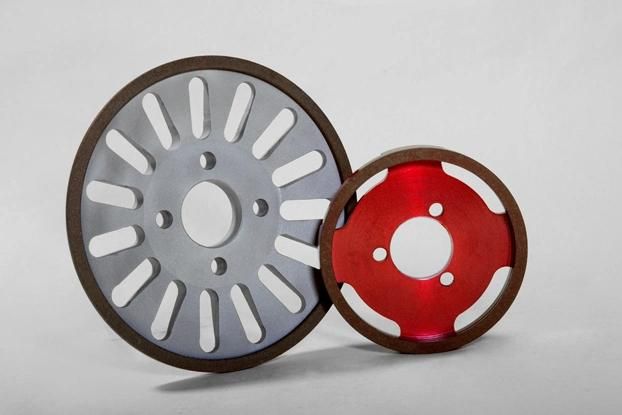

Resinoid bonded grinding wheel is made by bonding diamond grit together with the use of a resinoid bond. As resinoid bond, those of the phenol resin type and thepolyimide resin type are used, Hitherto binders of the phenol resin type were commonly used.

Polyimide wheel is recommended for heavy grinding and creep feed grinding

Applications:
Precision Grinding
Cylindrical, centerless, surface and internal grinding of carbide tools, cutters, dies, gages, etc.
Grinding chip breaker grooves
Grinding threads in carbide taps and gages
Sharpening carbide reamers, drills inserted tooth milling cutters, etc.

Cut-Off and Slotting
Cutting sintered carbide to size where fast cutting is important

Off Hand Grinding
Sharpening single point tools where fast cutting action is required.
Grinding new carbide single point tools on a production basis.

Resinoid CBN Wheels

Applications:
Hardedned ferrous materials (HRC 45 and harder)
Alloy Steels: 1055, 4140, 4340, 8620, 52100
Tool Steels: M-2, M-42, T-15, O-2, A-2, D-2, S-5

Chilled Cast Iron
High temperature alloys (HRC 35 and harder)
Nickel-base alloys: Inconel, Rene, Monel, Incoloy, Waspaloy
Cobalt-base alloys: Stellite, Colmonoy, Wallex

CBN wheels for resharpening the Blades for
Paper, plastics, metal, wood, steel, foodstuffs,
Clothes, etc.
