• Model NO.：Dia 30mm-200mm
• Product Name：Grinding Rod
• Process：Forged & Rolled
• Service：Free Samples
• Heat Treatment：Quenching+Tempering
• Hardness：45-60HRC
• Breakage Rate：<1%
• Impact Toughness：>12ak.J,Cm^2
• Weight：Depend on The Model
• Quality Control：Professional Inspection
• Advantage：Long Service Life & Good Wear Rate
• Transport Package：Packing in Bundles
• Specification：45#, 50Mn, 60Mn, 65Mn, B2, B3, BL, BG
• Trademark：ShengYe
• Origin：Shandong, China
• HS Code：72284000
• Production Capacity：100, 000 Tons

Overview Product Description

Product Parameters

1. The diameter and length can be tailored according to customers' rod mills;
2. Grinding Steel Rod chemical composition is as following chart:

NameCMnSiSPCrMoNiCuSY-09-40Cr0.37-0.440.50-0.800.17-0.370.35max0.35max0.80-1.10-0.03max0.03maxSY-10-42CrMn0.38-0.450.50-0.800.17-0.370.35max0.35max0.90-1.200.15-0.250.03max0.03maxSY-04-65Mn0.62-0.750.90-1.200.17-0.370.35max0.35max0.25max-0.25max0.25maxSY-05-B20.75-0.850.70-0.900.17-0.350.35max0.35max0.40-0.600.15max0.25max0.25maxSY-06-B30.50-0.650.40-1.001.35-1.850.35max0.35max0.80-1.200.15max0.25ax0.25maxSY-07-BL0.55-0.750.65-0.850.15-0.350.35max0.35max0.70-1.200.15max0.15max-SY-08-BG0.90-1.050.35-0.950.15-0.350.35max0.35max1.0-1.700.15max0.25max0.25max



Application Area

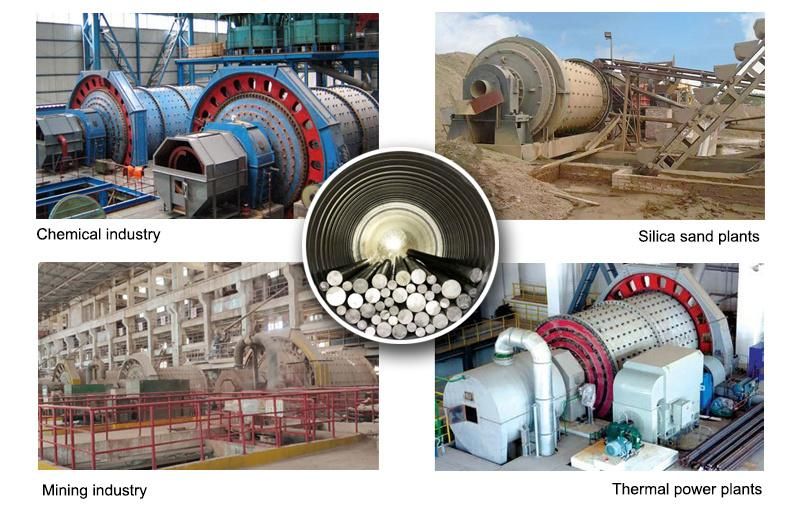

Grinding steel rod is mainly used in mining industries, quartz sand plants, chemical plant, coal slurry power plant, potash feldspar or silica sand plant and other rod mill equipment.

Company Profile

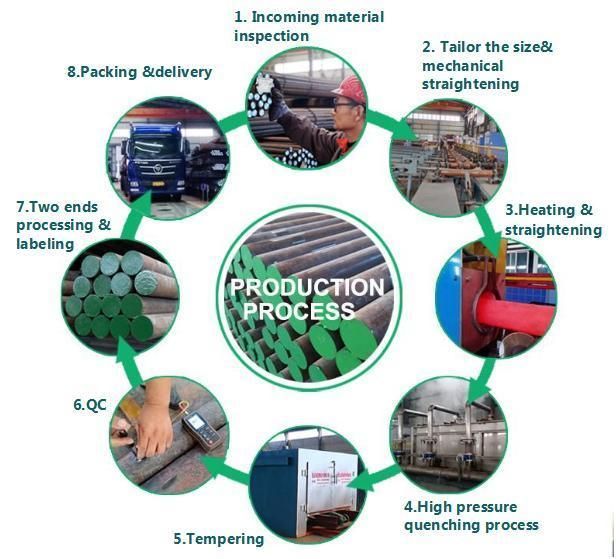

Production Process

Our innovative production technology and high-quality materials ensure that the grinding rods we produced are superior to to other peers, the high hardness of ShengYe rods can reach 45-60HRC, and wear longer, breakage lower than 1%.



Quality Assurance

FAQ

1. What kind of grinding media do you produce?
Our main products include fogred steel ball, grinding steel rod, casting grinding ball, casting cylpebs.
2. Where do you sell your products?
Our customers come from more than 40 countries where grinding media is in high demand such as USA, Japan, Republic of Korea, Malaysia, India, Mongolia, Peru, Spain, Mexico, Argentina, Morocco, Ghana, Zambia, Congo, etc. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.
3. What's your warranty?
1 year.
4. Can you provide free sample?
Yes, we can prepare free samples within 3-5 working days and usually the customer paid the freight cost.
5. How long is your delivery time?
It depends on the quantity of the order. For example, if you place an order of 1000 tons 70mm grinding rods, our lead time is 20-25 days.
6. What certificate do you have?
We are TUV ISO900, ISO14001, ISO45001 certified enterprise, we could also provide customer the SGS test report by third party.
