• Model NO.：Chemshun Ceramics
• Customized：Customized
• Item：Zirconia Grinding Balls
• Materials：Zirconia
• Type：High-Zironia
• Density：5.9-6.35 g,cm3
• Diameter：0.05mm-50mm
• Grinding Situation：Dry Grinding , Wet Griding
• Features：High Hardness, High Density and Anticorrosion
• Field：Food , Cosmetic , Pigment , Ink , Paints
• OEM：Accept
• Transport Package：by Bags, Then Fasten on Pallet.
• Specification：D1~D70mm
• Trademark：pingxiang chemshun ceramics
• Origin：P. R. China
• HS Code：69091200
• Production Capacity：25000ton,Year

Basic Info.

Model NO. Chemshun Ceramics Customized Customized Item Zirconia Grinding Balls Materials Zirconia Type High-Zironia Density 5.9-6.35 g/cm3 Diameter 0.05mm-50mm Grinding Situation Dry Grinding , Wet Griding Features High Hardness, High Density and Anticorrosion Field Food , Cosmetic , Pigment , Ink , Paints OEM Accept Transport Package by Bags, Then Fasten on Pallet. Specification D1~D70mm Trademark pingxiang chemshun ceramics Origin P. R. China HS Code 69091200 Production Capacity 25000ton/Year

Product Description

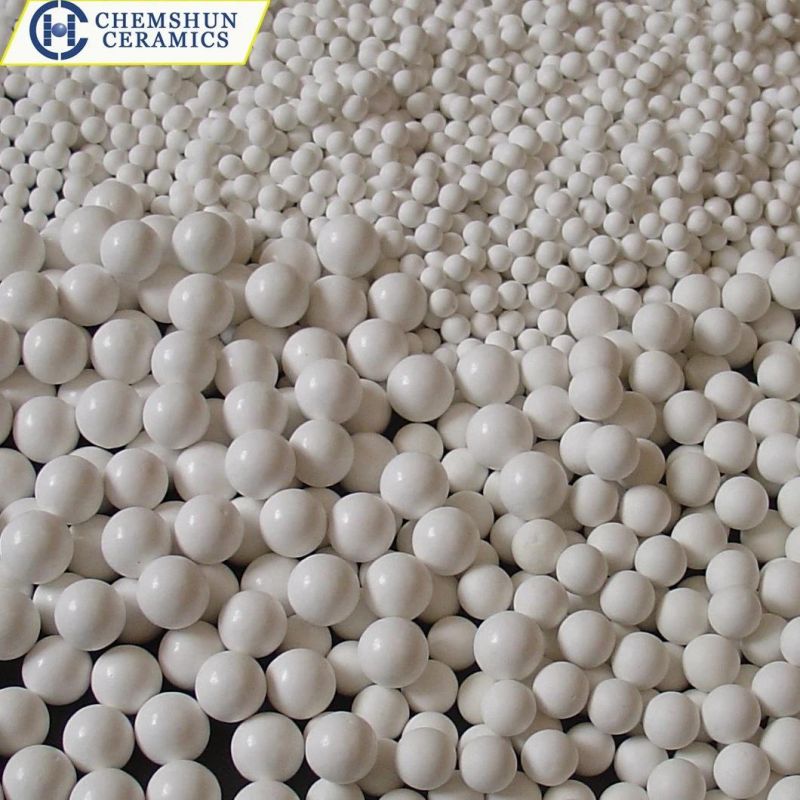

Size 30mm Zirconia Ball Media for Grinding High Refined Material

- High crushing strength and fracture durability superior wear resistance which has no any break under high speed impace
- Smooth surface , good sphericity
- High density and excellent grinding efficiency for grinding materials down to Nano size
- Significant cost and waste reduction

Chemshun Zironia Ceramic Beads :

Properties	Unit	1- Ce-TZP	2-Y-TZP
Composition	Wt%	78~80% ZrO2 20~22% CeO2	94.6% ZrO2 5.2% Y2O3
Specific Density	G/cm3	≥6.2	5.95-6.0
Moh's Hardness	Grade	≥9	> 9.0
Elastic Modulus	Gpa	200	205
Thermal Conductivity	W/m,k	3	3
Fracture Toughness	Mpam1/2	≥8.5	7-10
Grain Sizes	µm	<=0.5	0.1--55
Thermal Expansion Coefficient (20~400 ºC)	10*10-6/ºC (20-400)	9	11

Zirconia Ceramic Balls Application :

It is suitable for grinding and dispersion of ultra-fine material such as electronic ceramics, magnetic materials, high purity ceramics material such as alumina oxide, silicon oxide, zirconium silicate and titanium dioxide : foodstuffs , cosmetic and pigment , inks, paint and coating materials
