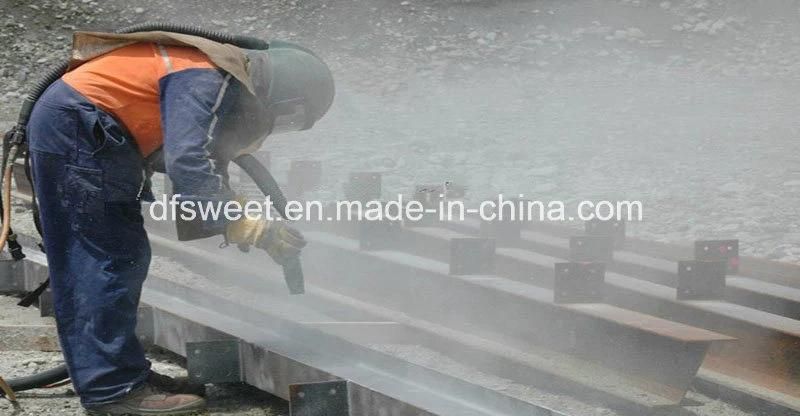

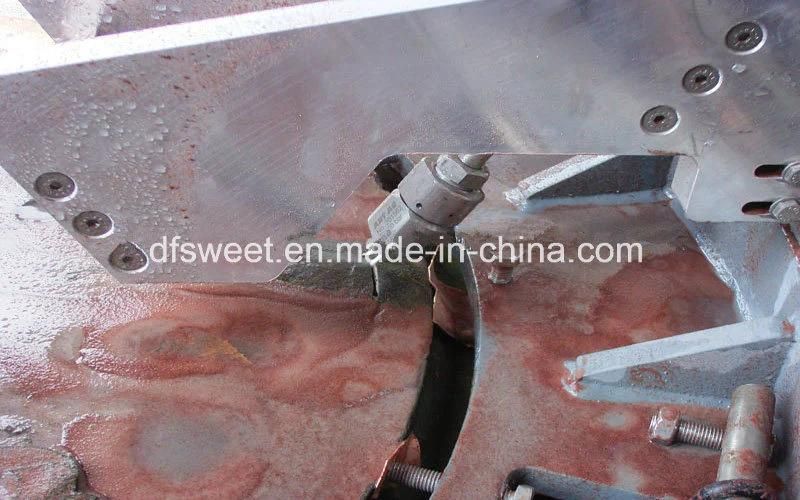

Red Garnet Sand for Sandblasting and Waterjet Cutting
Dengfeng Sweet Abrasives Co., Ltd.- Natural Abrasive Type:Garnet
- Artificial Abrasive Type:Corundum Abrasives
- Application:Metal Parts
- Function:Surface Finish
- Source:Natural Abrasives
- Particle Size:Abrasive
Base Info
- Model NO.:swt 20
- Hardness:Superabrasive
- Garnet:98%
- Moh Hardness:7.5 +
- Color:Wine Red
- Usage:Polishing, Sand Blasting, Water Cutting

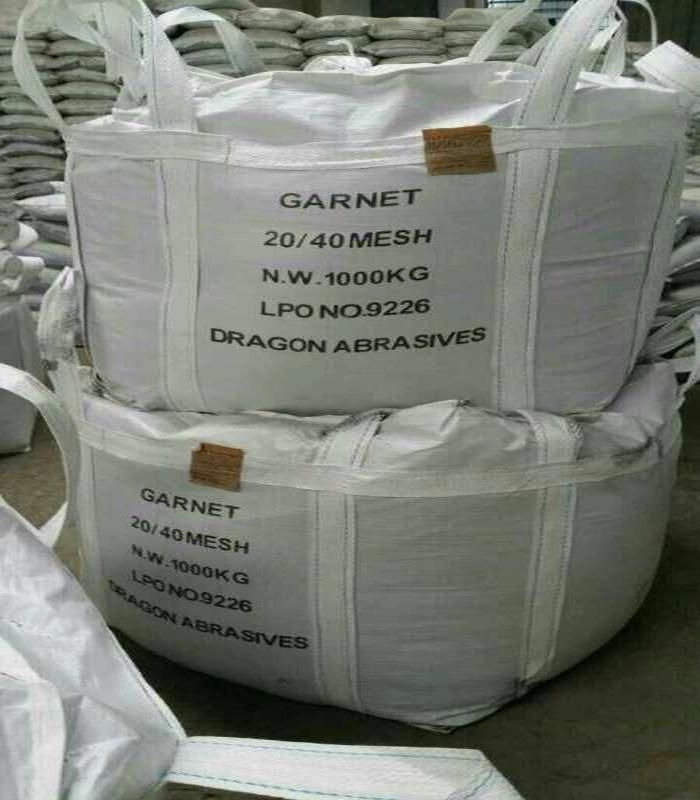

- Transport Package:25kg P. P Bag + Jumbo Bag, 1mt Jumbo Bag.
- Specification:12,20#, 20,40#, 30,60#, 80#, 120#, etc
- Trademark:Sweet
- Origin:Dengfeng, Henan
- HS Code:25132000
- Production Capacity:800 Tons Per Month
Description
Basic Info.
Model NO. swt 20 Hardness Superabrasive Garnet 98% Moh Hardness 7.5 + Color Wine Red Usage Polishing, Sand Blasting, Water Cutting Transport Package 25kg P. P Bag + Jumbo Bag, 1mt Jumbo Bag. Specification 12/20#, 20/40#, 30/60#, 80#, 120#, etc Trademark Sweet Origin Dengfeng, Henan HS Code 25132000 Production Capacity 800 Tons Per MonthProduct Description
Red Garnet Sand for Sandblasting and Waterjet CuttingThe specific gravity of garnet is 3.96g/cm3. The main inner structure of garnet is crystallized iron and alumina. It is suitable for free lapping or being used for making organic bonded abrasive tools. It also has non-abrasive application.
Garnet Chemical Composition (Typical - wt%)
Silica SiO2 37.2%
Iron (Fe2O3+FeO) 33.22%
Alumina Al2O3 20.59%
Magnesium MgO 6%
Calcium CaO 2%
Manganese MnO 0.64%
Titanium TiO2 0.25%
Garnet Physical Characteristic
Specific Gravity 4.10 g/cm3
Hardness 7.5+ (moh Scale)
Chloride Content Less than 25 ppm
Bulk Density 145 lb / ft3
Colour Reddish Pink, Reddish Brown
Acid Solubility (HCL) Less than 1%
Conductivity Less than 125 μs /cm
Melting point 1,300°C
Grain Shape Sub angular
Garnet Mineralogical Composition (Typical)
Almandite Garnet 93 - 98%
Ilmenite Less than 2%
Quartz (free silica) Less than 1.0%
Others Less than 0.5%
