• Model NO.：chemshun media
• Customized：Customized
• Item：Zirconia Grinding Balls
• Materials：Zirconia and CEO2
• Type：High-Zironia
• Diameter：1mm-70mm
• Grinding Situation：Dry Grinding , Wet Griding
• Feature：High Hardness, High Density and Anticorrosion
• Application：Ball Mill, Pebble Mill ,
• Field：Ceramic,Metallurgy, Glass, Porcelain, Enamel
• OEM：Accept
• Transport Package：by Bags, Then Fasten on Pallet.
• Specification：D1~D70mm
• Trademark：pingxiang chemshun ceramics
• Origin：P. R. China
• HS Code：69091200
• Production Capacity：10000 Ton,Year

Basic Info.

Model NO. chemshun media Customized Customized Item Zirconia Grinding Balls Materials Zirconia and CEO2 Type High-Zironia Diameter 1mm-70mm Grinding Situation Dry Grinding , Wet Griding Feature High Hardness, High Density and Anticorrosion Application Ball Mill, Pebble Mill , Field Ceramic,Metallurgy, Glass, Porcelain, Enamel OEM Accept Transport Package by Bags, Then Fasten on Pallet. Specification D1~D70mm Trademark pingxiang chemshun ceramics Origin P. R. China HS Code 69091200 Production Capacity 10000 Ton/Year

Product Description

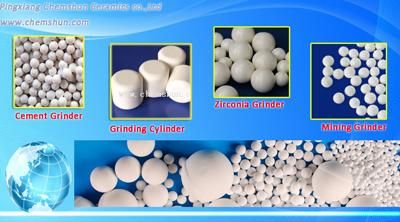

Zirconia Ceramic Beads as Mill Grinding Media

Description:
With the properties of naver aging and never broken , Chemshun Ce-TZP zirconia media has a very long uselife , and it's abrasion is smallest of all zirconia media with excellent wear -resistance performance , so it is widely used in grinding and the factories of inks , paer, paints, metal and non-metallic minerals etc.



Chemshun Ce-TZP zirconia grinding balls technical data:

Properties	Unit	Data
Composition	Wt%	78~80% ZrO2 20~22% CeO2
Bulk Density	Kg/L	3.8(Ф7)
Specific Density	G/cm3	≥6.2
Moh's Hardness	Grade	≥9
Vickers Hardness	HV	≥1100
Elastic Modulus	Gpa	200
Thermal Conductivity	W/m,k	3
Fracture Toughness	Mpam1/2	≥8.5
Grain Sizes	µm	<=0.5
Thermal Expansion Coefficient (20~400 ºC)	10*10-6/ºC (20-400)	9

Application
This product are featured by high density and hardness, low wear lost, corrosion-resistance etc. They are the perfect high-efficient grinding media for milling glaze/frit, pigment, ceramic materials, and various mine ore powder, they are using ceramics, cements, paints, refractories, inorganic mineral powders etc...

Applied for dry grinding , wet grinding ,mineral grinding ,  quartz grinding ,  lineston grinding ,  iron ore grinding , cement grinding , ceramics plants grinding , pigment grinding , mineral ore grinding , breaking platns .

Applied for ball mill,grinding machine , pot mill , librating mill , pebble mill , Attrition Mill,rod mill , grinding mill , grinding machine , ball grinding mill

Size:1mm, 3mm, 6mm, 9mm, 13mm, 16mm, 20mm, 25mm, 30mm , 40mm, 50mm, 60mm, 70mm,95mm
