Pigment Grinding Mill Horizontal Bead Mill Paint Making Machine Nano Grinding
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type：Mill
- Power Source：Electricity
- Object：Bead
- Application：Chemical
- Disc(Wheel) Type：Grinding Disc
- Material：Stainless Steel or Pure Zirconia
Base Info
- Model NO.：EDW
- Working Style：High-speed universal
- Disc Diameter：230mm
- Variable Speed：With Variable Speed
- Application Industry：Offset Printing Ink, Inks, Paints, Dope
- Grinding Medium：Pure Zirconia Ball
- Usage：Industrial
- Product Type：Liquid and Powder
- Bearing：NSK
- Motor：Siemens
- Feeding Pump：Diaphragm Pump Ingersoll Rand
- Shaft Sealing：Large Flange Mechanical Seal, Bear Pressure Hig
- O-Ring：DuPont
- Transport Package：Wooden Case
- Specification：EDW-5------EDW-100
- Trademark：ELE
- Origin：Shanghai, China
- HS Code：879820090
- Production Capacity：200-2000L
Description
Model
Cavity
Volumn(L)
Power
(KW)
Rotation speed
(rmp)
Capacity
(L/H)
Dimension
(mm)
Weight
(kg)
EDW-5
5
11
1500
30-200
1300*1050*450
640
EDW-10
10
15-30
1200
50-300
1600*1450*650
1100
EDW-15
15
30-37
1000-1500
100-500
1600*1450*650
1250
EDW-30
30
45-55
700-1200
200-1000
1650*1550*750
1600
EDW-50
50
55-75
500-800
500-2000
1900*1750*850
2100
EDW-100
100
90-110
400-700
1000-3000
2300*1950*950
3600
Note:We can do special design according to customers'need.

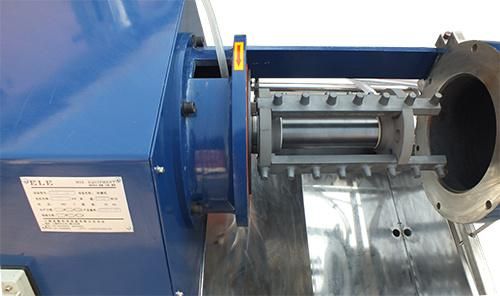

Detail Photos:
