Pesticide Grinding Mill Horizontal Bead Mill Finer Particle Size
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type：Mill
- Power Source：Electricity
- Object：Bead
- Application：Chemical
- Disc(Wheel) Type：Grinding Disc
- Material：Stainless Steel or Pure Zirconia
Base Info
- Model NO.：EBW
- Variable Speed：With Variable Speed
- Application Industry：Offset Printing Ink, Inks, Paints, Dope
- Grinding Medium：Pure Zirconia Ball
- Usage：Industrial
- Product Type：Liquid and Powder
- Bearing：NSK
- Motor：Siemens
- Feeding Pump：Diaphragm Pump Ingersoll Rand
- Shaft Sealing：German Burgmann Mechanical Seal, Bear Pressure Hig
- O-Ring：DuPont
- Transport Package：Wooden Case
- Specification：EBW-5------EBW-100
- Trademark：ELE
- Origin：Shanghai, China
- HS Code：879820090
- Production Capacity：200-2000L
Description
Model
Cavity
Volumn(L)
Power
(KW)
Rotation speed
(rmp)
Capacity
(L/H)
Dimension
(mm)
Weight
(kg)
EBW-5
5
5.5
2500
200
1300*1050*450
640
EBW-15
15
18.5
1500
500
1600*1450*650
1100
EBW-20
20
22
1230
800
1600*1450*650
1250
EBW-30
30
30
1060
1200
1650*1550*750
1600
EBW-50
50
45
820
2000
1900*1750*850
2100
EBW-100
100
75
660
3000
2300*1950*950
3600
Note:We can do special design according to customers'need.

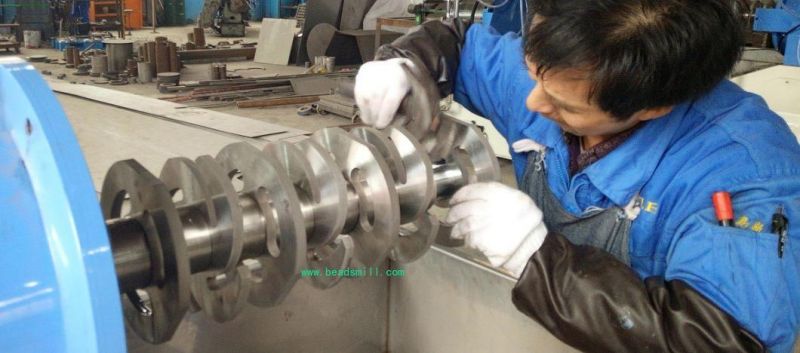

Detail Photos:
