Popular Glass Deep Process - Straight Glass Edge Grinding Machine in Hot Sale
Qingdao Toyo Industry Co., Ltd.- Type：Angle Grinder
- Power Source：Electricity
- Object：Milling Cutter
- Application：Glass Grinding Machine
- Disc(Wheel) Type：Grinding Disc
- Material：Metal and Steel
Base Info
- Model NO.：TYTC-G7,TYTC-G8
- Working Style：High-speed universal
- Disc Diameter：Customized
- Variable Speed：Without Variable Speed
- Power：13kw
- Minimum Processing Size：40*40mm
- Maximum Processing Size：2000*2000 mm
- Transport Package：Container
- Specification：4100*950*1900mm
- Trademark：Toyo
- Origin：China
- HS Code：8464201000
- Production Capacity：10000pieces,Year
Description

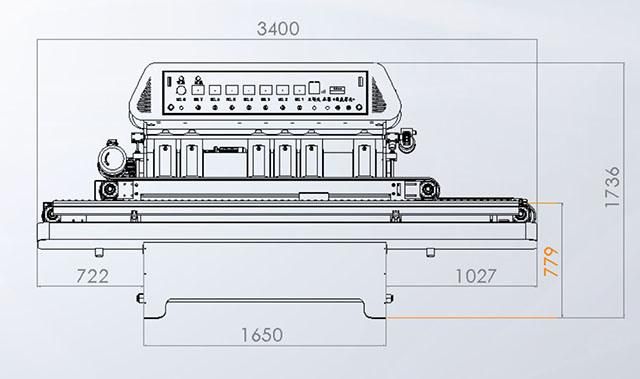

Horizontal Straight Edge Grinding MachineTechnical Parameters TYTC-G7 TYTC-G8 Dimensions 3400*1000*1730mm 3400*1000*1730mm Net Weight 1600kg 1600kg Glass Processing Thickness 3-8mm 3-8mm Chamfer Angle 45-degree 45-degree Mini Glass Size 40*40mm 40*40mm Max Glass Size 1600*1600 1600*1600 Max Glass Size with Extension Tables 2440*3000 2440*3000 Speed 0-4m/min 0-4m/min Voltage 380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase 380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase Power 13kw 14.5kw Number of the Motor Head 7 8
Layout of the wheels

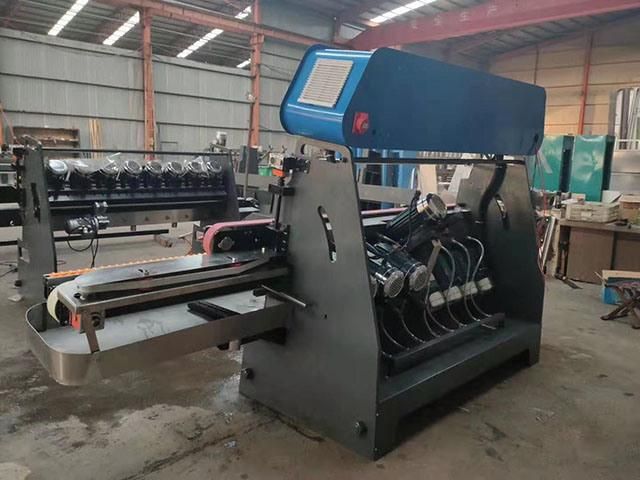

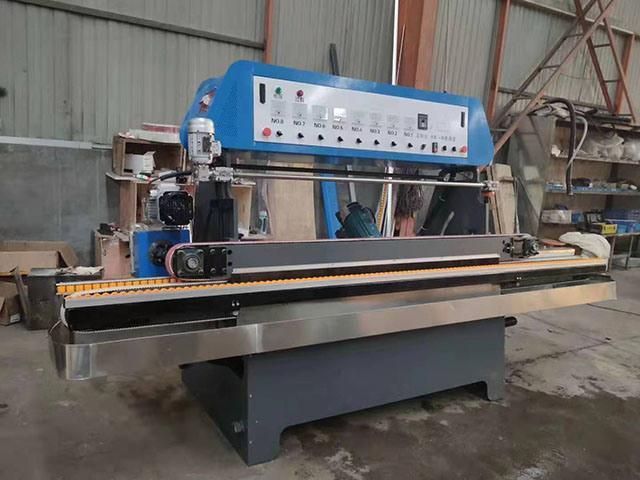

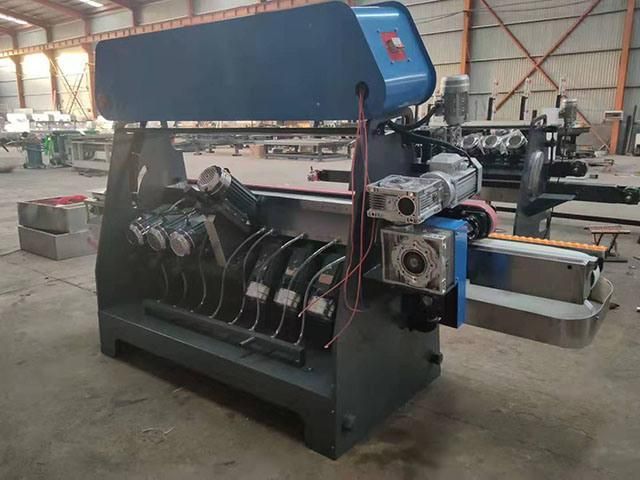

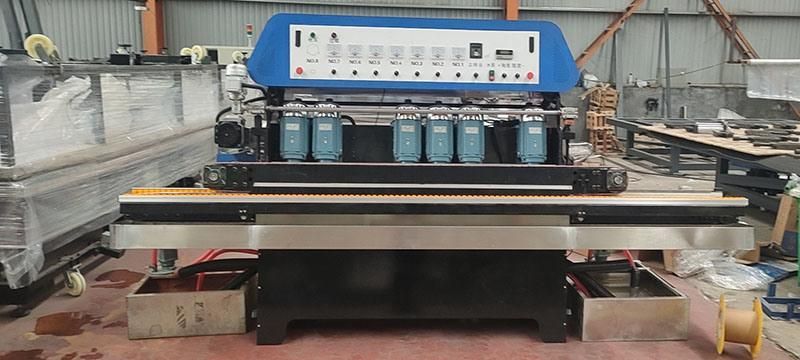

Machine Pictures
Waiting for your inquiry!
Don't hesitate to contact me for any questions you have!
220V, 60HZ, 3 Phrase
220V, 60HZ, 3 Phrase
Layout of the wheels
| Position 1 | Position 2 | Position 3 | Position 4 | Position 5 | Position 6 | Position 7 |
| Diamond Wheel | Resin Wheel | BD Buff wheel | Resin Wheel | BD Buff wheel | Resin Wheel | BD Buff wheel |
Machine Pictures
