• Model NO.：B52-D1, 1,8 Dia Shank,
• Trademark：INGLAU
• Origin：China
• HS Code：68042210
• Production Capacity：50, 000, 000PCS,Month

Basic Info.

Model NO. B52-D1, 1/8 Dia Shank, Trademark INGLAU Origin China HS Code 68042210 Production Capacity 50, 000, 000PCS/Month

Product Description

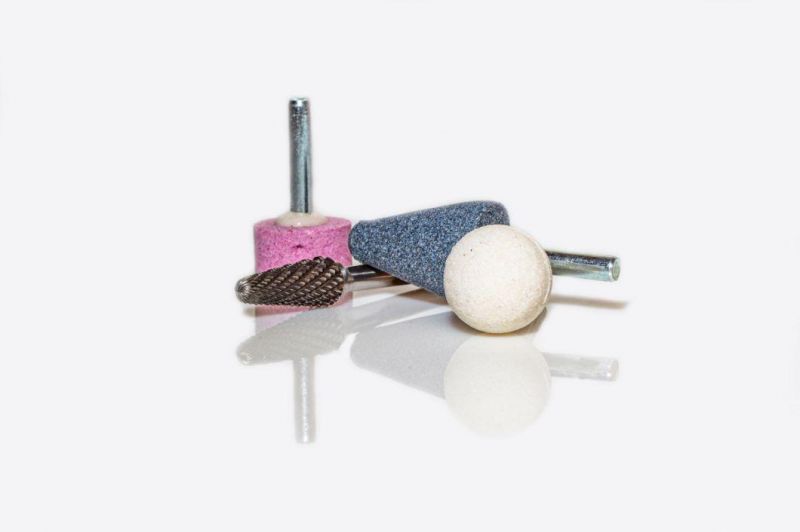

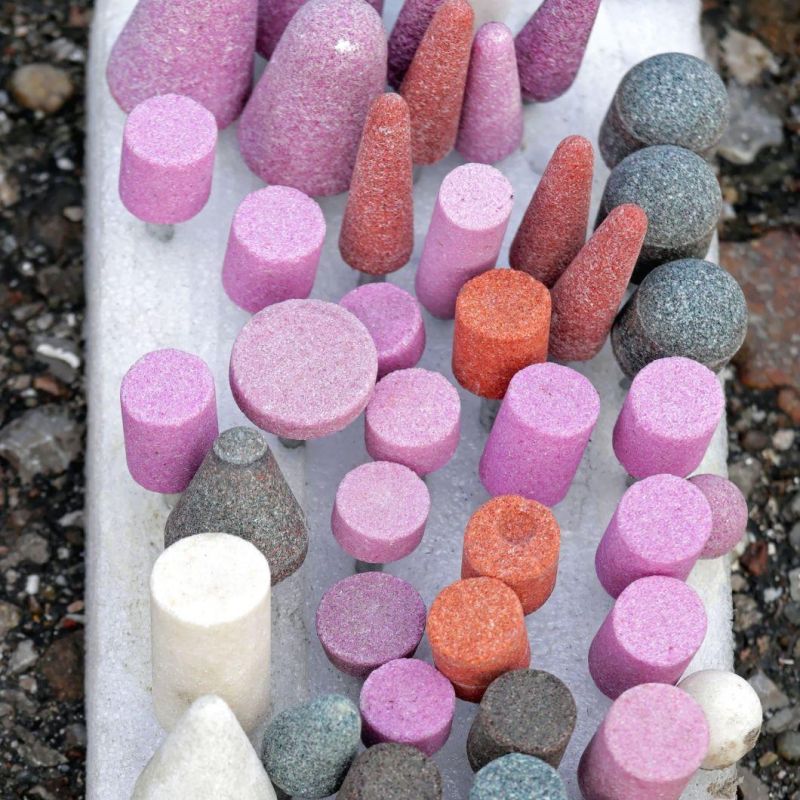

INGLAU mounted points are top-notch grinding tools with a long service life and high removal rates.
For grinding, deburring and finishing on stainless steel, aluminum, and exotic materials.

»Mounted points made from pink aluminum oxide for steel and cast steel
»For the preparation of weld seams, processing of weld seams
»Rough machining to fine processing
»For deburring and buffing


Ø 3mm shank Group B
ISO Designation	B41	B42	B43	B44	B45	B46	B47
d1 x b(mm)	16 x 16	13 x 19	6 x 8	6 x 10	5 x 8	3 x 8	3 x 4
ISO Designation	B51	B52	B53	B54	B55	B61	B62
d1 x b(mm)	11 x 19	10 x 19	8 x 16	6 x 13	3 x 6	19 x 8	13 x 10
ISO Designation	B63	B65	B68	B71	B72	B81	B82
d1 x b(mm)	6 x 5	3 x 3	6 x 2	16 x 5	13 x 4	19 x 8	13 x 6
ISO Designation	B84	B91	B92	B93	B94	B95	B96
d1 x b(mm)	8 x 5	13 x 16	6 x 6	5 x 5	4 x 2	3 x 5	3 x 6
ISO Designation	B97	B98	B101	B102	B103	B104	B105
d1 x b(mm)	3 x 10	2 x 6	16 x 18	16 x 13	16 x 5	8 x 10	6 x 6
ISO Designation	B106	B111	B112	B113	B114	B115	B121
d1 x b(mm)	3 x 2	11 x 18	10 x 13	6 x 6	6 x 10	2 x 3	13
ISO Designation	B122	B123	B124	B125	B131	B132	B135
d1 x b(mm)	10	5	3	6	13 x 13	10 x 13	6 x 13
