• Model NO.：Dia17mm-130mm

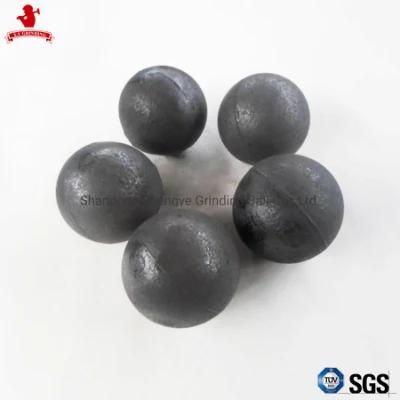

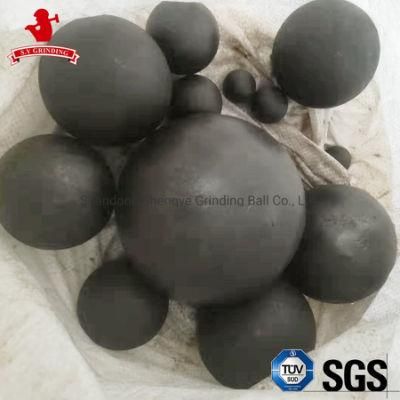

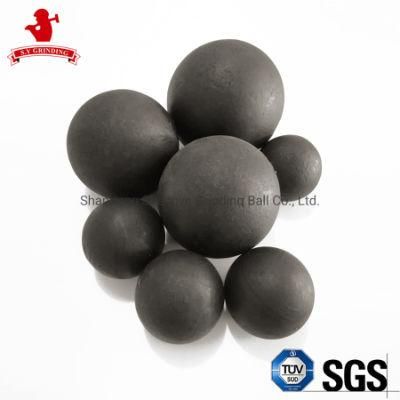

• Product Name：High Chrome Mill Ball
• Process：Casting
• Certificate：TUV ISO 9001 , BV , SGS
• Service：Free Samples
• Heat Treatment：Quenching + Tempering
• Hardness：55-66HRC
• Breakage Rate：<1%
• Impact Toughness：>4ak.J,Cm^2
• Transport Package：Steel Drums & Flexible Container Bags
• Specification：ZQCr1, ZQCr10, ZQCr17, ZQCr28
• Trademark：ShengYe
• Origin：Shandong, China
• HS Code：73261100
• Production Capacity：100000

NameDesignationCSiMnCrSPMoHigh-Cr- ball/Cylpebs

ZQCr28

2.0-3.5≤1.0≤1.528-30≤0.08≤0.06≤1.0

ZQCr17

2.0-3.5≤1.0≤1.517-18≤0.08≤0.06≤1.0

ZQCr10

2.0-3.5≤1.0≤1.510-12≤0.08≤0.06≤1.0Low-Cr-ball/Cylpebs

ZQCr1

2.0-3.5≤1.0≤1.51-3≤0.08≤0.06≤1.0

High chrome mill ball mechanical propety

NameDesignation

Hardness(HRC)

/Heat treatment

Hardness(HRC)

/Cast

Impact Value AK.J/cm2Microstructure

Wear Rate

(g/t cement)

Breakage rate(%)High-Cr-ball/Cylpebs

ZQCr28

55-65≥50≥4.0M+C≤25≤0.5

ZQCr17

60-65≥50≥4.0M+C≤25≤0.5

ZQCr10

60-66≥50≥4.0M+C≤30≤0.5Low-Cr-ball/Cylpebs

ZQCr1

 ≥45≥4.0P+C ≤1.0

                                                                              About us
Shandong Shengye Grinding Ball Co., Ltd specializes in the production of mill ball for ball mill. Staff are trained and selected by strict overseas technology . The quality of steel ball is consistent and the specifications are complete. The annual output of diameter DIA 20MM-DIA 150MM mill ball is 100000 tons.
At present, most of the grinding media used in cement plants are mainly high chrome mill ball. With the continuous development of the cement grinding process, the specific surface area and fineness requirements of the cement are more and more favorable, which is especially important for the cement plants to correctly select the grinding meida.
Our company's high chrome mill ball with hardness above 60HRC and impact value ≥4.0J/cm2, The high wear resistance not only improves the grinding efficiency, reduces the times of stopping mill, but also prolongs the clearance period and reduces the labor intensity of the workers. It is important to increase mill output, ensure abrasive quality, reduce power consumption and consumption of the high chrome mill ball.

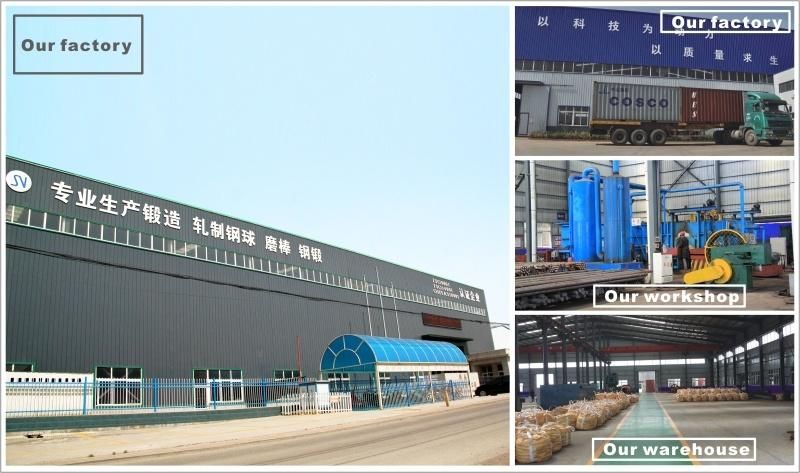

                                                                        Testing Equipment

Our company has a first-class laboratory, and equipped with advanced testing equipment, such as spectrometer, hardness tester, microscope, drop tester, impact tester, laser cutting machine, etc.,to ensure that our high chrome mill ball from raw material into the factory to the prduction process to the shipment of every link quality control assurance and traceability.




                                                                        Packing and Delivery

1. Transpotation
Ocean shipping ( Or Customers designated transportation mode.)

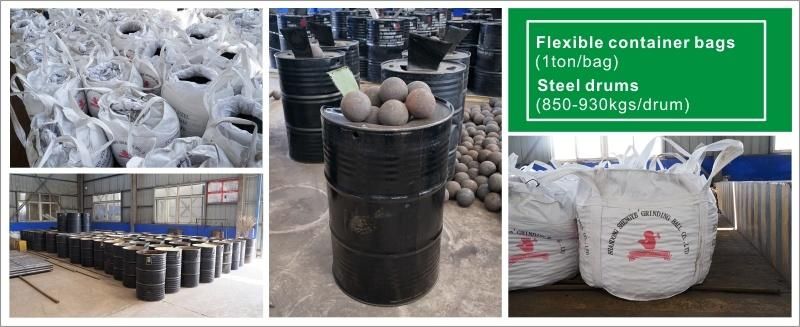

2. Packing Way
Generally our chrome ball was packed in 2 ways:
a. steel drums (850-930kgs/drum)
b. flexible container bags(1ton/bag)

3.Delivery Time
Witnin 15-20 days after received the payment or LC at sight. (Generally it is 5-10 days if the chrome ball is in stock. or it is 15-20 days if the chrome ball is is not in stock, it is according to quantity.)

4. Payment Terms
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,
balance before shippment.


                                                                        Our Service

1.Free samples
we could offer free chrome ball samples, you only need to pay the freight cost.

2. After-sales service
Go abroad to visit regular customers several times every year;
Attend national exhibitions;
Pay return visit once a week after the chrome is received.
3.Sales areas
Our chrome steel ball is exported to over 30 countries and regions including USA, Republic of Korea, Japan, Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.

                                                                           Certificate Show

Our high chrome mill ball is passed the TUV ISO9001,  ISO14001, OHSAS 18001, SGS, BV ect. Certificates



Any question about the high chrome mill ball, pls feel free to contact us as below:
