• Model NO.：DIA 20mm-150mm
• Customized：Customized
• Product Name：Grinding Steel Ball
• Process：Forging
• Certification：TUV ISO9001, ISO14001, ISO45001, SGS
• Heat Treatment：Quenching+Tempering
• Breakage Rate：<0.5%
• Hardness：55-66HRC
• Price：Reasonable
• Quality Control：Professional Inspection
• Advantage：Long Service Life & Good Wear Rate
• Standard：Client Specification
• Dimensions：Different Model
• Application：Ball Mill, Sag Mills, Vertimills, Mineral Process
• Transport Package：Steel Drums & Flexible Container Bags
• Specification：45#, 50Mn, 60Mn, 65Mn, B2, B3, BL, BG
• Trademark：ShengYe
• Origin：Shandong, China
• HS Code：73261100
• Production Capacity：100000

NameCMnSiSPCrSY-01-45#0.42-0.480.50-0.800.17-0.370.05max0.05max0.15maxSY-02-50Mn0.48-0.560.65-1.000.17-0.370.05max0.05max0.15maxSY-03-60Mn0.57-0.650.70-1.100.17-0.370.05max0.05max0.25maxSY-04-65Mn0.62-0.750.90-1.200.17-0.370.05max0.05max0.25maxSY-05-B20.75-0.850.70-0.900.17-0.350.05max0.05max0.40-0.60SY-06-B30.50-0.650.40-1.001.35-1.850.05max0.05max0.80-1.20SY-07-BL0.55-0.750.65-0.850.15-0.350.05max0.05max0.70-1.20SY-08-BG0.90-1.050.35-0.950.15-0.350.05max0.05max1.0-1.70

Grinding forged steel ball Mechanical Propety

NameImpact Value AK.J/cm²Dropping test(sm)

Hardness

Ф25-50(1"-2")Ф60-90(2.5"-3.5")Ф100-150(4"-6")SurfaceCoreSurfaceCoreSurfaceCoreSY-01-45#≥12≥20,000≥55≥38≥50≥35≥45≥25SY-02-50Mn≥12≥20,000≥56≥40≥56≥35≥50≥30SY-03-60Mn≥12≥20,000≥58≥45≥58≥38≥52≥35SY-04-65Mn≥12≥20,000≥60≥52≥60≥42≥53≥36SY-05-B2≥12≥20,000≥60≥60≥60≥54≥55≥48SY-06-B3≥12≥20,000≥60≥60≥60≥54≥58≥53SY-07-BL≥12≥20,000≥60≥60≥60≥54≥58≥55SY-08-BG≥12≥20,000≥60≥60≥60≥60≥60≥60
Company Profile

SHANGDONG SHENGYE GRINDING BALL CO.,LTD  specializes in the production of grinding steel ball for ball mill. Staff are trained and selected by strict overseas technology . The quality of products is consistent and the specifications are complete. The annual output of diameter DIA 20MM-DIA 150MM grinding steel ball is 100000 tons.

Due to the application of internationally advanced technology and manufacture experience ,our grindingsteel balls have the advantages of rubbing endurance, crashing tolerance and roundness persistence ,compared to other products in this field. We record the data for our products, follow up customers and drop in services at calling to solve customers' uncertainties.




Production Processing




Why choose us

1. 20 years reputation guarantee;
2. Advanced manufacturing techniques and complete testing equipment;
3. Adequate and rich range of material stock
4. Fast delivery
5. Quality assurance
6. Overall service system



Quality assurance

1.We only purchase directly from standard steel groups in China.
2.10 advanced automatic production lines with an annual output of 100,000t. Covering the specifications of DIA15-150 mm and all materials to meet customers' different requirements. All of the operators are well trained and have more than 5 years of experience in forging ball manufacturing.
3.We adopt unique complex heat treatment craft. By repeated quenching, the quenching liquid temperature control, the continuous tempering, etc., the steel ball has better performance in the volume hardness uniformity and the overall wear resistance.

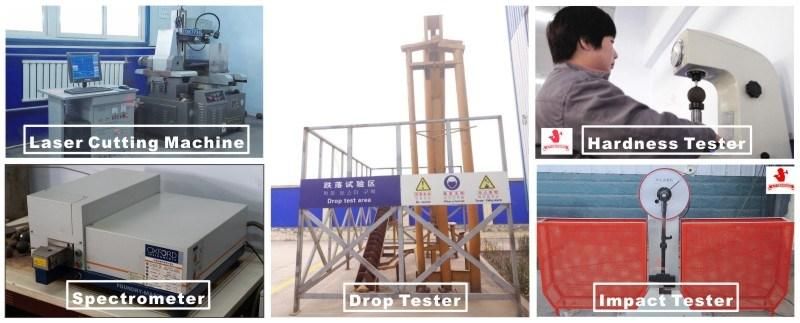

4.World-class laboratory and complete test equipment enable us to make tests of chemical elements, mechanical properties, microstructure and so on.
5.We have passed international and industrial certifications such as TUV ISO900, ISO14001, Iso45001, etc and also passed the double certification of SGS and BV as qualified factories.

Our service system

1. Customized raw material service
2. Free samples for evaluation
3. Grinding technical guidance
4. After-sales quality assurace



Packing & Delivery

1. Ocean shipping
2. Customers designated transportation mode.
3. Packing Details: A. Steel drums (850-930kgs/drum) b. Flexible container bags(1ton/bag)
4. Delivery Details: Within 15-20 days after received the payment or LC at sight.

FAQ

Q1: What is the advantage of your company?

A: We are a professional steel ball manufacturers, which have 20 years of production experience.
We also have Hi-Tech and capable production line.

Q2. In which countries are your products sold?

A: Our products are exported to over 40 countries and regions including USA, Republic of Korea, Japan, Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.

Q3: Are you trading company or manufacturer?

A: We are factory.

Q4: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock,
It is according to quantity.

Q5: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q6: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,
Balance before shippment.


If you have another question, pls feel free to contact us as below:

INA / MANAGER
SHANDONG SHENGYE GRINDING BALL Co., Ltd
