• Model NO.：SY19080716
• Customized：Customized

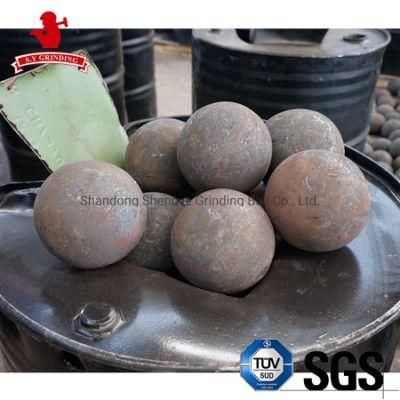

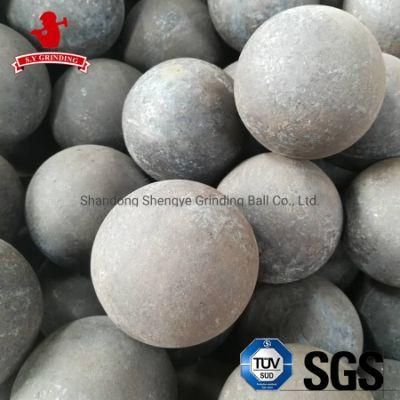

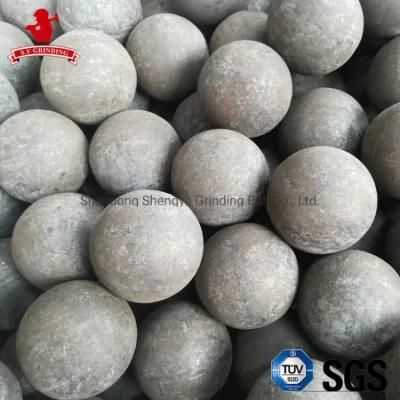

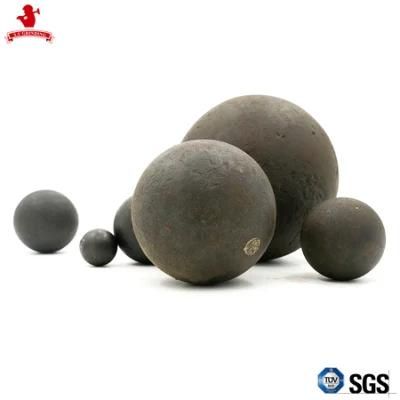

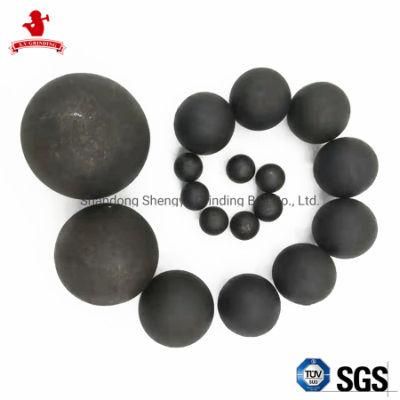

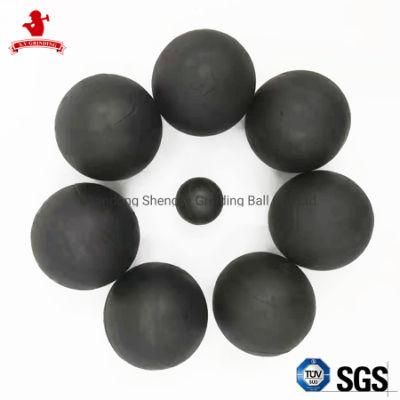

• Product Name：Forged Steel Ball
• Process：Forged, Hot Rolled
• Certificate：TUV ISO 9001 , BV , SGS
• Service：Free Samples
• Heat Treatment：Quenching + Tempering
• Hardness：50-65HRC
• Breakage Rate：<1%
• Impact Toughness：>12ak.J,Cm^2
• Transport Package：Steel Drums & Flexible Container Bags
• Specification：45#, 50Mn, 60Mn, 65Mn, B2, B3, BL, BG
• Trademark：ShengYe
• Origin：Shandong, China
• HS Code：73261100
• Production Capacity：100000

NameCMnSiSPCrSY-01-45#0.42-0.480.50-0.800.17-0.370.05max0.05max0.15maxSY-02-50Mn0.48-0.560.65-1.000.17-0.370.05max0.05max0.15maxSY-03-60Mn0.57-0.650.70-1.100.17-0.370.05max0.05max0.25maxSY-04-65Mn0.62-0.750.90-1.200.17-0.370.05max0.05max0.25maxSY-05-B20.75-0.850.70-0.900.17-0.350.05max0.05max0.40-0.60SY-06-B30.50-0.650.40-1.001.35-1.850.05max0.05max0.80-1.20SY-07-BL0.55-0.750.65-0.850.15-0.350.05max0.05max0.70-1.20SY-08-BG0.90-1.050.35-0.950.15-0.350.05max0.05max1.0-1.70

 Forged(Rolling) Steel Ball Mechanical Propety

NameImpact Value AK.J/cm²Dropping test(sm)



Ф25-50(1"-2")Ф60-90(2.5"-3.5")Ф100-150(4"-6")SurfaceCoreSurfaceCoreSurfaceCoreSY-01-45#≥12≥15000≥55≥38≥50≥35≥45≥25SY-02-50Mn≥12≥15000≥56≥40≥56≥35≥50≥30SY-03-60Mn≥12≥15000≥58≥45≥58≥38≥52≥35SY-04-65Mn≥12≥15000≥60≥52≥60≥42≥53≥36SY-05-B2≥12≥15000≥60≥60≥60≥54≥55≥48SY-06-B3≥12≥15000≥60≥60≥60≥54≥58≥53SY-07-BL≥12≥15000≥60≥60≥60≥54≥58≥55SY-08-BG≥12≥15000≥60≥60≥60≥60≥60≥60

Forged steel ball date

Nominal Diameter
(mm)Theoretical DiameterWeight per ball(KG)Average Number Of Balls per MTDiametrical Tolerance(mm)25        (1")267213,900+2.5
-1.0  30      (1.25")31.21258,00040      (1.5")41.62963,980+1.5
-1.050         (2")52.05787,73060      (2.5")62.49991,000+3.0
-1.565               67.61.270790 70      (2.75")72.81.58663080      (3.25")83.22.36742090     (3.75")93.63.371300+4.0
-2.0100        (4")98.83.964250120         (5")124.87.989125+5.0
-3.0150       (6")15313.80070

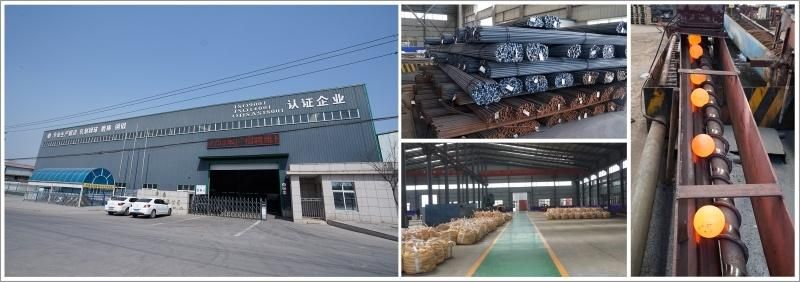

                                                                                               Company Profile

Shandong Shengye Grinding Ball Co., Ltd is located in the beautiful city: Zhangqiu District Jinan City. In China, we are a professional factory specializing in the production of forged and hot-rolled balls and alloy steel bars for the mills, with an annual output of 100,000 tons. More than 95% of the products are exported to more than 30 countries, with customers throughout Southeast Asia, Africa and Latin America. And we have a good business cooperation with the big renowned mining companies, cement plants, thermal and chemical power plants in China and worldwide, we have received favorable comments from them.
At present, the company has 10 production lines of forged and automatic hot rolling that are world advanced level, and produce grinding balls with diameters from 15 mm to 200 mm and several steel bars resistant to wear. Given that the company uses advanced technology and automated processes, the entire round bar is uniformly heated at one time to ensure each ball produced is of high quality.

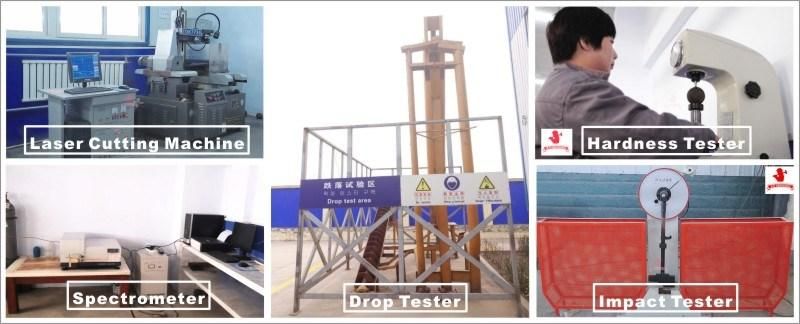

                                                                               Testing Equipment

We have a first-class laboratory and equipped with advanced testing equipment to ensure the quality:

Spectrometer--The wear resistance of forged steel ball is mainly determined by its chemical composition.
Hardness tester-- Testing the surface hardness of forged steel ball.
Laser cutting machine-- Cuting the core of forged steel ball.
Impact tester-- Ball mill with a diameter more than 6m, the larger the impact value, the lower the breaking rate.
Microscope-- Observe the density and structure of forged steel ball.
Drop tester--Testing the service life of the forged steel ball.




                                                                                        Packing and Delivery

1. Transpotation
Ocean shipping ( Or Customers designated transportation mode.)

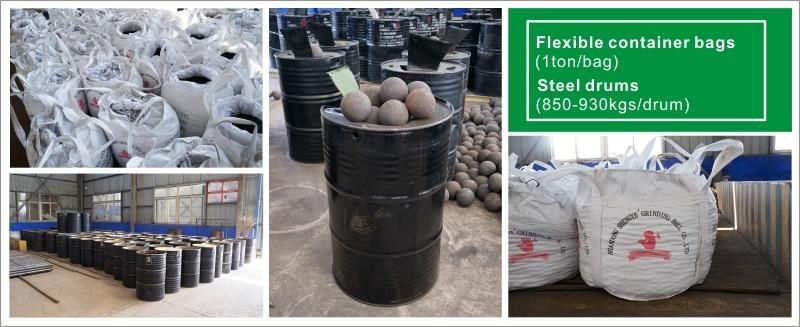

2. Packing Way

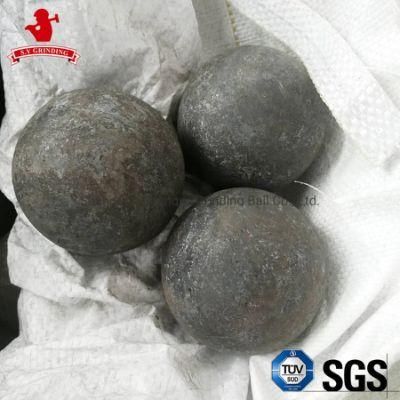

a. steel drums (850-930kgs/drum) b. flexible container bags(1ton/bag)

3.Delivery Time
Witnin 15-20 days after received the payment or LC at sight. (Generally it is 5-10 days if the forged steel ball is in stock. or it is 15-20 days if the forged steel ball is not in stock, it is according to quantity.)

4. Payment Terms
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,
balance before shippment.


                                                                                           Our Service

1.Free samples
we could offer free forged steel ball samples, you only need to pay the freight cost.

2. After-sales service
Go abroad to visit regular customers several times every year;
Attend national exhibitions;
Pay return visit once a week after the forged steel ball is received, inquire about the usage situation so that we can help to solve possible problems promptly.

3.Sales areas
Our forged steel ball is exported to over 30 countries and regions including USA, Republic of Korea, Japan, Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.


                                                                                           Certificate Show


Our forged steel ball has passed the TUV ISO9001,  ISO14001, OHSAS 18001, SGS, BV ect. Certificates





Any question about the forged steel ball, pls feel free to contact us as below:

Ina / MANAGER
SHANDONG SHENGYE GRINDING BALL CO.,LTD
 FAX:+86-531-83874078
TEL:+86-15634131183
