• Model NO.：115X22.2MM
• Circular Degree：<0.05
• Working Style：Surface Grinding
• Raw Material：Triangular Shaped Ceramic Grain
• Transport Package：as Request
• Specification：115mm x 22mm
• Trademark：Custom-made
• Origin：China
• HS Code：6804
• Production Capacity：50 000 000PCS,Year

Basic Info.

Model NO. 115X22.2MM Circular Degree <0.05 Working Style Surface Grinding Raw Material Triangular Shaped Ceramic Grain Transport Package as Request Specification 115mm x 22mm Trademark Custom-made Origin China HS Code 6804 Production Capacity 50 000 000PCS/Year

Product Description

INGLAU Resin Fibre Discs are by far the most popular coated abrasive product used in metal fabrication industry. Constructed with a heavy vulcanized fibre back, they are coated with abrasive grains and bonded with a tough, heat resistant resin. This results in a durable, cool and fast cutting action. A wide variety of grinding abrasive material is available so you can select the materials best suited to your specific applications. Usually only the diameter, grain size and mineral type need to be specified.

Features & Benefits

Electro Statically Engineered. Gives the sharpest cutting edge of the grain upward. Allows uniform grain coverage. Delivers maximum aggression.

Individually Coated. Consistent grain dispersion to the outermost edge, the most important cutting area of the disc.

Protectively Packed. Extends the life under extreme changes of atmospheric conditions.

Pre Shaped. To maintain proper assembly relationship between disc and back-up pad.

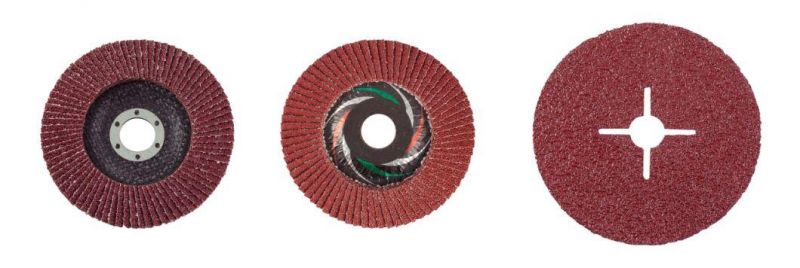

Fiber disc
Fiber disc with Ceramic
»Self-sharpening ceramic grain for extremely high material removal with little effort
»Excellent results for surface grinding of steel and stainless steel. Ideal for extreme grinding jobs such as processing high-alloy steels, titanium alloys, nickel-based alloys as well as chromium and chromium-nickel steels, brass and bronze, thanks to high load capacity.
»Very high tool life; cool grinding
»Ceramic filter discs achieve their best performance on powerful angle grinders with increased down pressure.
»Fiber discs for clamping on backing pad! The backing pads with cooling ribs are recommended for clamping the ceramic fibre discs (e.g. Ø 125 mm)
»Maximum working speed 80 m/s

SKU#	Diameter mm (Inch)	Center Hole (mm)	Grit #24	Grit #36	Grit #40	Grit #60	Grit #80	Grit #120	Maximum Speed	Qty per pack	Qty per Carton
	100(4")	16.0	•	•	•	•	•	•	15,300	25	200
	115(4.5")	22.2	•	•	•	•	•	•	13,300	25	200
	125(5")	22,2	•	•	•	•	•	•	12,200	25	200
	180 (7")	22,2	•	•	•	•	•	•	8,500	25	100

Fiber disc with Zirconia Aluminum
»Suitable for use throughout the metal industry
»For rough and fine grinding jobs
»Especially for processing stainless steel
»High cutting output with good tool life
»Even grinding results
»Fiber discs for clamping on backing pad!
»Fiber discs for clamping on backing pad!

SKU#	Diameter mm (Inch)	Center Hole (mm)	Grit #24	Grit #36	Grit #40	Grit #60	Grit #80	Grit #120	Maximum Speed	Qty per pack	Qty per Carton
	100(4")	16.0	•	•	•	•	•	•	15,300	25	200
	115(4.5")	22.2	•	•	•	•	•	•	13,300	25	200
	125(5")	22,2	•	•	•	•	•	•	12,200	25	200
	180 (7")	22,2	•	•	•	•	•	•	8,500	25	100

Fiber disc with Aluminum
Suitable for use throughout the metal industry
For rough and fine grinding jobs
»Processing weld joints, removing rust, deburring
»High cutting output with good tool life
»Even grinding results
»Fiber discs for clamping on backing pad!
»Fiber discs for clamping on backing pad!

SKU#	Diameter mm (Inch)	Center Hole (mm)	Grit #24	Grit #36	Grit #40	Grit #60	Grit #80	Grit #120	Maximum Speed	Qty per pack	Qty per Carton
	100(4")	16.0	•	•	•	•	•	•	15,300	25	200
	115(4.5")	22.2	•	•	•	•	•	•	13,300	25	200
	125(5")	22,2	•	•	•	•	•	•	12,200	25	200
	180 (7")	22,2	•	•	•	•	•	•	8,500	25	100
