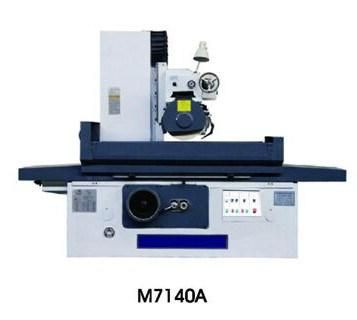

• Model NO.：M7140Ax2200
• Working Style：High-speed universal
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Table Size(Wxl)：400X1600(Mm)
• Max. Machining Dimension(Wxl)：400X1600(Mm)
• Longitudinal Moving Speed of Worktable：5-25m,Min
• T-Slot Number X W：3X18(Mm)
• Transport Package：Wood Case or Carton
• Specification：CE ISO
• Trademark：GNG MACHINE
• Origin：China
• HS Code：84595900
• Production Capacity：500 Sets,Month

table size(WxL)mm400x2200max. machining dimension(WxL)mm400x2200max. distance between spindle center line and worktable surfacemm600longitudinal moving speed of worktablem/min5-25T-slot number x Wmm3x18wheel head cross movingcontinuous feed speedm/min0.5-4.5intermittent feed speedmm/t3-30hand wheel feedmm/gra0.02wheel head vertical movingrapid speedmm/min400feed of handwheelmm/gra0.01wheel head motorpowerkw7.5rotation speedrpm1440total powerkw13.5max. loading capacity of worktable with chuckkg1380wheel size (ODxWxID):400x40x127(mm)
machine dimension(LxWxH):674x182x223(cm)
package dimensions(LxWxH):680x220x233(cm)
machine weight:8.5T
