• Model NO.：VA36
• Working Style：Shaking
• Disc Diameter：Customer
• Variable Speed：With Variable Speed
• Capacity：20L
• Size：700 X 790 X 1440 mm
• Weight：140 Kg
• Motor Power：0.75 Kw
• Electricity：380 V, 50-60 Hz
• Parts Available：25mm
• Speed：0-450 Rpm
• Motor Speed：1380 Rpm
• Processing：Wet or Dry
• Speed Control：Variable Frequency Drive
• Discharge：Manual Unloading
• Transport Package：Wooden Box
• Specification：20L
• Trademark：Inovatec
• Origin：Huzhou, China
• HS Code：84639000
• Production Capacity：3000

Basic Info.

Model NO. VA36 Working Style Shaking Disc Diameter Customer Variable Speed With Variable Speed Capacity 20L Size 700 X 790 X 1440 mm Weight 140 Kg Motor Power 0.75 Kw Electricity 380 V/ 50-60 Hz Parts Available 25mm Speed 0-450 Rpm Motor Speed 1380 Rpm Processing Wet or Dry Speed Control Variable Frequency Drive Discharge Manual Unloading Transport Package Wooden Box Specification 20L Trademark Inovatec Origin Huzhou, China HS Code 84639000 Production Capacity 3000

Product Description

Odstredive Dohlazovaci Stroje Patri Nejmodernejsim Nejrychlejsim Strojum Povrchove Obrabeni

Catalog Download
https://inovatecmachinery.en.made-in-china.com/Product-Catalogs/

Centrifugal disc tumbler Product Description:

Centrifugal Disc Finisher VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a lot finishing job in a short time.

Centrifugal Disc Finisher VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a lot finishing job in a short time. In addition, VA series machines significantly reduce material handling and manual involvement in metal finishing.

VA9, VA20, and VA38 series gyrate polishing machine adopt patent small gap (about 0.05-0.1mm) design. Therefore we can polish very thin parts like earring and pendants. This user-friendly feature made it possible to polish complicated and thin workpiece.

The application includes gold polishing, silver polishing, pearl polishing etc.

Centrifugal disc tumbler Feature:

• Digital timer control
• Adjustable speed control
• Forward and backward tumbling
• 4 barrels with removable PU insert
• Automatic media & parts discharge

Centrifugal disc tumbler Application:

• Small size delicate parts
• Jewelry parts
• Medical device
• Dental parts
• Aerospace engine blade
• Acrylic and rubber parts

Centrifugal disc tumbler Technical Drawing:





Centrifugal disc tumbler Technical Data:

Centrifugal disc tumbler	VA 9	VA 2x9	VA 3x9	VA 18	VA 2x18	VA 3x18	VA 36	VA 2x36	VA 3x36
Total capacity	9L	2*9L	3*9L	18L	2*18L	3*18L	36L	2*36L	3*36L
Maximal wokpiece (maximal)	20 mm	20 mm	20 mm	25 mm	25 mm	25 mm	30 mm	30 mm	30 mm
Barrel speed	0-450 rpm	0-450 rpm	0-450 rpm	0-450 rpm	0-450 rpm	0-450 rpm	0-400 rpm	0-400 rpm	0-400 rpm
Voltage	220 V/ 50-60 Hz	220 V/ 50-60	220 V/ 50-60 Hz	220 V/ 50-60 Hz	220 V/ 50-60 Hz	220 V/ 50-60 Hz	380 V/ 50-60 Hz	380 V/ 50-60 Hz	380 V/ 50-60 Hz
Power	0.37	2x0.37	3x0.37	0.75	2x0.75	3x0.75	2.2	2x2.20	3x2.20
	kw	kw	kw	kw	kw	kw	kw	kw	kw
Motor speed	1340 rpm	1340 rpm	1340	1380 rpm	1380 rpm	1380 rpm	1430 rpm	1430 rpm	1430 rpm
Dimensions	606 x 660 x 1220	972 x 660 x 1220	1410 x 660 x 1220	700 x 790 x 1440	1160 x 790 x 1440	1690 x 790 x 1440	890 x 800 x 1440	1490 x 800 x 1440	2130 x 800 x 1440
Weight	100kg	160kg	220kg	140kg	235kg	330kg	220kg	370kg	530kg

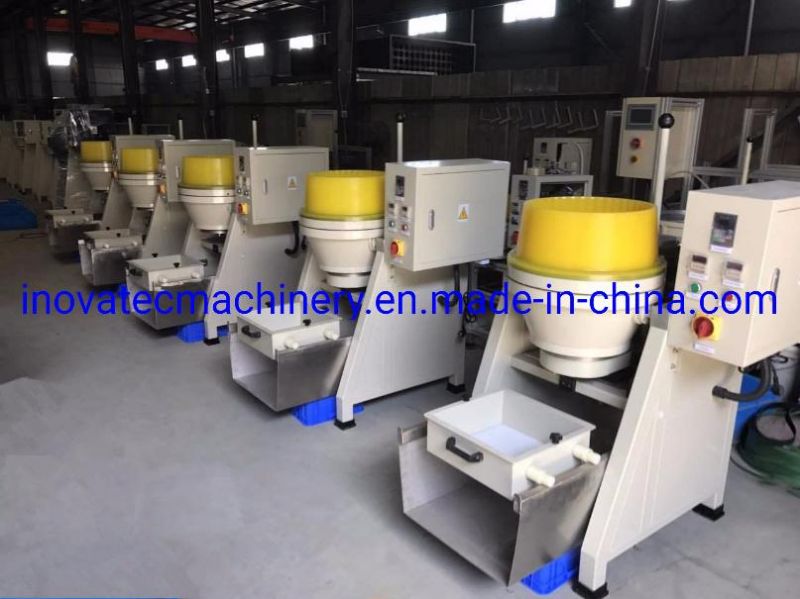

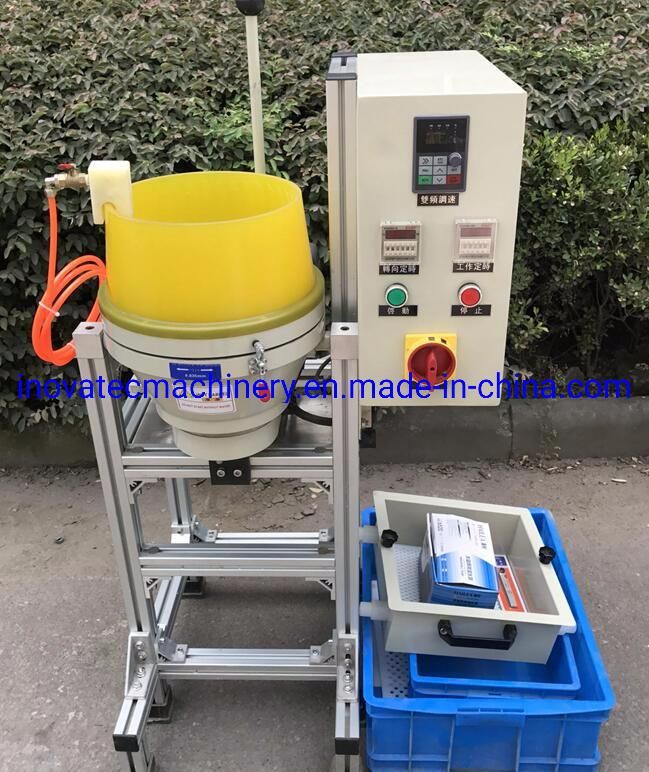

Centrifugal disc tumbler Product Photo:



Odstredive dohlazovaci stroje patri k nejmodernejsim a nejrychlejsim strojum pro povrchove obrabeni. Delka trvani procesu je nekolikanasobne kratsi nez u analogickych operaci provadenych v kruhovych vibratorech a jeste lepe jsou na tom odstrediva zarizeni ve srovnani s bubnovymi lestickami.  Stroje teto rady nahrazuji vstupni rucni opracovanipripravuji obrobky pro dalsi faze povrchoveho obrabeni. Povrchove obrabeni v odstredivem dohlazovacim stroji umoznuje: odhrotovani; srazeni a zaoblovani hran; brouseni; odmastovani; cisteni; odstranovani kamene, koroze, usazenin; vyhlazovani; lesteni  Odstredive dohlazovaci stroje se deli na zarizeni pro provoz za mokra s provoznimi kapalinami nebo pro provoz za sucha s orechovym granulatem. Mokry proces podporuji chemicke roztoky, ktere zlepsuji kluzne vlastnosti a zrychluji proces mikrofrezovani.K davkovani provoznich kapalin se vyuzivacerpadlo s regulaci prutoku.U suche metody se pouziva orechovy granulat nebo drevene kosticky, ktere plni roli nosice brusnych a lesticich past. Pracovni komoru u suchych procesu chladi specialni vzduchovecerpadlo, ktere vhani vzduch do pracovniho prostoru. Stroje v obou variantach, suche i mokre, maji plynulou regulaci otacek.Odstredive dohlazovaci stroje nasi vyroby se odlisuji predevsim inovativnim tvarem pracovni komory. Ta je zaoblena, a proto je pohyb vsazky optimalni a je mensi pravdepodobnost vzniku narazovych stop u obrobku. Tento tvar navic zajistuje dlouhodoby a bezporuchovy provoz stroje.  Stroj funguje na principu vytvoreni odstredive sily, ktera vznika rotacnim pohybem rotoru. Obrobky a brusna teliska se pohybuji spiralovite uvnitr pracovni komory, cimz jejich vzajemne pusobeni a vznikajici kontaktni sily jsou mnohem vetsi nez u vibracniho pohybu. Cilem je zintenzivnit a zkratit cely proces - agresivnejsi mikroobrabeni vyznamne zrychluje procesy odhrotovani a brouseni  Odstredive dohlazovaci stroje jsou opatreny systemem nastavitelne pracovnisterbiny. Odpad po obrabeni za mokra lze proto prubezne odstranovat ve forme kalu.Pri suchem provozu membranovecerpadlo vhanisterbinou dovnitr vzduch, coz ma za úkol chranit rotor a kruh proti poskozeni drobnymi orechovymi skorapkami. Doporucujeme, aby pracovnisterbina pri mokrem provozu byla nastavena v rozmezi 0,15-0,2 mm. Naopak nastavenisterbiny u sucheho provozu by melo byt v rozmezi 0,05-0,1 mm.  System proplachovani a snadne a rychle vyprazdnovani pracovni komory umoznujicastou zmenu cyklu, coz se projevuje vysokou produktivitou stroju teto tridy.

Surface Finishing Metal Treatment Company introduction:

Vibratory Finishing Equipment Optional settings:

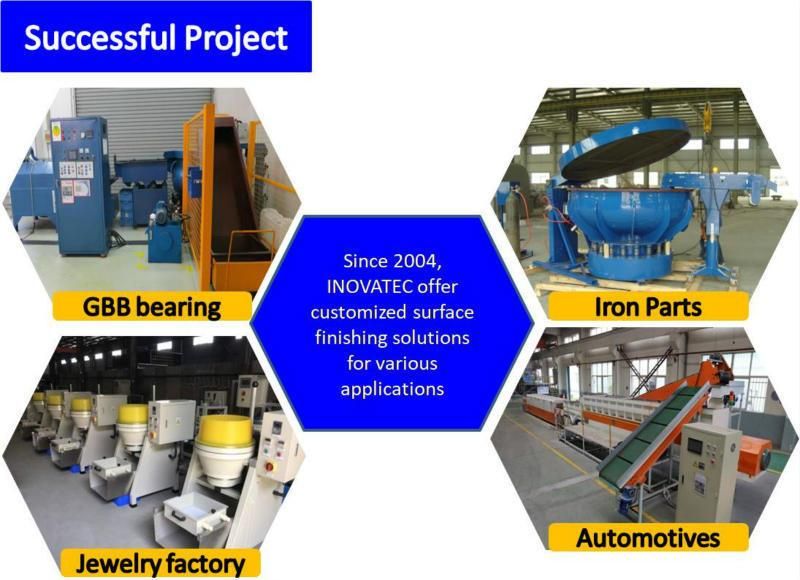

Vibratory Finishing Equipment Deburring Polishing Successful Project:

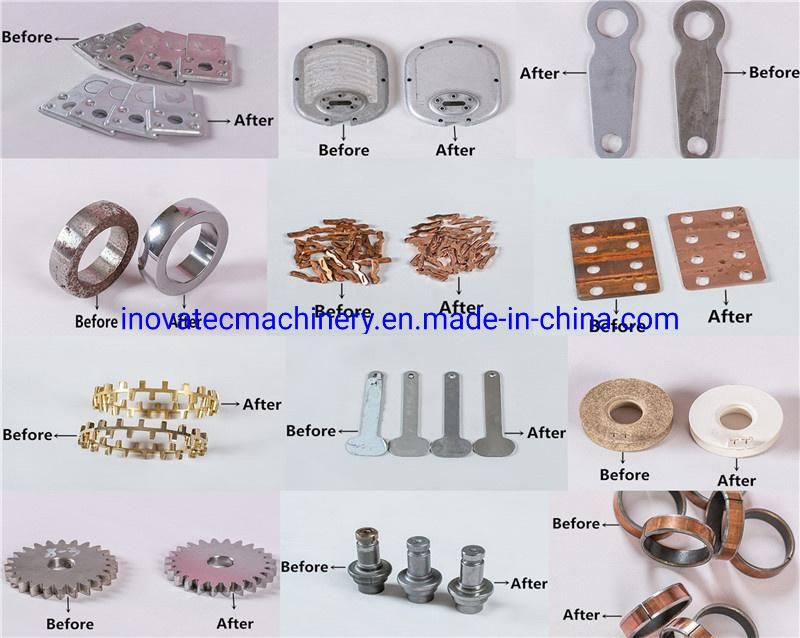

Parts before and after vibratory polishing, vibratory deburring, cleaning, edge rounding, descaling, degreasing, de-oiling, cleaning, edge breaking,radiusing:



Mass Finishing Deburring Polishing Equipment Packing and shipment:




Payment:





FAQ:

Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.

Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
