• Model NO.：XGP
• Working Style：Shaking
• Disc Diameter：Customize
• Variable Speed：With Variable Speed
• Power：5.5 Kw
• Weight：1100 Kg
• Size：1700*1450*1800mm
• Speed：0-154 Rpm
• Transport Package：Wooden Box
• Specification：80L
• Trademark：HUMO
• Origin：Zhejiang, China
• HS Code：84639000
• Production Capacity：5000

Basic Info.

Model NO. XGP Working Style Shaking Disc Diameter Customize Variable Speed With Variable Speed Power 5.5 Kw Weight 1100 Kg Size 1700*1450*1800mm Speed 0-154 Rpm Transport Package Wooden Box Specification 80L Trademark HUMO Origin Zhejiang, China HS Code 84639000 Production Capacity 5000

Product Description

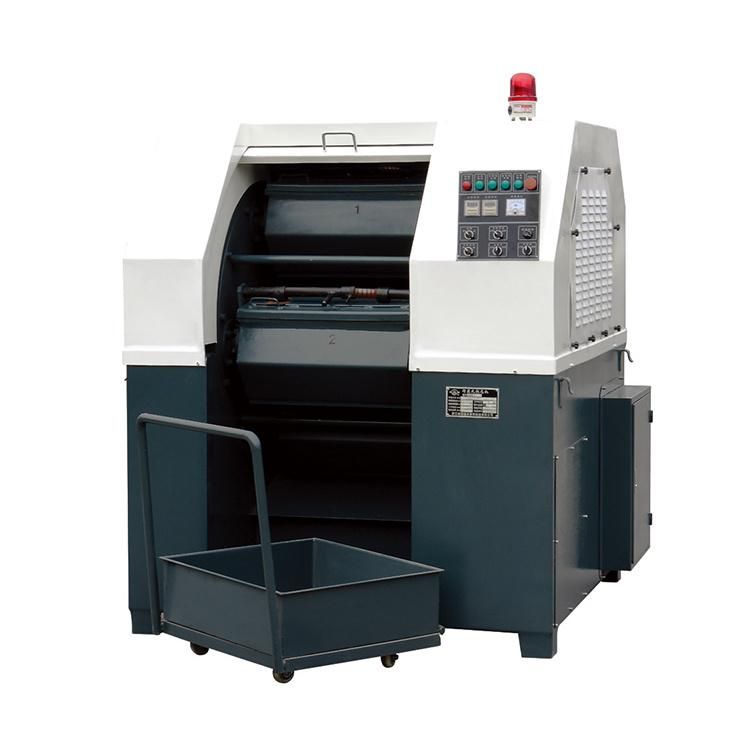

Mass Finishing Centrifugal Barrel Finishing Machine

Centrifugal barrel finishing machine  Product Description:

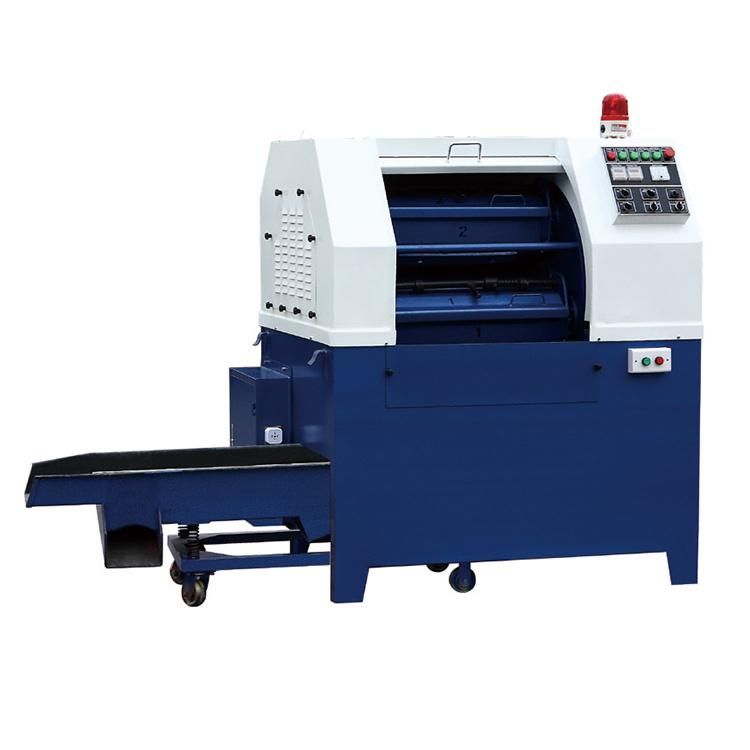

Centrifugal barrel finishing machine with automatic discharge have the size between 30L to 320L. It is suitable for small jewelry parts as well as huge gear components.

Centrifugal barrel finishers are a high energy mass finishing machine. It succeeds a lot of finish jobs in a short time. High gravity forces from work chamber allow small media to access slots and cavities on parts.

Either aggressive material removal or mirror polishing,These machine can achieve isotropic finish quickly. After finishing, the entire parts' surface is smooth and even in all directions, and it is hard to achieve by hand polishing.

Centrifugal Barrel Machine Feature:

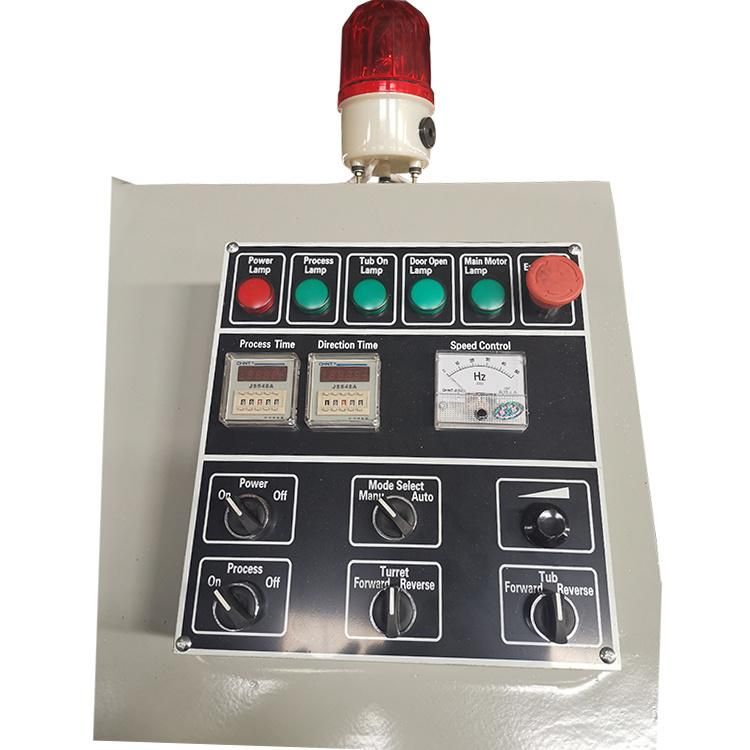

• Digital timer control
• Adjustable speed control
• Forward and backward tumbling

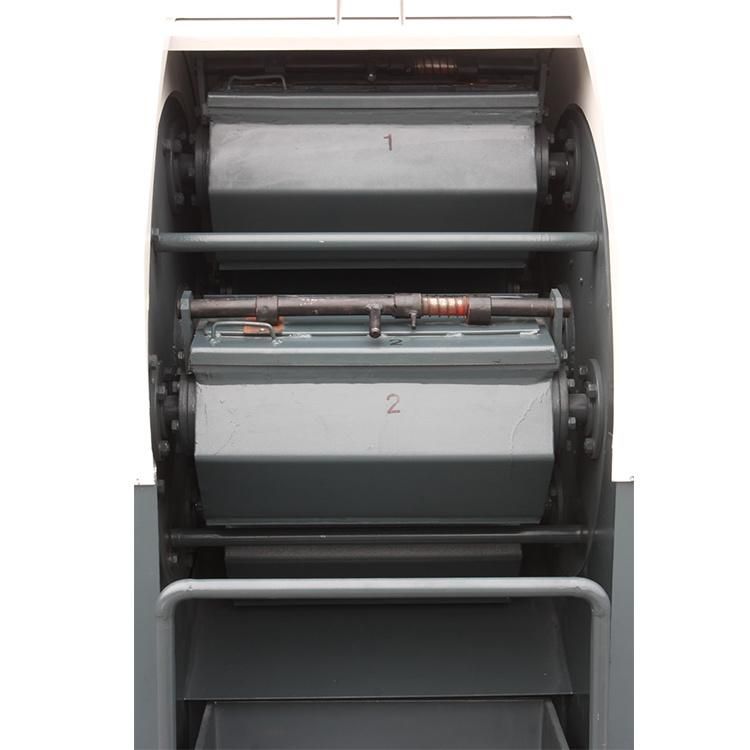

• 4 barrels with removable PU insert

Centrifugal Barrel Machine Application:

• Small size delicate parts
• Jewelry parts
• Medical device
• Dental parts
• Aerospace engine blade
• Acrylic and rubber parts

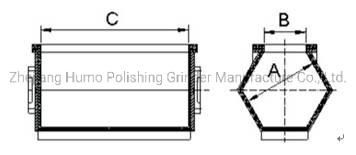

Centrifugal Barrel Machine Technical Drawing:

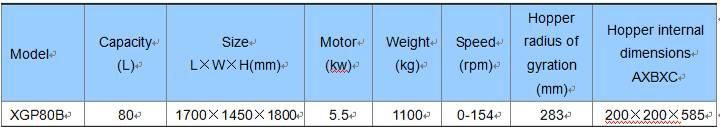

Model	Capacity (L)	Size LXWXH(mm)	Motor (kw)	Weight (kg)	Speed (rpm)	Hopper radius of gyration (mm)	Hopper internal dimensions AXBXC (mm)
XGP80B	80	1700*1450*1800	5.5	1100	0-154	283	200*200*585

Centrifugal Barrel Machine Technical Data:












Other type of Centrifugal Barrel Machine:
















FAQ:

Q: How is HUMO ?
Zhejiang HUMO Polishing Grinder Manufacture Co., Ltd. is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 200000 square meters factory
-more than 500 employees
-outputs over 60,000 tons of media chips,over 5000 sets of finishing machines and over 10000 tons of compounds annually
-our products sell well both in domestic and world markets, such as United States of America, Japan, Korea, Australia, Singapore, Malaysia, Turkey, UK, Italy, Spain, Germany, France, Sweden, Switzerland etc, over 50 countries total

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is the equipment warranty?
1 year warranty for all  Machinery equipment

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram;

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
