• Model NO.：Chemshun Ceramics
• Customized：Customized
• Item：Yttria Stabilised Zirconia Grinding Balls
• Materials：Yttria, Zirconia
• Type：High-Zironia
• Diameter：0.05mm-70mm
• Grinding Situation：Dry Grinding, Wet Griding
• Features：High Hardness, High Density and Anticorrosion
• Field：Food, Cosmetic, Pigment, Ink, Paints
• OEM：Accept
• Transport Package：by Bags, Then Fasten on Pallet.
• Specification：D1~D70mm
• Trademark：pingxiang chemshun ceramics
• Origin：P. R. China
• HS Code：69091200
• Production Capacity：25000ton,Year

Basic Info.

Model NO. Chemshun Ceramics Customized Customized Item Yttria Stabilised Zirconia Grinding Balls Materials Yttria, Zirconia Type High-Zironia Diameter 0.05mm-70mm Grinding Situation Dry Grinding, Wet Griding Features High Hardness, High Density and Anticorrosion Field Food, Cosmetic, Pigment, Ink, Paints OEM Accept Transport Package by Bags, Then Fasten on Pallet. Specification D1~D70mm Trademark pingxiang chemshun ceramics Origin P. R. China HS Code 69091200 Production Capacity 25000ton/Year

Product Description

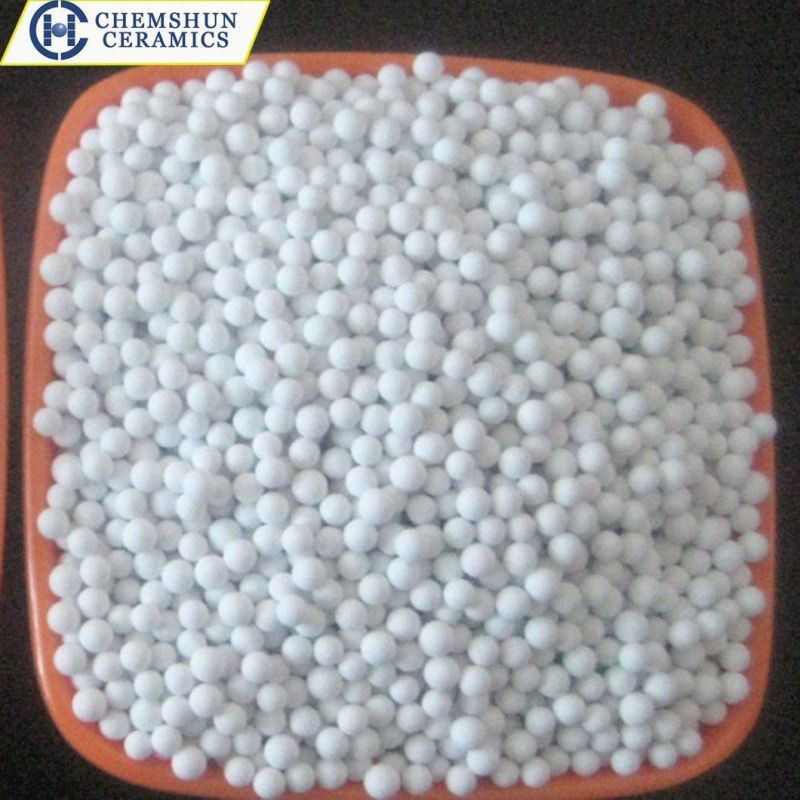

94.6% Yttria Stabilised Zirconia Ceramic Beads for Food, Cosmetic

Chemshun Ceramics grinding media for mining is small size ceramic balls or ceramic beads, used in high intensity stirred mills for fine and ultra fine grinding. The ceramic grinding media with different composition and size , and good feature of high impact resistance. The property of inert and no pollution, the media can replace the traditional steel and chrome steel grinding media for applications where downstream processes are sensitive to surface chemistry and also could avoid to the generation of slimes which combined with those traditional media's angular shape and high wear rates.


Item	Main composition	Diameter Range (mm)	Density (g/cm3)	Color	Vickers Hardness (kgf/mm2)
CS -26	Al2O3:45~60% SiO2:34~45%	0.5~20	2.6~2.8	White	700-800
CS-32	Al2O3, SiO2 ZrO2	0.5~20	3.2~3.3	White	900-1000
CS- 36	Al2O3:>90%	0.4~25	3.5~3.75	White	1300~1350
CS- 40	ZrO2:55~65% SiO2:30~35%	0.4~5.0	4.0~4.2	White	1000~1050
CS-52	ZrO2:80~90%  Al2O3:10~20%	0.4~5.0	5.1-5.3	White	1350~1450
CS -60	ZrO2:94~96% Y2O3:4-6%	0.2~40	5.95~6.05	White	1300~1400

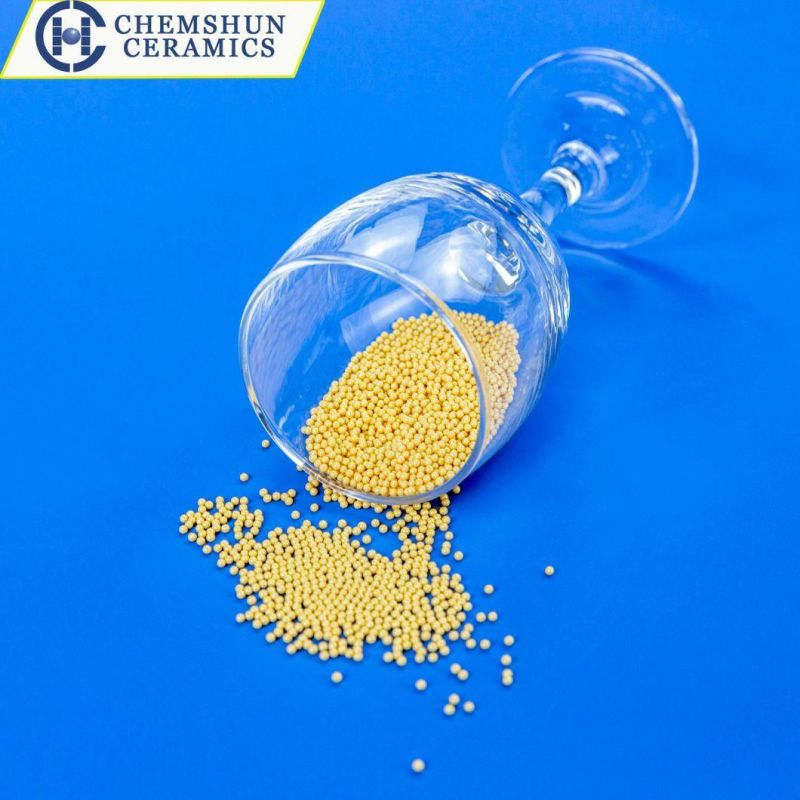

CS-62	ZrO2:93~94% CeO2:6~7%	0.6~4.0	6.1~6.2	Yellow Or Brown	1200~1250

Remark: CS-26, CS-32, CS-36, CS-40, CS-52 are suitable for the industries of:
1.Metallic minerals: copper, silver, nickel, Zinc
2.Non-metallic minerals: Kaolin clay, Calcium carbonate, Zirconium Silicate .
3. Coating, paint, ink etc.

Package :
1000kg/jumbo bag, 25kg/bag, small bags put into jumbo bag. CS-52, CS-60, CS-62 by plastic drums, then drums fasten on pallet.
