Ceramic Pastable Liner as Cement / Mining Wear Parts
Pingxiang Chemshun Ceramics Co., Ltd.- Size：150*100*13,25,50mm
- Item：Alumina Tile Sheet
- Material：Alumina Ceramic
- Feature：High Hardness, High Density, High Wear Resistant
- Alumina Content：92% 95%
- Application：Cement, Steel, Mining, Power Generation, Port
Base Info
- Model NO.：chemshun ceramic liner
- Firing Temperature：1680
- OEM：Design According Customer′s Drawings
- Transport Package：Cartons Fixed on Pallet
- Specification：150*100*13,25,50mm
- Trademark：CHEMSHUN
- Origin：Jiangxi, China
- HS Code：6909120000
- Production Capacity：350ton,Month
Description
Basic Info.
Model NO. chemshun ceramic liner Firing Temperature 1680 OEM Design According Customer′s Drawings Transport Package Cartons Fixed on Pallet Specification 150*100*13/25/50mm Trademark CHEMSHUN Origin Jiangxi, China HS Code 6909120000 Production Capacity 350ton/MonthProduct Description
Ceramic Pastable Liner as Cement / Mining Wear Parts>> Alumina wear tile as wear resistant cyclone liners Introduction
Alumina wear liner is one of the popular industry abrasion resistant materials ,which is with character of wear resistance , cost effective ,high hardness.high temperature resistance chemshun abrasion resistant ceramics series including alumina ceramic tile , ceramic lining pieces and hexagonal tile mat, ceramic cylinder , pulley lagging ceramics etc. These wear resistant ceramic liner is easy to installed with epoxy resin , cement , some mosaic pieces is best abrasion materials for vulcanized in rubber sheet. Ceramic weldable tile liner as typical wear lining introduced as follows :
>> Alumina wear liner characteris :
High hardness
Superior abrasion resistance
Corrosion and chemical resistance
Light weight
Can be applied in all kinds industrial abrasion solution field
>> Size available (Length*width*thickness ) :
| Alumina ceramic weldable tile popular sizes (Length*width*thickness ) |
| 100*100*20mm (4"x4"x3/4") |
| 150*100*13mm (6"x4"x1/2") |
| 150*100*15mm (6"x4"x5/8") |
| 150*100*20mm (6"x4"x3/4") |
| 150*100*25mm (6"x4"x1") |
| 150*100*50mm (6"x4"x2") |
| 150*50*25mm (6"x4"x1") |
| 100*75*25mm (4"x3"x1") |
| 120*80*20mm |
| 228*114*25mm |
| 114*114*25mm |
| More sizes and customized size acceptable. Chemshun ceramics afford the relative weldable steel cone and ceramic rod. |

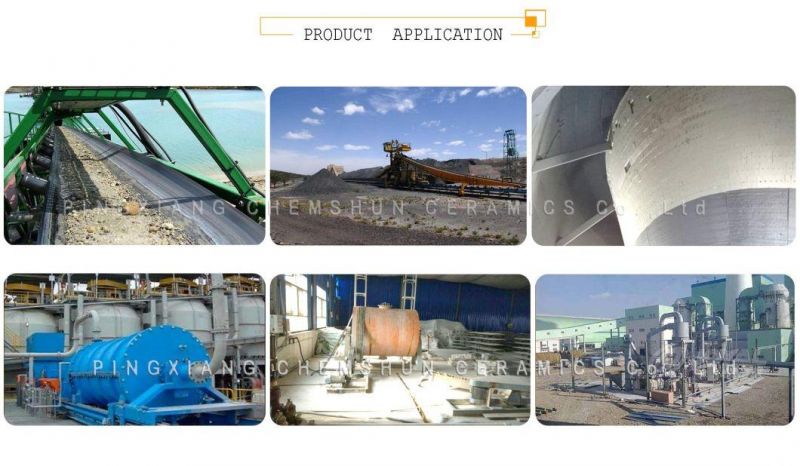

>> Alumina wear liner application industry:
Mining industry
Cement industry
Coal handling industry
Steel industry
Port industry
Power plant
>> Alumina wear liner tehcnical data :
Chemical Composition:
| Al2O3 | SiO2 | CaO | MgO | Na2O |
| 92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
Physical properties:
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | >280 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | >80 |
| Vickers hardness (hv) | 1050 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
| Crystal Size (μm) | 1.3~3.0 |
