Excellent Wear Resistance Alumina Ceramic Ball Mill Brick Liner Supplier
Pingxiang Chemshun Ceramics Co., Ltd.- Item：Alumina Ceramic Ball Mill Brick
- Alumina Content：65%, 92%, 95%
- Density：3.0~3.7g,Cc
- Self Abrasion Loss：<0.008%
- Property：High Hardness,Purity,Wear Resistant,Wear Impact
- Size：Available and Customized Size
Base Info
- Model NO.：chemshun ceramics
- Applied Equipment：Ball Mill

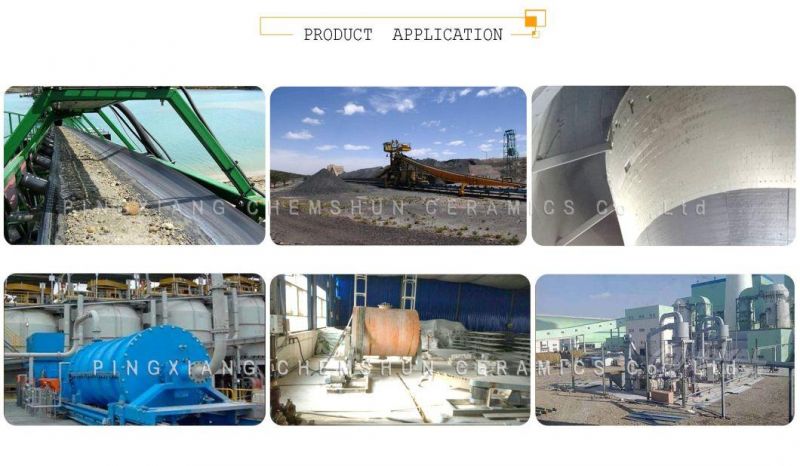

- Application Industry：Ceramic,Cement,Paint,Porcelain,Pigment Industry
- Transport Package：Carton+Pallet
- Specification：150x60x50mm
- Trademark：Chemshun
- Origin：Pingxiang, China
- HS Code：69091200
- Production Capacity：5000ton,Year
Description
Unit: mm
Technical Data Sheet
Technical Data Sheet
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | 270 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | 80 |
| Vickers hardness (hv) | 1000 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
| Crystal Size (μm) | 1.3~3.0 |
| Fracture Toughness (Mpa.M1/2) | 3-4 |
| Maximum Operation Temperature(ºC) | 1450 |
