Manufacturing Process and Requirements of Grinding Steel Balls
Shandong Huamin Steel Ball Joint-stock Co., Ltd.- Material：Stainless Steel
- Content：>90%
- Usage：Construction, Machinery, Chemical
- Processing Type：Rolling Type
- Size：Big
- Color：Black
Base Info
- Model NO.：20-150
- Customized：Customized
- Transport Package：Bag
- Specification：1000kg
- Trademark：huamin
- Origin：China
- HS Code：7326110000
- Production Capacity：100000ton,Year
Description
ProductSpecifications:
Our products range from 20mm to 150mm, 1 inch to 6 inch, and we can also offer all size of products according to clients' demand.20mm150mm,
Product Process:
We have almost 30 years experiences in manufacturing Forged Grinding Ball.
We use high-quality raw material for forging steel ballswhich is from large steel mill.
We have the whole stirct production process from raw material to packing.
Testing
We own the most advanced equipment for testing.
Each step of our product will be tested strictly.
1. Specifications: Φ10mm-Φ130mm;
2. Product quality standards such as chromium content (≥1.5), hardness (≥45), impact value (≥1.5J / cm2), crushing rate (≤0.80%), etc. are tailored or contracted according to the user's actual working conditions and use conditions Promise.
1.:Φ10mm-Φ130mm;
2.(≥1.5),(≥45),(≥1.5J/ cm2,(≤0.80%).
Nominal Diameter(mm):
(Φ20,25,30,35,40,50,60,70,75,80,90,100,120,125,130,140,150,)
Dimensional Tolerance(mm):
(40,+-2),(50-80,+3-1),(90-150,+4-2)
Roundness %:
(20-25,6),(30-40,5),(50-140,4)
Packing Instruction:

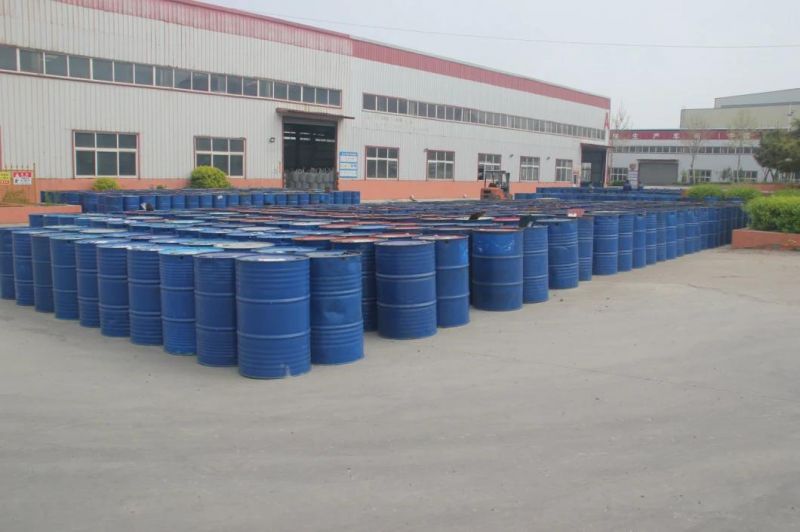

Steel drum :
Drum size(cm): 89 × 58 (Volume: 800kgs-900kgs N.G. )
(cm):89×58(:800kgs-900kgs N.G.)

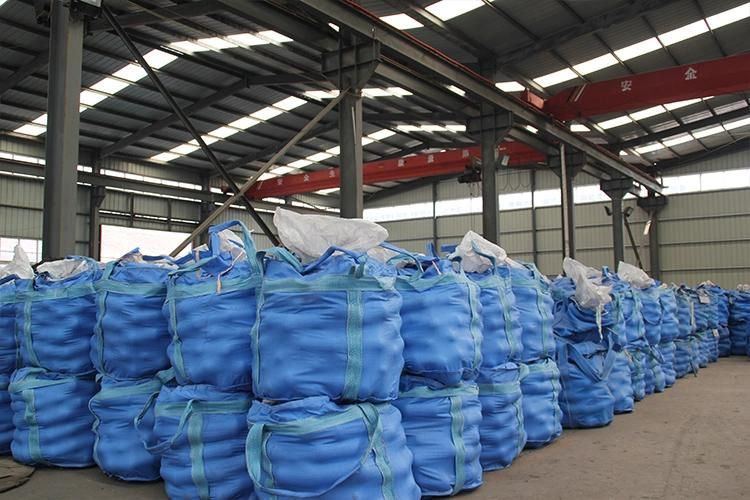

Big Bag:
Volume: 500kg; 1000kg
Certification and Patent :
Our company has obtained ISO 9001 International Quality System Authentication, ISO14001 Environmental System Management Authentication and OHSAS18001 Occupational Health and Safety Management Systems.
ISO 9001,ISO14001OHSAS18001.
