• Model NO.：DIA 20mm-150mm
• Customized：Customized
• Product Name：2"-2.5"Forged Carbon Grinding Balls
• Process：Forged
• Certification：TUV ISO 9001,ISO14001,OHSAS18001,SGS,BV
• Service：Samples
• Heat Treatment：Quenching+Tempering
• Product Material：Alloy Steel
• Hardness：55-65HRC
• Breakage Rate：<1%
• Impact Toughness：>12j,Cm^2

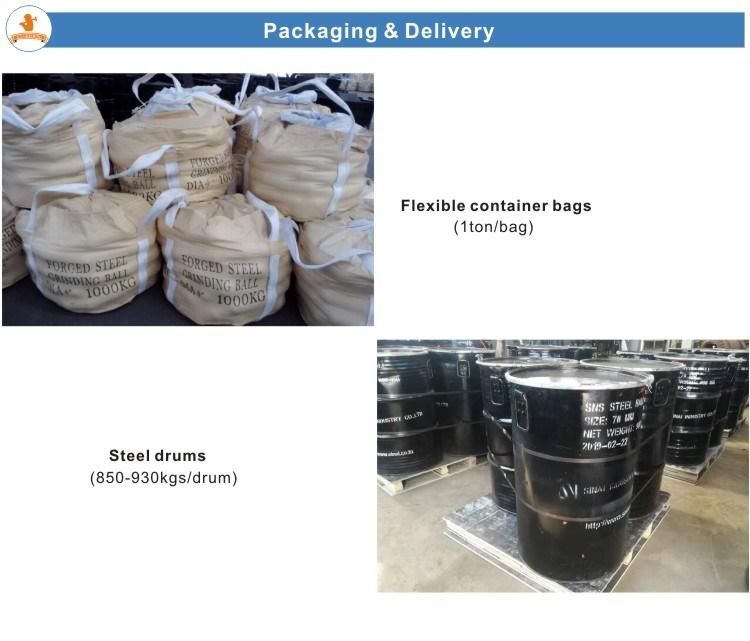

• Transport Package：Steel Drums &Flexible Cantainer Bags
• Specification：45#, 50Mn, 60Mn, 65Mn, B2, B3
• Trademark：ShengYe
• Origin：Shandong, China
• HS Code：73261100
• Production Capacity：100000

NameCMnSiSPCrSY-01-45#0.42-0.480.50-0.800.17-0.370.05max0.05max0.15maxSY-02-50Mn0.48-0.560.65-1.000.17-0.370.05max0.05max0.15maxSY-03-60Mn0.57-0.650.70-1.100.17-0.370.05max0.05max0.25maxSY-04-65Mn0.62-0.750.90-1.200.17-0.370.05max0.05max0.25maxSY-05-B20.75-0.850.70-0.900.17-0.350.05max0.05max0.40-0.60SY-06-B30.50-0.650.40-1.001.35-1.850.05max0.05max0.80-1.20SY-07-BL0.55-0.750.65-0.850.15-0.350.05max0.05max0.70-1.20SY-08-BG0.90-1.050.35-0.950.15-0.350.05max0.05max1.0-1.70

Forged(Rolling) Steel Ball Mechanical Propety

NameImpact Value AK.J/cm²Dropping test(sm)

Dia25-50

Surface

(HRC)

Dia25-50

Core

(HRC)

Dia60-90

Surface

(HRC)

Dia60-90

Core

(HRC)

Dia100-150

Surface

(HRC)

Dia100-150

Core

(HRC)

SY-01-45#≥12≥15000≥55≥38≥50≥35≥45≥25SY-02-50Mn≥12≥15000≥56≥40≥56≥35≥50≥30SY-03-60Mn≥12≥15000≥58≥45≥58≥38≥52≥35SY-04-65Mn≥12≥15000≥60≥52≥60≥42≥53≥36SY-05-B2≥12≥15000≥60≥60≥60≥54≥55≥48SY-06-B3≥12≥15000≥60≥60≥60≥54≥58≥53SY-07-BL≥12≥15000≥60≥60≥60≥54≥58≥55SY-08-BG≥12≥15000≥60≥60≥60≥60≥60≥60

Grinding steel /rods data

DIA(mm)30-5060-7075-90100-120130hardnessLength3.0-6.03.0-5.823.0-6.0customizablecustomizable

HRC25-35

HRC35-45

HRC45-60

HRC>60

 We can produce the grinding rod according to the length of the customer's mill.

Grinding ball performance

*Even hardness
*Unbreakable
 *Grinding resistant
*High impact value

*High combined efficiency of grinding mill





SHANGDONG SHENGYE GRINDING BALL CO.,LTD specializes in the production of grinding steel ball for ball mill. Staff are trained and selected by strict overseas technology . The quality of grinding ball is consistent and the specifications are complete. The annual output of diameter DIA 20MM-DIA 150MM grinding steel ball is 120000 tons.

Due to the application of internationally advanced technology and manufacture experience ,our grinding steel balls have the advantages of rubbing endurance, crashing tolerance and roundness persistence ,compared to other products in this field. We record the data for our grinding balls, follow up customers and drop in services at calling to solve customers' uncertainties.

Grinding ball/rod testing equipment



After-sale services

 *Any quality problem, we promise to refund it in full.

 *During the use process, we will contact regularly.

 *Any problems arise in the course of use, we will solve them for you as soon as possible



Our grinding balls are exported to over 30 countries and regions including USA, Republic of Korea, Japan,Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.

RFQ

Q1: What is the advantage of your company?

A: We are a professional steel ball manufacturers, which have 30 years of production experience.We also have Hi-Tech and capable production line.

Q2: Are you trading company or manufacturer ?

A: We are factory.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, please feel free to contact us as below:
