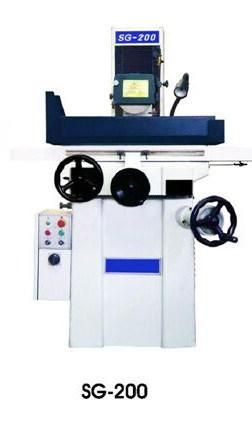

Metal Processing Manual Surface Grinder Machine

Qingdao G & G Machinery Co., Ltd.
  • Type：Manual Surface Grinder Machine
  • Power Source：Electricity
  • Object：Drilling Bit
  • Application：Construction
  • Disc(Wheel) Type：Grinding Disc
  • Material：Metal

Base Info

  • Model NO.：SG-200
  • Working Style：High-speed universal
  • Disc Diameter：125mm
  • Variable Speed：With Variable Speed
  • Max. Width to Be Ground：165mm
  • Max. Length to Be Ground：470mm
  • Max. Height to Be Ground：350mm
  • Table Size：150X460(Mm)
  • Permanent Magnetic Chuck Size(Optional)：150X400(Mm)
  • Transport Package：Wood Case or Carton
  • Specification：CE ISO
  • Trademark：GNG MACHINE
  • Origin：China
  • HS Code：84595900
  • Production Capacity：1000 Sets,Month

Description

M SG manual surface grinder   Item/ModelunitSG200max. width to be groundmm165max. length to be groundmm470max. height to be groundmm350table sizemm150x460permanent magnetic chuck size(optional)mm150x400max.longitudinal travelmm500max.cross travelmm200max.distance from spindle center to table surfacemm450feed of vertical handwheelper rev.mm2per div.mm0.005grinding wheel size(ODxWxID)mm200x20x31.75spindle speedr/min3450(60Hz),2850(52Hz)power of spindle headkwstandard 1.5(build in spindle:1.3KW)max.load capacity (include permanent magnetic chuck)kg110machine weightkg1000machine appearance size(LxWxH):1360x1350x1710(mm)
package dimension(LxWxH):1670x1560x1930(mm)
package size(dismantle table(LxWxH):1670x1120x1930(mm)
