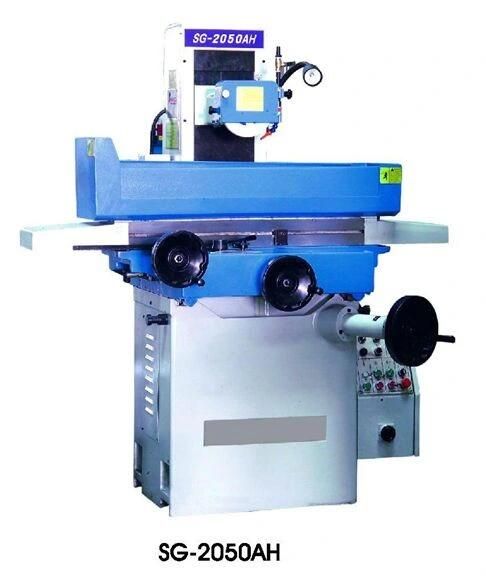

• Model NO.：SG-2050AH, AHR , AHD
• Working Style：High-speed universal
• Disc Diameter：180mm
• Variable Speed：With Variable Speed
• Table Size(Wxl)：200X400(Mm)
• Max. Longitudinal Travel：510mm
• Max. Cross Travel：238mm
• Max. Distance From Spindle Center to Tab：450mm
• Electro Magnetic Chuck Size：200X460(Mm)
• Transport Package：Wood Case
• Specification：CE ISO
• Trademark：GNG MACHINE
• Origin：China
• HS Code：84595900
• Production Capacity：100 Sets,Month

Item/Model UnitSG-2050AH  SG-2050AHR  SG-2050AHDtable size(WxL)mm200x400max. longitudinal travel mm510max. cross travelmm238max. distance from spindle center to tablemm450electro magnetic chuck sizemm200x460speed of table longitudinal movementm/min7-23table transverse movementauto feedmm/min0.1-8rapid speedmm/min990feed of handwheelmm/div0.02wheelhead vertical movementauto feedmm---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)rapid speedmm/min---(H/AH model) / 460 (for AHR model)feed of handwheelmm/div0.005grinding wheelspeedrpm2850(50Hz),3450(60Hz)eize(ODxWxID)mm200x20x31.75spindle motorkw1.5hydranlic motorkw0.75cooling pump motorkw0.04elecating motorkw---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)cross feed motorkw1.04max.loading capacity of table(include chuck)kg120total rated powerkw3height of machine:1675mm
floor space(LxW):2050x1400mm
Gross weight:1600kg
package dimensions(LxWxH):1900x1720x2175(mm)
