• Model NO.：W220
• HS Code：6804
• Production Capacity：50 000 000PCS,Year

Basic Info.

Model NO. W220 HS Code 6804 Production Capacity 50 000 000PCS/Year

Product Description

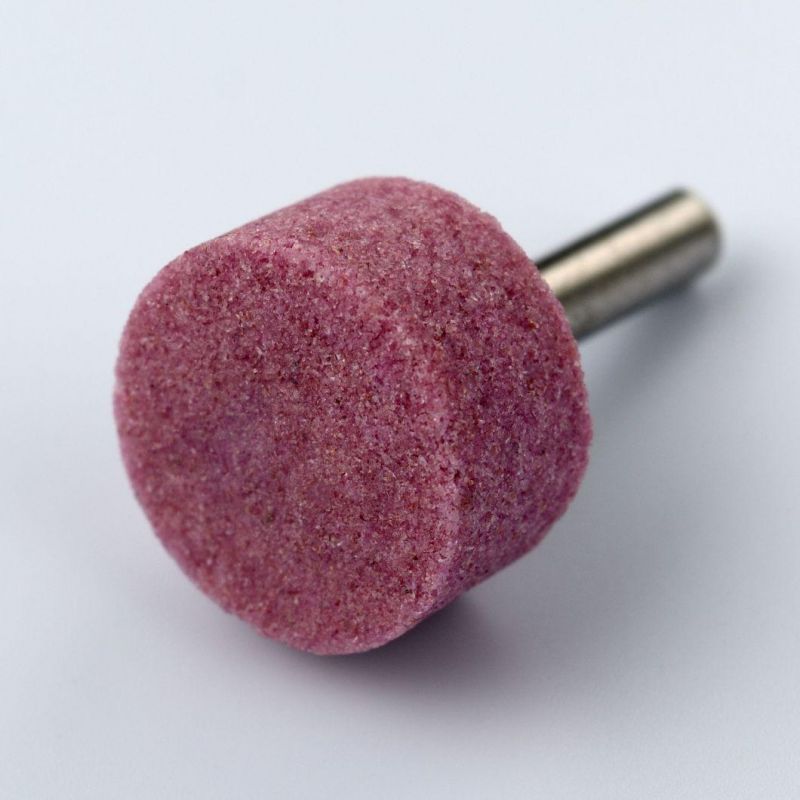

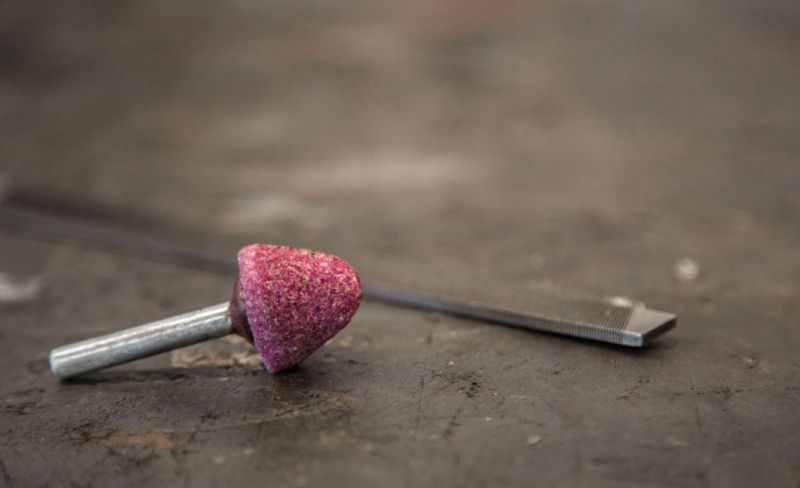

Mounted Points with Pink Aluminum Oxide

»Mounted points made from pink aluminum oxide for steel and cast steel
»For the preparation of weld seams, processing of weld seams
»Rough machining to fine processing
»For deburring and buffing

Ø 3mm shank Group W
ISO Designation	W142	W144	W145	W146	W149	W150	W153
d1 x b(mm)	2.5 x 6	3 x 6	3 x 10	3 x 13	4 x 6	4 x 10	5 x 10
ISO Designation	W154	W160	W162	W163	W164	W169	W170
d1 x b(mm)	5 x 13	6 x 6	6 x 10	6 x 13	6 x 19	8 x 10	8 x 13
ISO Designation	W171	W174	W176	W182	W183	W184	W185
d1 x b(mm)	8 x 16	10 x 6	10 x 13	13 x 3	13 x 6	13 x 10	13 x 13
ISO Designation	W191	W192	W193	W200	W212	W215	W216
d1 x b(mm)	16 x 3	16 x 6	16 x 10	19 x 3	22 x 6	25 x 3	25 x 6
Ø 6mm shank Group W
ISO Designation	W176	W178	W186	W187	W188	W194	W195
d1 x b(mm)	2.5 x 6	3 x 6	3 x 10	3 x 13	4 x 6	4 x 10	5 x 10
ISO Designation	W196	W197	W200	W201	W204	W205	W207
d1 x b(mm)	16 x 25	16 x 51	19 x 3	19 x 6	19 x 19	19 x 25	19 x 38
ISO Designation	W216	W218	W220	W221	W222	W225	W229
d1 x b(mm)	26 x 6	25 x 13	25 x 25	25 x 38	25 x 51	32 x 6	30 x 25
ISO Designation	W230	W232	W236	W237	W238	W240	W242
d1 x b(mm)	32 x 32	32 x 51	38 x 13	38 x 25	38 x 38	50 x 13	50 x 25
