• Working Style：Centrifugal
• Disc Diameter：Different Size
• Variable Speed：With Variable Speed
• Materials：Stainless Steel or Pure Zirconia
• Lead Time：20-45days
• Grinding/Milling Medium：Pure Zirconia Beads, Ceramic Beads, Glass Beads
• Application Industry：Emulsion Paint, Printing Ink, Pigment, Coating
• Usage：Industrial
• Product Type：Paint
• Transport Package：Wooden Case
• Specification：EDW-5------EDW-100
• Trademark：ELE
• Origin：Shanghai, China
• Production Capacity：200-2000L

Basic Info.

Working Style Centrifugal Disc Diameter Different Size Variable Speed With Variable Speed Materials Stainless Steel or Pure Zirconia Lead Time 20-45days Grinding/Milling Medium Pure Zirconia Beads, Ceramic Beads, Glass Beads Application Industry Emulsion Paint, Printing Ink, Pigment, Coating Usage Industrial Product Type Paint Transport Package Wooden Case Specification EDW-5------EDW-100 Trademark ELE Origin Shanghai, China Production Capacity 200-2000L

Product Description

Pigment horizontal sand mill
Introduction

1. ELE Pin type bead mill is high energy & energy concentrated wet grinding mill.
2. ELE Pin type bead mill is Suitable for products with high viscosity, high solid content & high refining requirements, for continuous or circulating process operations.
3. EDW Pin type bead mill adopt unique large area tubular reseau centrifugal separator, precise separation & smooth discharging, solve the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding medium. At the smallest 0.05 discharging sieve can be applied.

Specification

1. Special Pin type contracture will pass higher power to the grinding beads,
2. High Filling rate of grinding beads, more hit, more shearing force to the products, break down the particle size more quickly.
3. Final particle size is narrow distributed.
4. ELE-NET0.05 discharging sieve is designed for superfine material, to ensure of large flow rate, and microbeads can be used at the same time;
5. Selection of special material (zirconia / silicon carbide/hard alloy steel etc.) enhance wearability of all processing contact parts,It adopts internal thread type cooling way, effectively improves heat dissipation the grinding chamber.
6. Unique double cartridge mechanical seal, to ensure long operation of shaft seal ,maximum 8 -10 kg pressure

Parameters:

Model	Chamber volume(L)	power (KW)	Speed(rpm)	Flow(L/H)	Dimension(mm)	Weight(kgs)
EDW-1.0	1	4	0-3000	2-30	1200×900×1400	260
EDW-5	5	11	0-1500	30-200	1100×850×1600	400
EDW-10	10	22	0-1200	50-300	1400×1100×1750	700
EDW-15	15	37	0-1200	100-500	1550×1100×1800	1300
EDW-30	30	55	0-1000	200-1000	1850×1300×1700	2200
EDW-50	50	75	0-860	>1000	2200×1500×1800	2800
EDW-100	100	110	0-750	>1500	3150×1500×2000	5500

Advantages

Special Feeding System:
Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank

Discharging System: New technology of Discharge method
Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads

Special Mechanical Seal & Bearing Housing:

1. Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
2. Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.

Cooling system:

1. High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling
2. Feeding pipe with jacket for cooling
3. End cover corrugated cooling
4. Cooling Tank for Mechanical Seal

Application
Pin type horizontal bead mill is suitable for 2microns, 1microns or even below 1microns, nanometers, like 50nm, 100nm, 200nm…etc

Coating: Water-based coating, Solvent-based coating,Decorative Coating,Latex paint;
Paint: Car Paint, Finish paint, Wood paint, Industrial paint;
Ink: Gravure Printing ink, Flexographic ink, Offset printing ink, Silk screen ink, UV light solid ink, Digital inkjet ink etc;
Pigment: Dye, Color painted pigment, Pen liquid,Watercolor;
Electronic Materials: Battery diaphragm alumina, Lithium iron phosphate, Ceramic slurry, Flame retardant;
Food Industry: Chocolate Syrup, Paste etc;
Pesticide: Pesticide suspension, EC, EW, ME;
Daily Chemical Industry: Cosmetics, Liquid soap, Shower gel, Liquid detergent etc;
Biological Medicine: Algae cell fragmentation, Micro-biological functional materials;
Nano Materials: metal oxide, Magnetic Materials, Paper industry, Optoelectronic industry.

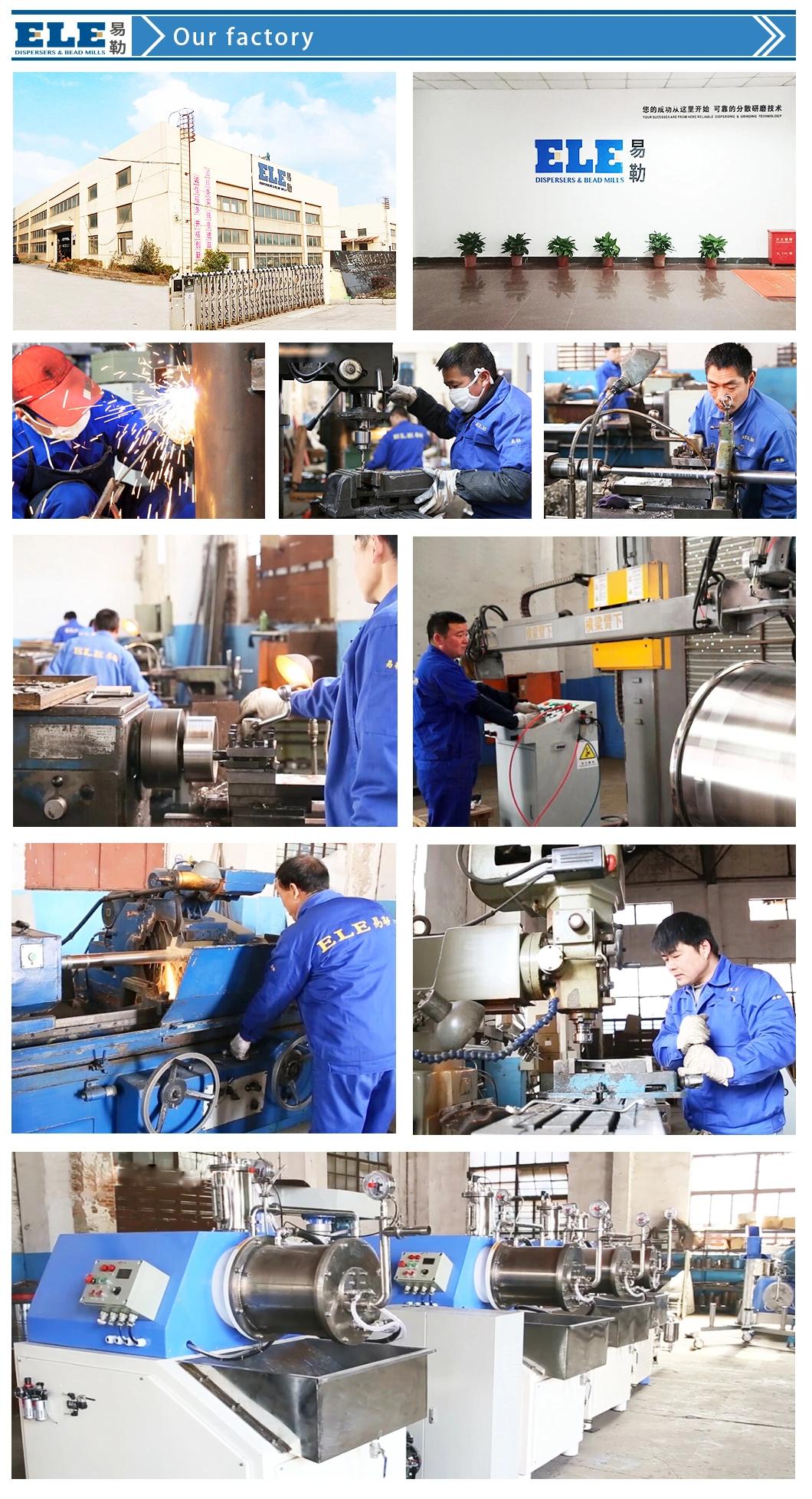

Professional technical supports & Processing Machines
Our engineers are around 20years rich experience in this area, professional skills and stable processing.
We have lathes, grinder, drilling machine, boring machine, polishing machine, milling machine…etc.



MAINTENANCE & SERVICES
1.Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;
2.We provide you opeatian manual by chinese or English;
3.We offer you Videos for equipment installation and maintenance in both English and Chinese;
4.With three years of spare parts inventory to ensure normal use and make you to be in trouble free;
5.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;

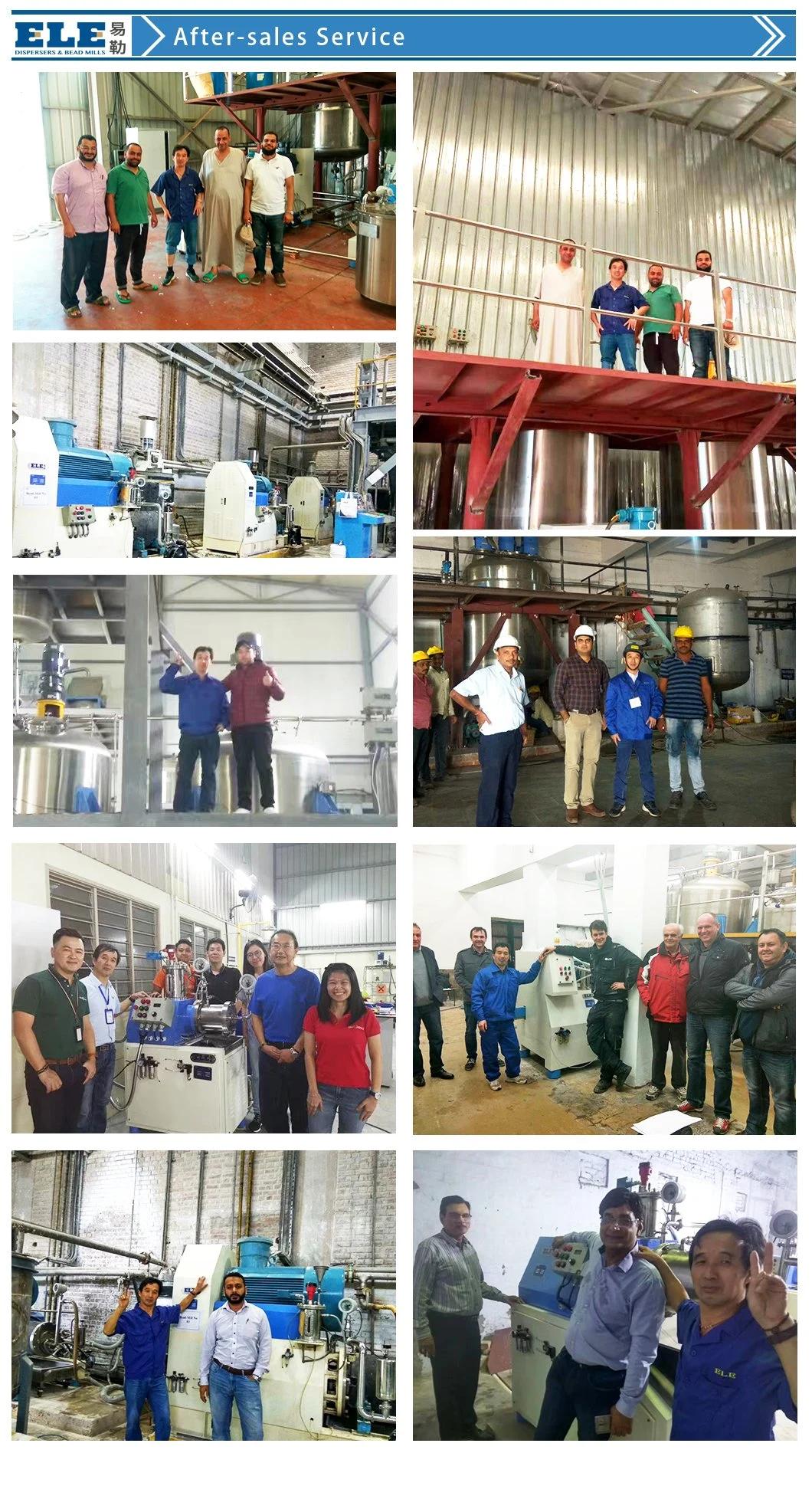

6.After delivery, our professional engineer will offer on-site guidance debugging free of charge, according to different characteristic of materials, to set up the operational parameters of the mill and ensure optimal grinding quality & equipment running status;
7.After the warranty period, we provide maintenance and maintenance service, only charge
the cost;
8.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
