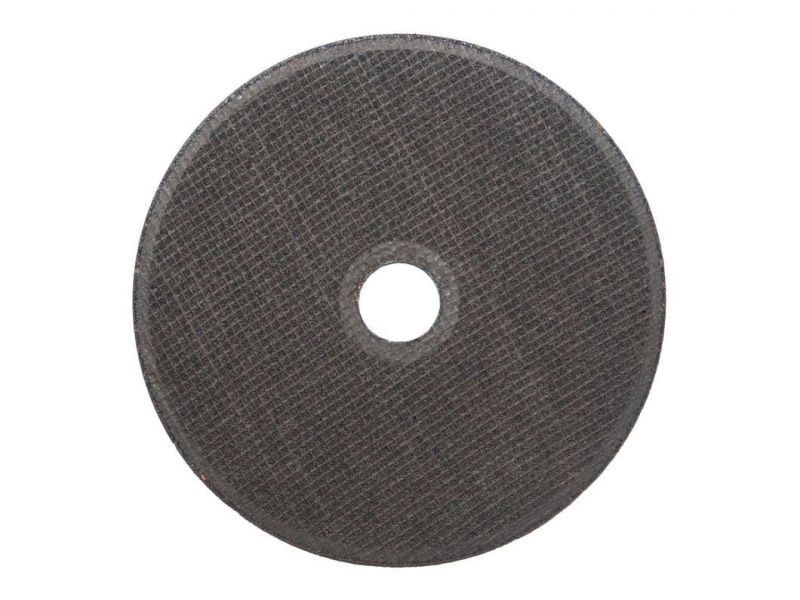

230X3.2X22.2mm Depressed Center Cutting Disc for Metal
Nanjing CUMET Tools International Co., Ltd.- Transport Package：Strong Enough for Transportation
- Specification：230x3.2x22.2mm
- Trademark：INGLAU
- Origin：China
Base Info
- Model NO.：230x3.2x22.2mm
- HS Code：68042210
- Production Capacity：50, 000, 000PCS,Month
Description
Basic Info.
Model NO. 230x3.2x22.2mm HS Code 68042210 Production Capacity 50, 000, 000PCS/MonthProduct Description
INGLAU CUTTING DISCS-PLATINUM with Ceramic
»Optimised for back-grinding between weld passes
»Made with ultra fast cutting CA+ material
»free, suitable for use on all ferrous metals
»Compliant with MPA, ISO 2000.
| Diameter mm (Inch) | Thickness (mm) | Center Hole (mm) | Max.Speed Rpm | Qty per pack | Qty per Carton |
| 100(4") | 2.5 | 16.0 | 15,300 | 25 | 200 |
| 100(4") | 3.2 | 16.0 | 15,300 | 25 | 200 |
| 115(4.5") | 2.5 | 22,2 | 13,300 | 25 | 200 |
| 115(4.5") | 3.2 | 22.2 | 13,300 | 25 | 200 |
| 125 (5") | 2.5 | 22,2 | 12,200 | 25 | 200 |
| 125 (5") | 3.2 | 22,2 | 12,200 | 25 | 200 |
| 180(7") | 2.5 | 22.2 | 8,600 | 25 | 100 |
| 180(7") | 3.2 | 22.2 | 8,600 | 25 | 100 |
| 230(9") | 2.5 | 22,2 | 6,600 | 25 | 100 |
| 230(9") | 3.2 | 22.2 | 6,600 | 25 | 100 |
INGLAU CUTTING DISCS-CLASSIC with Aluminum
»Suitable for back-grinding between weld passes
»Extended disc life with reduced dust
»Iron free, suitable for use on all ferrous metals
»Compliant with MPA, ISO 2000.
| Diameter mm (Inch) | Thickness (mm) | Center Hole (mm) | Max.Speed Rpm | Qty per pack | Qty per Carton |
| 100(4") | 2.5 | 16.0 | 15,300 | 25 | 200 |
| 100(4") | 3.2 | 16.0 | 15,300 | 25 | 200 |
| 115(4.5") | 2.5 | 22,2 | 13,300 | 25 | 200 |
| 115(4.5") | 3.2 | 22.2 | 13,300 | 25 | 200 |
| 125 (5") | 2.5 | 22,2 | 12,200 | 25 | 200 |
| 125 (5") | 3.2 | 22,2 | 12,200 | 25 | 200 |
| 180(7") | 2.5 | 22.2 | 8,600 | 25 | 100 |
| 180(7") | 3.2 | 22.2 | 8,600 | 25 | 100 |
| 230(9") | 2.5 | 22,2 | 6,600 | 25 | 100 |
| 230(9") | 3.2 | 22.2 | 6,600 | 25 | 100 |
