Industrial Alumina Ceramic Tapered Tiles for Pipe Sleeves
Pingxiang Chemshun Ceramics Co., Ltd.- Size：150*100*13,25,50mm
- Item：Alumina Tile Sheet
- Material：Alumina
- Feature：High Hardness
- Alumina Content：92% 95%

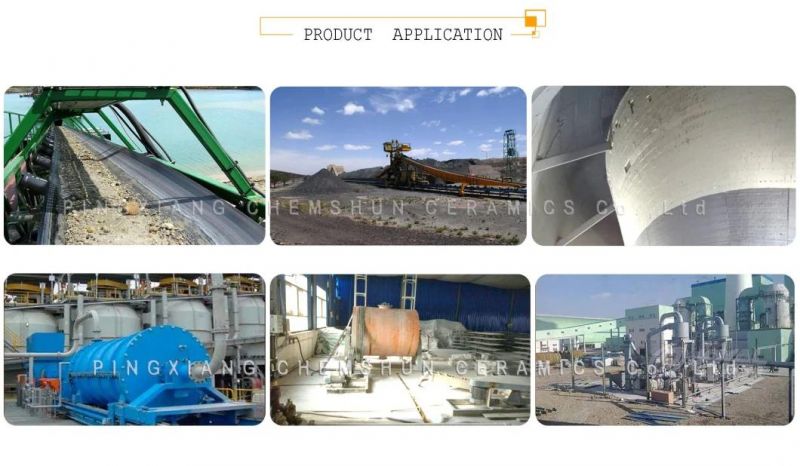

- Application：Cement , Steel , Mining , Power Generation , Port
Base Info
- Model NO.：Chemshun ceramics
- Firing Temperature：1680
- OEM：Desgin According Customer′s Drawings
- Transport Package：Cartons Fixed on Pallet
- Specification：150*100*13,25,50mm
- Trademark：CHEMSHUN
- Origin：Jiangxi, China
- HS Code：69091200
- Production Capacity：350ton,Month
Description
Chemshun ceramic pipe liner tile normal Size150*100/95.63*50mm, 150*100/95.34*50mm 150*50/46*25 mm, 157*100*48/35 mm, 100/68*102/70*50 mm 125/62.2*102*50mm 80*23.9/22.1*20 mm 80*25.5/22.7*10mm 80*27.3/25.9*10 mm 80*27.4/25.73*8mm 80*28.5/27.3*10mm 25.4*25.4/24.4*12.7mm 97*50/48*15 mm 100*60/59.44*15mm Note: more sizes and customized size acceptable
Alumina ceramic propertiy
1) Chemical property :
2) Physical property :
Alumina ceramic propertiy
1) Chemical property :
| Al2O3 | SiO2 | CaO | MgO | Na2O |
| 92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
2) Physical property :
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | 280 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | 80 |
| Vickers hardness (hv) | 1050 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
| Crystal Size (μm) | 1.3~3.0 |
