• Model NO.：1,2" x 1,8" x 1,8" Shank W182
• Specification：1,2" x 1,8" x 1,8" Shank W182
• Trademark：INGLAU
• Origin：China
• HS Code：68042210
• Production Capacity：50, 000, 000PCS,Month

Basic Info.

Model NO. 1/2" x 1/8" x 1/8" Shank W182 Specification 1/2" x 1/8" x 1/8" Shank W182 Trademark INGLAU Origin China HS Code 68042210 Production Capacity 50, 000, 000PCS/Month

Product Description

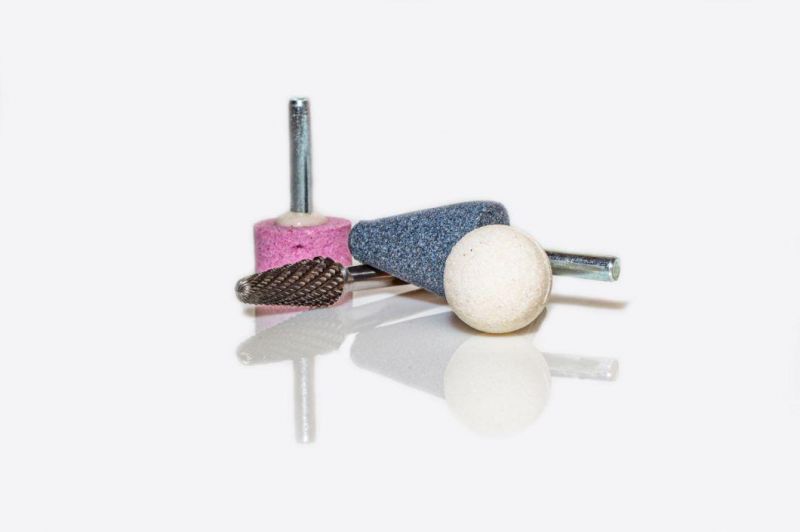

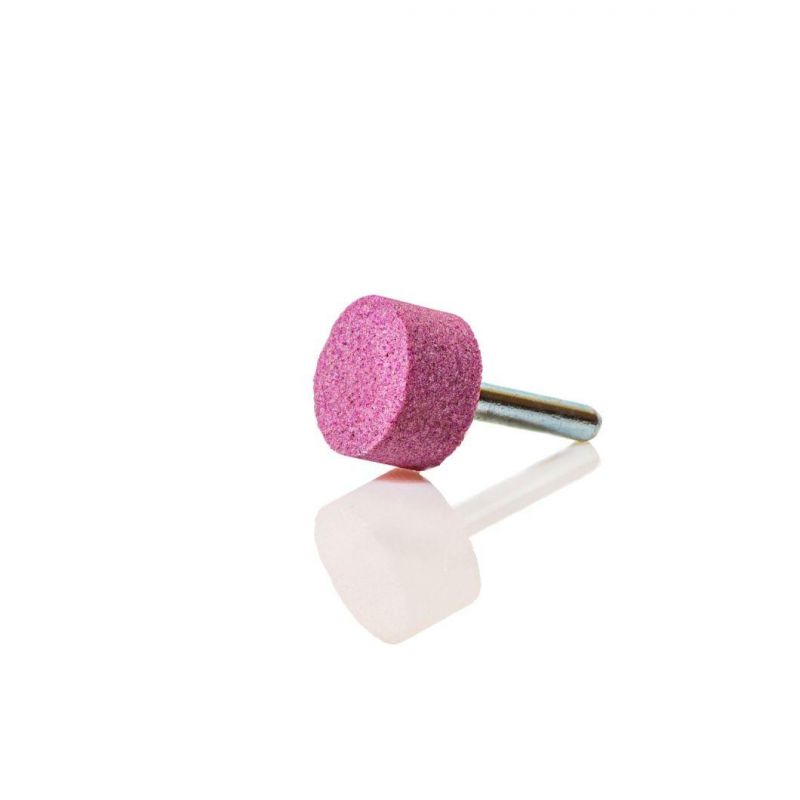

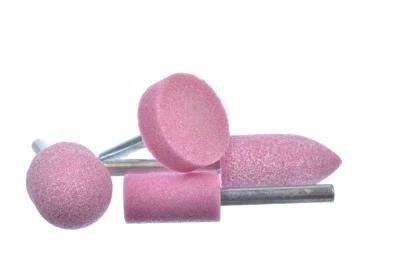

INGLAU mounted points are top-notch grinding tools with a long service life and high removal rates.
For grinding, deburring and finishing on stainless steel, aluminum, and exotic materials.

Product Features
Debur and finish in one stepControlled metal removal without changing part geometryLong-lifeSmooth, chatter free grindingIdeal for deburring and polishing stainless steel, aluminum, mild steel, and exotics.Non loading on aluminum, brass, bronze, and other non-ferrous metals.

Typical Applications By Industry
Aircraft/Aerospace - Debur and finish engine componentsAutomotive - Debur, chamfer and finish machined/cast partsTool & Die - Clean, debur and finishFabrication - Corner blending, edge breaking, I.D. and O.D. debur and blend.Jewelry - Remove parting lines and finish casting


Shape No.	Wheel Diameter	Wheel Thickness	1/2" Overhang	1" Overhang
B41	5/8	5/8	33,750	23,250
B42	1/2	3/4	33,750	23,250
B43	1/4	5/8	76,160	46,200
B44	7/32	3/8	68,400	42,370
B45	3/16	5/16	79,600	49,650
B46	1/8	5/16	83,530	53,580
B51	7/16	3/4	45,370	28,500
B52	3/8	3/4	45,370	28,500
B53	5/16	5/8	60,000	37,120
B54	1/4	1/2	60,000	38,020
B61	3/4	5/16	38,250	24,370
B62	1/2	3/8	41,020	26,400
B71	5/8	1/8	61,120	43,970
B91	1/2	5/8	34,500	22,500
B101	5/8	11/16	33,750	23,250
B102	5/8	1/2	45,370	28,500
B104	5/16	3/8	68,400	42,370
B111	7/16	11/16	33,750	23,250
B112	3/8	1/2	45,370	28,500
B121	1/2	1/2	45,370	28,500
B122	3/8	3/8	61,650	37,720
B123	3/16	3/16	84,720	54,760
B131	1/2	1/2	34,500	22,500
B132	3/8	1/2	45,370	28,500
B133	3/8	3/8	54,000	33,000
