• Model NO.：Type B
• HS Code：68042210
• Production Capacity：50 000 000PCS,Year

Basic Info.

Model NO. Type B HS Code 68042210 Production Capacity 50 000 000PCS/Year

Product Description

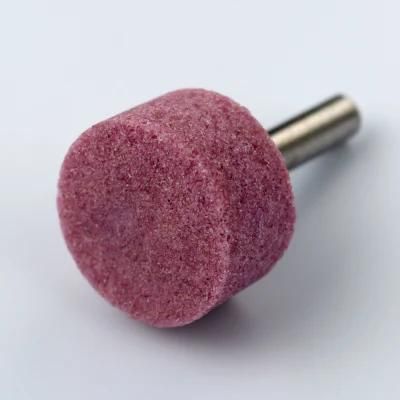

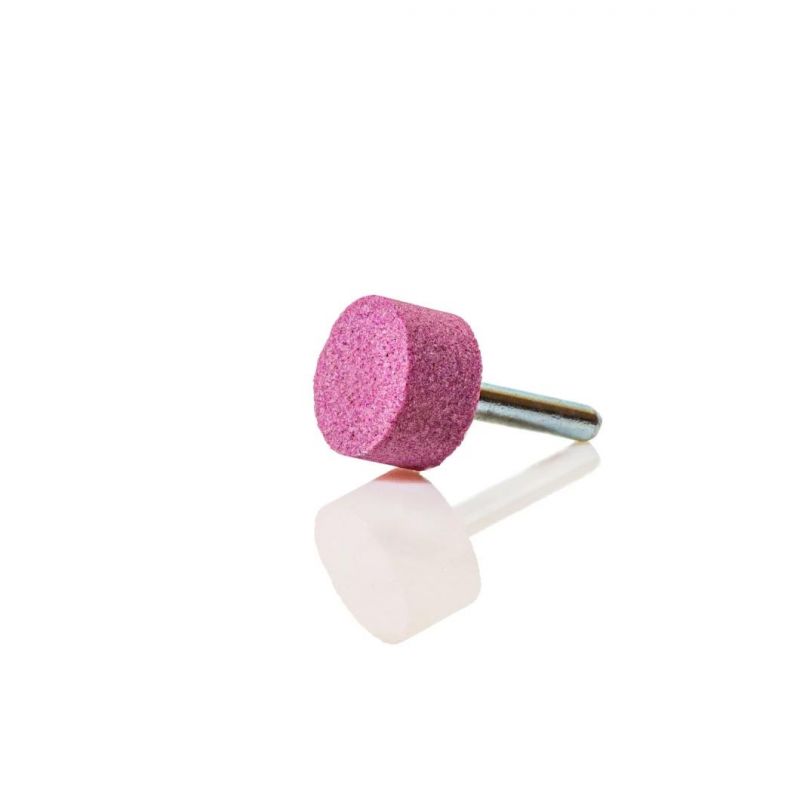

 Mounted Points with Pink Aluminum Oxide

»Mounted points made from pink aluminum oxide for steel and cast steel
»For the preparation of weld seams, processing of weld seams
»Rough machining to fine processing
»For deburring and buffing



Ø 3mm shank Group B
ISO Designation	B41	B42	B43	B44	B45	B46	B47
d1 x b(mm)	16 x 16	13 x 19	6 x 8	6 x 10	5 x 8	3 x 8	3 x 4
ISO Designation	B51	B52	B53	B54	B55	B61	B62
d1 x b(mm)	11 x 19	10 x 19	8 x 16	6 x 13	3 x 6	19 x 8	13 x 10
ISO Designation	B63	B65	B68	B71	B72	B81	B82
d1 x b(mm)	6 x 5	3 x 3	6 x 2	16 x 5	13 x 4	19 x 8	13 x 6
ISO Designation	B84	B91	B92	B93	B94	B95	B96
d1 x b(mm)	8 x 5	13 x 16	6 x 6	5 x 5	4 x 2	3 x 5	3 x 6
ISO Designation	B97	B98	B101	B102	B103	B104	B105
d1 x b(mm)	3 x 10	2 x 6	16 x 18	16 x 13	16 x 5	8 x 10	6 x 6
ISO Designation	B106	B111	B112	B113	B114	B115	B121
d1 x b(mm)	3 x 2	11 x 18	10 x 13	6 x 6	6 x 10	2 x 3	13
ISO Designation	B122	B123	B124	B125	B131	B132	B135
d1 x b(mm)	10	5	3	6	13 x 13	10 x 13	6 x 13
