• Model NO.：Chemshun ceramics
• Firing Temperature：1680
• OEM：Design According Customer′s Drawings
• Transport Package：Cartons Fixed on Pallet
• Specification：100*100MM 300*300MM 500*500 MM
• Trademark：CHEMSHUN
• Origin：Jiangxi, China
• HS Code：69091200
• Production Capacity：5000 Ton, Year

Basic Info.

Model NO. Chemshun ceramics Firing Temperature 1680 OEM Design According Customer′s Drawings Transport Package Cartons Fixed on Pallet Specification 100*100MM 300*300MM 500*500 MM Trademark CHEMSHUN Origin Jiangxi, China HS Code 69091200 Production Capacity 5000 Ton/ Year

Product Description

Abrasive Resistant High Alumina Rubber Backed Ceramic Liner

Description:
1.92%Al2O3 & 95% Al2O3 Standard wear resistant alumina ceramic liner/cylinder/mosaic/hexagon tile/ceramic cubes.
2.Abrasion resistant high alumina ceramic pipe/tubes ,diameter from 20mm to 500mm
3.Ceramic rubber wear liner/Steel Rubber ceramic composite panel.
4.Wear resistant pre-engineering tile in a variety of geometric shapes from simple to complex,the ceramics can be engineered or moulded to specific shapes to customer's requirement.
5.Ceramic lined process equipment like pipes,,bends,chutes,hoppers,bunkers, cyclonesetc.

Appearance:



Product Catalog:
Chemshun alumina ceramic liner has excellent abrasion resistance,impact resistant,corrosion resistance, heat resistance,it is widely used in the mining,mineral process, power generation plant,steel plant,cement industries, petro-chemical refining, coal washery, port .Common items equipment need wear linings are: Agitators; Bends; Branches; bunker; Chutes; Classifiers; Cones; Cyclones; convey belt; Distribution Box; Ejectors; Fans; Feeders; Hopper; Launders; Manifolds; Mills; Orifice; Pipes; Pipe Bends; Pipe fitting; Pulley lagging; Silos; Splitter Boxes; Spoons; Square Bends; Square to Round; Tanks; Troughs; Transfer points; T-Pieces; Y-Pieces etc.
Not only professional producing alumina industrial ceramics, Chemshun technician team and installation team who can help the client to choose the right product and afford the CAD design drawings for the pre-engineered tiles, designed layout drawing and installation of ceramics for the clients.


Characters
Chemshun Abrasion-resistant alumina ceramic rubber liner (Al2O3: 92%, 95%)

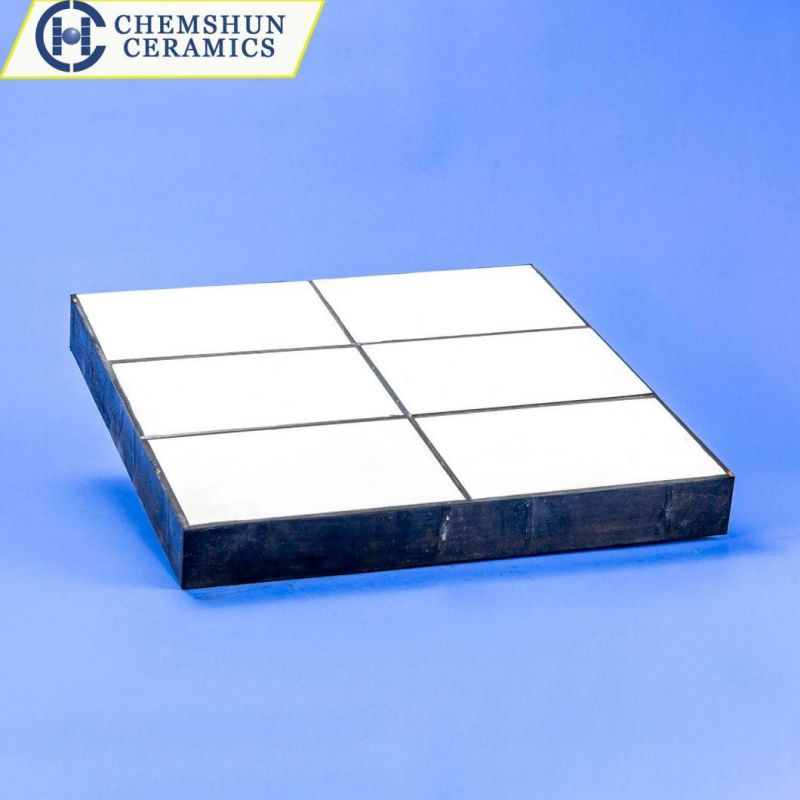

Abrasive resistant high alumina rubber backed ceramic tile:
---- Character: High impact, abrasion resistance, corrision resistance, high temperature resistance
-----size: 200*200 mm 300*300 mm 500*500 mm
-----structure: Rubber+ ceramic available, rubber +ceramic+steel plate available
------application industry: Mining, mineral, cement, coal power generation, steel industry, port, material handling system
------application machine:
-- ash pipeline -- mixer troughs
-- belt discharge chutes -- pipe bends
-- bunker spirals -- pipes
-- bunkers -- pneumatic backfill lines
-- channels -- priling tower bottoms
-- chutes -- pulpers
-- circulating air separators -- receivers
-- continuous flow conveyors -- screw conveyor troughs
-- cyclones -- separators
-- dissolving tanks -- setting basins
-- drying sections -- shaft spiral
-- dust collectingequipment -- dust collecting pipes -- silos
-- fans -- sinter troughs
-- flue gas ducts -- tailing lines
-- flumes -- tanks
-- gravele lrease tunnels -- hoppers of rotary dryers -- tubular chain conveyors
-- hydro-cyclones -- turbo separators
-- launders -- vibrating troughs
-- washing drums

Technical Data

Item	Index
Content of alumina	95% or 92% available
Denisty	≥ 3.5g/cm3
Rockwell hardness	≥ 80 HRA
Impact strength	≥ 850 Mpa
Fracture toughness	≥ 4.8 Mpa . m½
Bending strenght	≥290 Mpa
Thermal conductivity	20 W/ M. K
Thermal expansion coefficient	7.2 * 10-6M/M.K
