Abrasive & Grinding

Rod Mill Forged Grinding Rod

Shandong Shengye Grinding Ball Co., Ltd.
  • Materials:Alloy Steel
  • Certification:ISO, GS, RoHS, TUV ISO 9001 , BV , SGS
  • Applications:Metal Mining, Cement Plant
  • Shape:Round
  • Specifications:Dia 30mm-130mm
  • Standard:Standard

Base Info

  • Model NO.:45#, 50Mn, 60Mn, 65Mn, B2, B3
  • Product Name:Grinding Steel Rod
  • Process:Hot Rolled Steel & Fored
  • Service:Free Samples & Customize
  • Heat Treatment:Quenching+Tempering
  • Hardness:45-65HRC
  • Breakage Rate:<1%
  • Impact Toughness:>12ak.J,Cm^2
  • Transport Package:Steel Drums & Flexible Container Bags
  • Specification:60Mn, 65Mn, B2, B3, BL, BG
  • Trademark:ShengYe
  • Origin:Shandong, China
  • HS Code:73261100
  • Production Capacity:100, 000 Tons

Description

Type BDiameter: Φ60mm-Φ130mm,  Length: 3m-6m & customizable,  Hardness: 45-75HRCC: 0.5-1.05    Si : 0.15-1.85     Mn: 0.35-1.0    S: 0.05max    P:0.05max   Cr: 0.7-1.7CertificationTUV ISO9001, SGS, ISO14001, OHSAS 18001Material Alloy SteelBreakage rate  ≤1%Impact toughness>12 AK.j/cm^2 Application Areas· Rod mills  · Mineral processing Plants
Grinding rod Benefits

· Even hardness
· Unbreakable
· Grinding resistant
· High impact value
· High combined efficiency of grinding mill

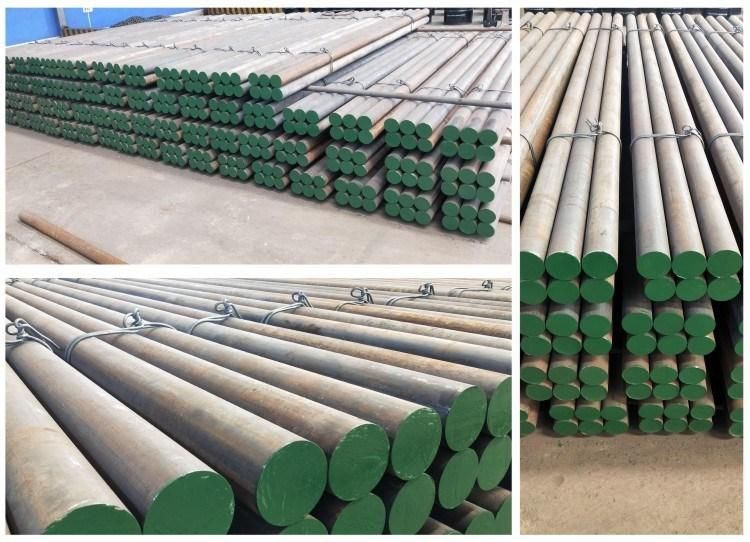

Rod Mill Forged Grinding Rod

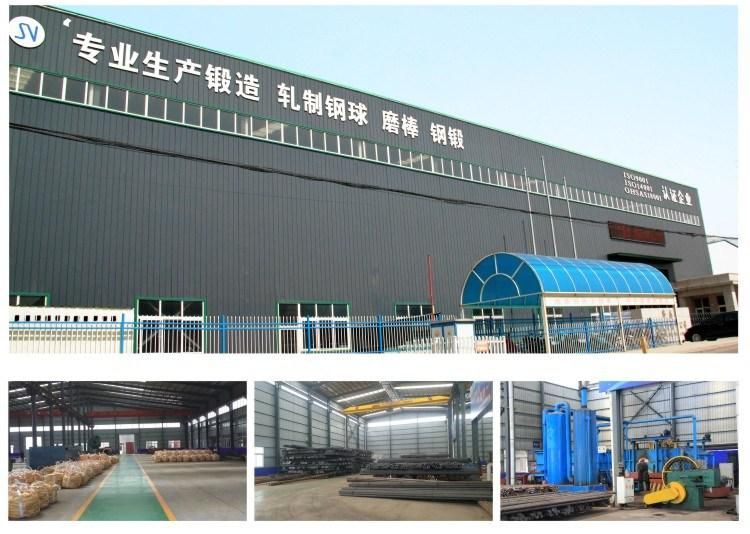

                                                About Us

SHANGDONG SHENGYE GRINDING BALL CO.,LTD  specializes in the production of grinding steel ball for ball mill. Staff are trained and selected by strict overseas technology . The quality of products is consistent and the specifications are complete. The annual output of diameter DIA 20MM-DIA 150MM grinding steel ball is 100000 tons.
Due to the application of internationally advanced technology and manufacture experience ,our grindingsteel balls have the advantages of rubbing endurance, crashing tolerance and roundness persistence ,compared to other products in this field. We record the data for our products, follow up customers and drop in services at calling to solve customers' uncertainties.
                                         Rod Mill Forged Grinding Rod

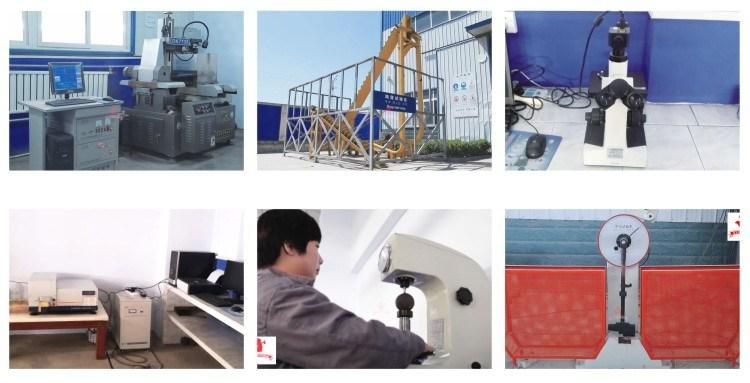

Quality control
_____________________________________________________________________________________________________________
Our company has a first-class laboratory, and equipped with advanced testing equipment, such as spectrometer, hardness tester, microscope, drop tester, impact tester, laser cutting machine, etc.,to ensure that our products from raw material into the factory to the prduction process to the shipment of every link quality control assurance and traceability.

Rod Mill Forged Grinding Rod

Certifications
_____________________________________________________________________________________________________________


Our company's products have passed the German TUV ISO9001 quality system certification, ISO14001 environmental management system certification, OHSAS 18001 occupational health and safety management system certification, Safety Production Standardization Certificate issued by the Administration State of Work Safety.


Rod Mill Forged Grinding Rod

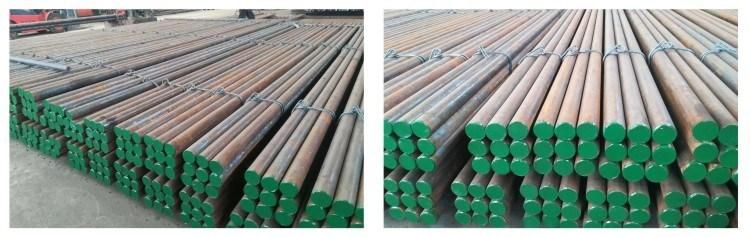

Packing Way
_____________________________________________________________________________________________________________


1. Ocean shipping
2. Customers designated transportation mode.
3. Packing Details  :Packing in bundles, 9-20 pcs
 per bundle.
4. Delivery Details : Witnin 15-20 days after received the payment or LC at sight.


Rod Mill Forged Grinding Rod

After-service:
_____________________________________________________________________________________________________________

1. If any quality problems, we are committed to a full refund.
2. Pay a return visit once a week.
3. When a fault occurs we will deal with it for the first time and resolve problem within 1-2 working days.
4. If you have any question, please contact me freely. We will give you a reply in the first time.

Rod Mill Forged Grinding Rod

FAQ Q1: What is the advantage of your company?

A: We are a professional steel ball manufacturers, which have 10 years of production experience.
We also have Hi-Tech and capable production line.

Q2. In which countries are your products sold?

A: Our products are exported to over 30 countries and regions including USA, Republic of Korea, Japan, Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.

Q3: Are you trading company or manufacturer ?

A: We are factory.

Q4: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q5: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q6: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,
balance before shippment.


If you have another question, pls feel free to contact us as below:





Ina / MANAGER
SHANDONG SHENGYE GRINDING BALL CO.,LTD
