Industrial Horizontal Bead Mill for Paint, Ink, Pigment, Agrochemical
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type:Mill
- Power Source:Hydraulic
- Object:Paint Manufacturing Machine
- Application:Chemical
- Disc(Wheel) Type:Grinding Disc
- Material:Stainless Steel 304,316L
Base Info
- Model NO.:EBL
- Working Style:High-speed universal
- Disc Diameter:180mm
- Variable Speed:With Variable Speed
- Usage:Wet-Grinding, Industrial Paint Manufacturing
- Product Type:Paint Cosmetic Detergent Powder Perfume Shampoo
- Field 1:Grinding&Milling Machine Pin Mill Horizontal Mill
- Field 2:Industrial Bead Mill,Grease Plant,Resin Plant
- Field 3:Dissolver Motorized Lifting,Basket Mill,Ointment
- Field 4:Attritor Mill,Chemical Processing Plant,Laboratory
- Transport Package:Wooden Case
- Specification:customize
- Trademark:ELE
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100-2000L,H
Description
Basic Info.
Model NO. EBL Working Style High-speed universal Disc Diameter 180mm Variable Speed With Variable Speed Usage Wet-Grinding, Industrial Paint Manufacturing Product Type Paint Cosmetic Detergent Powder Perfume Shampoo Field 1 Grinding&Milling Machine Pin Mill Horizontal Mill Field 2 Industrial Bead Mill/Grease Plant/Resin Plant Field 3 Dissolver Motorized Lifting/Basket Mill/Ointment Field 4 Attritor Mill/Chemical Processing Plant/Laboratory Transport Package Wooden Case Specification customize Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 100-2000L/HProduct Description

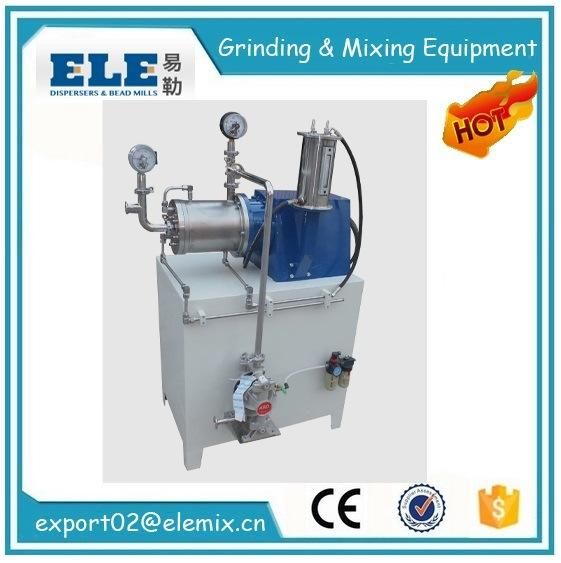

EBL vertical beads millFeatures:
1, two types: Open and closed.
2, suitable for low viscosity, large-scale production, relatively low requirement on fineness
3, high price-quality ratio, convenient operation,
4, relatively low requirement on grinding beads. (glass beads are applicable)
Specifications
Model | Chamber Volume (L) | Power (kw) | Rotation (rpm) | Capacity (L/H) | Dimension (mm) | Weight (kg) |
EBL-10 | 10 | 7.5 | 1500 | 500 | 1200X500X600 | 300 |
EBL-20 | 20 | 15 | 1500 | 1000 | 1900X650X700 | 550 |
EBL-40 | 40 | 22 | 1500 | 2000 | 2100X750X800 | 700 |
EBL-60 | 60 | 30 | 1500 | 3000 | 2400X850X900 | 1200 |
EBL-80 | 80 | 37 | 960 | 5000 | 2600X950X1000 | 1800 |
EBL-100 | 100 | 45 | 960 | 10000 | 2800X1050X1100 | 3000 |
