Yihong 400 Automatic Sanding Belt Slitting Machine for Small Belt Slitting
Jia County Yihong Abrasives Co., Ltd.- Color：Green
- Max Belt Width：300mm
- Minumum Belt Slitting Width：6mm
- Max Slitting at One Time：20 PCS
- Power：0.75kw
- Electric Power：380V 50Hz
Base Info
- Weight：320kg
- Max Tension of Belt：180kgf
- Max Knife Slitting Pressure：550kgf
- Transport Package：Wooden Case with Fixation
- Specification：1000x950x930
- Trademark：YIHONG
- Origin：China
- HS Code：8441100000
Description
Basic Info.
Weight 320kg Max Tension of Belt 180kgf Max Knife Slitting Pressure 550kgf Transport Package Wooden Case with Fixation Specification 1000x950x930 Trademark YIHONG Origin China HS Code 8441100000Product Description
YIHONG Automatic Sanding Belt Slitting Machine With Precise Slitting for Small Belt Slitting
YIHONG-400mm

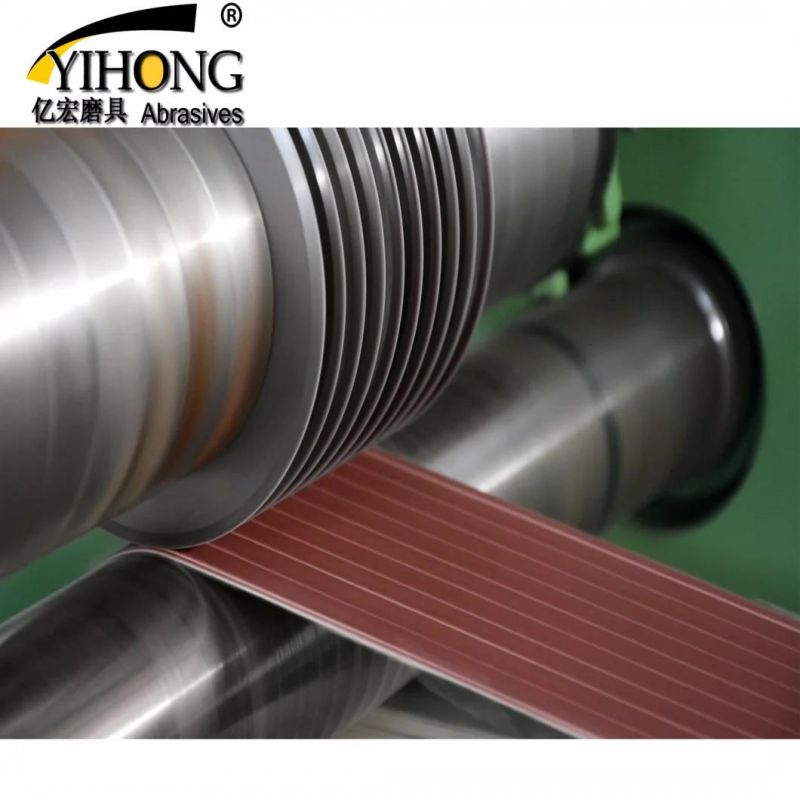

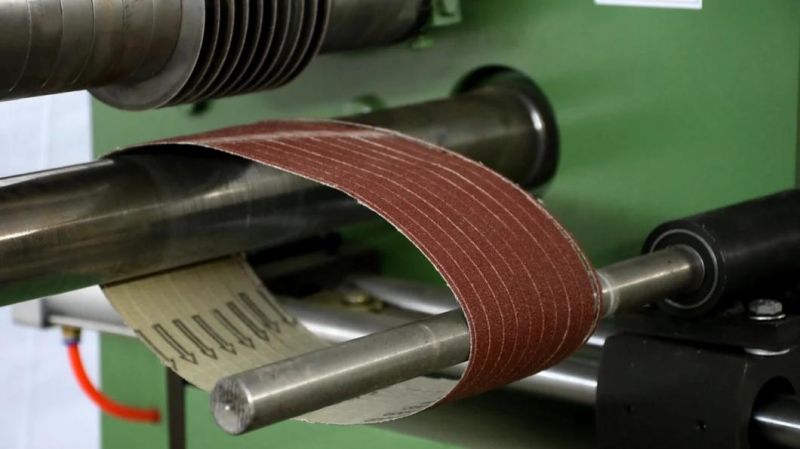

This machine is mainly for narrow belt slitting with fix knife sets, precise slitting.
The machine is mainly for small belt slitting, with fix knife sets, precise slitting.
Specification:
Max belt width: 400mm
Minimum belt slitting width: 6mm
Max slitting at one time: 20pcs
Suitable sanding belt length: 260~800mm/ 340~1500mm
Max knife slitting pressure: 550Kgf
Max tension of belt: 180Kgf
BASIC PARAMETERS
Power: 0.75KW
Electric supply: 380V, 50HZ
Pneumatic supply: 0.7 Mpa
Dimension: 1000*950*930mm/ 1510*1350*1330mm
Weight: 320KG/ 460KG
