• Model NO.：1" x 2-3,4" x 1,4" Shank A3
• Trademark：INGLAU
• Origin：China
• HS Code：68042210
• Production Capacity：50, 000, 000PCS,Month

Basic Info.

Model NO. 1" x 2-3/4" x 1/4" Shank A3 Trademark INGLAU Origin China HS Code 68042210 Production Capacity 50, 000, 000PCS/Month

Product Description

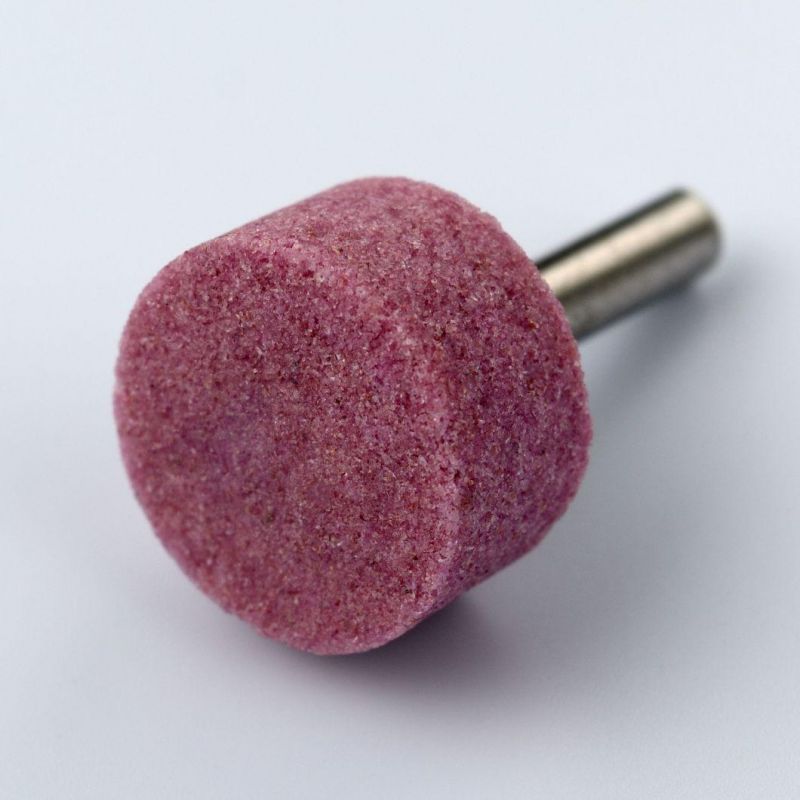

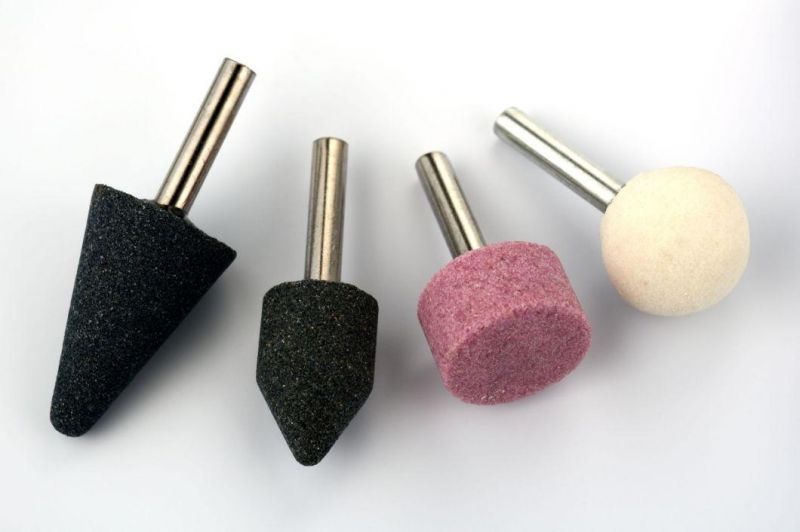

INGLAU Mounted Point With through knowledge of varied aspects of the market, we have been able to come up with a range ofMounted Points. Made with brown, pink or white aluminum oxide and black & green silicon carbide, these are offered by us in vitrified as well as resin bonds forms in all popular Shapes. The mounting points we offer are extensively utilized for the purpose of grinding hard to reach corners and deburring sharpening. Further, clients can buy these mounted points and wheels from us in different standard shapes & size as per their needs.

Features:

Longer service life
Resistance to corrosion
Dimensional accuracy

Unit Pack Quantity: 50 nos.

Ø 3mm shank Group W
ISO Designation	W142	W144	W145	W146	W149	W150	W153
d1 x b(mm)	2.5 x 6	3 x 6	3 x 10	3 x 13	4 x 6	4 x 10	5 x 10
ISO Designation	W154	W160	W162	W163	W164	W169	W170
d1 x b(mm)	5 x 13	6 x 6	6 x 10	6 x 13	6 x 19	8 x 10	8 x 13
ISO Designation	W171	W174	W176	W182	W183	W184	W185
d1 x b(mm)	8 x 16	10 x 6	10 x 13	13 x 3	13 x 6	13 x 10	13 x 13
ISO Designation	W191	W192	W193	W200	W212	W215	W216
d1 x b(mm)	16 x 3	16 x 6	16 x 10	19 x 3	22 x 6	25 x 3	25 x 6
Ø 6mm shank Group W
ISO Designation	W176	W178	W186	W187	W188	W194	W195
d1 x b(mm)	2.5 x 6	3 x 6	3 x 10	3 x 13	4 x 6	4 x 10	5 x 10
ISO Designation	W196	W197	W200	W201	W204	W205	W207
d1 x b(mm)	16 x 25	16 x 51	19 x 3	19 x 6	19 x 19	19 x 25	19 x 38
ISO Designation	W216	W218	W220	W221	W222	W225	W229
d1 x b(mm)	26 x 6	25 x 13	25 x 25	25 x 38	25 x 51	32 x 6	30 x 25
ISO Designation	W230	W232	W236	W237	W238	W240	W242
d1 x b(mm)	32 x 32	32 x 51	38 x 13	38 x 25	38 x 38	50 x 13	50 x 25
