• Model NO.：1" x 1" x 1,4" Shank W220 Shape
• Trademark：INGLAU
• Origin：China
• HS Code：68042210
• Production Capacity：50, 000, 000PCS,Month

Basic Info.

Model NO. 1" x 1" x 1/4" Shank W220 Shape Trademark INGLAU Origin China HS Code 68042210 Production Capacity 50, 000, 000PCS/Month

Product Description

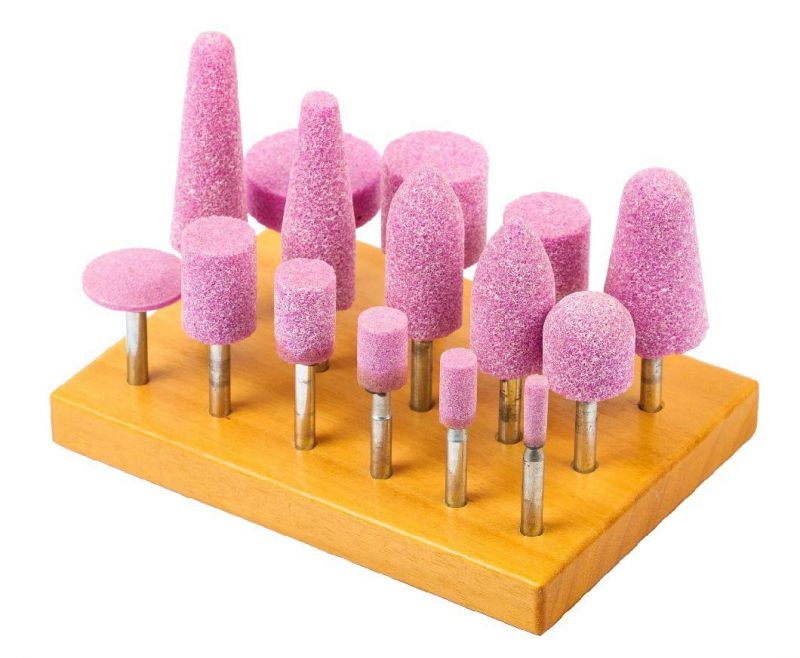

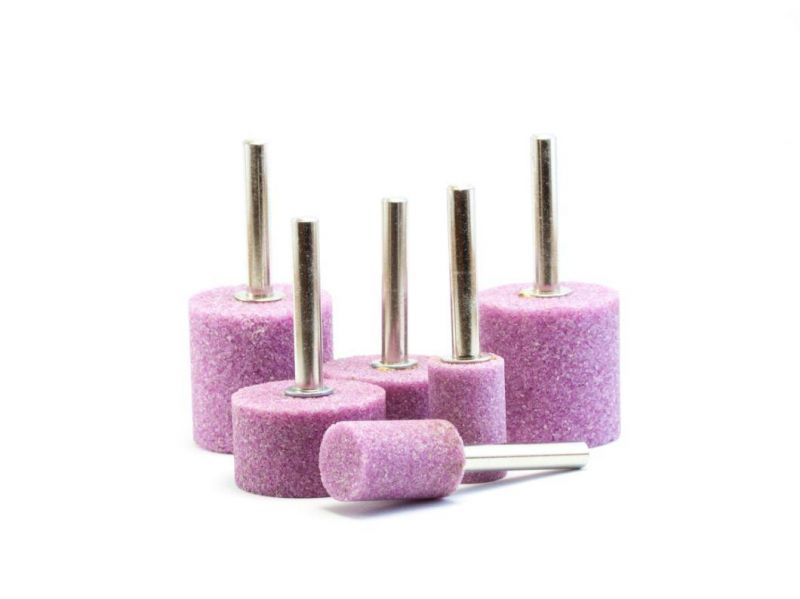

INGLAU Mounted Points With through knowledge of varied aspects of the market, we have been able to come up with a range ofMounted Points. Made with brown, pink or white aluminum oxide and black & green silicon carbide, these are offered by us in vitrified as well as resin bonds forms in all popular Shapes. The mounting points we offer are extensively utilized for the purpose of grinding hard to reach corners and deburring sharpening. Further, clients can buy these mounted points and wheels from us in different standard shapes & size as per their needs.

Features:

Longer service life
Resistance to corrosion
Dimensional accuracy

Unit Pack Quantity: 50 nos.


Ø 3mm shank Group B
ISO Designation	B41	B42	B43	B44	B45	B46	B47
d1 x b(mm)	16 x 16	13 x 19	6 x 8	6 x 10	5 x 8	3 x 8	3 x 4
ISO Designation	B51	B52	B53	B54	B55	B61	B62
d1 x b(mm)	11 x 19	10 x 19	8 x 16	6 x 13	3 x 6	19 x 8	13 x 10
ISO Designation	B63	B65	B68	B71	B72	B81	B82
d1 x b(mm)	6 x 5	3 x 3	6 x 2	16 x 5	13 x 4	19 x 8	13 x 6
ISO Designation	B84	B91	B92	B93	B94	B95	B96
d1 x b(mm)	8 x 5	13 x 16	6 x 6	5 x 5	4 x 2	3 x 5	3 x 6
ISO Designation	B97	B98	B101	B102	B103	B104	B105
d1 x b(mm)	3 x 10	2 x 6	16 x 18	16 x 13	16 x 5	8 x 10	6 x 6
ISO Designation	B106	B111	B112	B113	B114	B115	B121
d1 x b(mm)	3 x 2	11 x 18	10 x 13	6 x 6	6 x 10	2 x 3	13
ISO Designation	B122	B123	B124	B125	B131	B132	B135
d1 x b(mm)	10	5	3	6	13 x 13	10 x 13	6 x 13
