Nano Ultra High Performance Alumina Toughened Zirconia Ceramic CS-52
Pingxiang Chemshun Ceramics Co., Ltd.- Material：Zro2, Al2O3
- Usage：Construction, Machinery, Grind
- Processing Type：Rolling or Isostatic Pressing
- Size：0.4~5mm
- Color：White or Cream
- Customized：Customized
Base Info
- Model NO.：CS-52
- Featrue：High Hardness, High Density and Anticorrosion
- Application：Mining Machine
- Grinding Situation：Dry Grinding, Wet Griding
- Field：Chemical, Paints, Dyes
- OEM：Accept
- Specific Gravity：5.1~5.3G,Cm3
- Vickers Hardness：1350~1450
- Water Absorption：0%
- Transport Package：by Bags, Then Fasten on Pallet.
- Specification：D0.4~D5mm
- Trademark：Pingxiang Chemshun Ceramics
- Origin：P. R. China
- HS Code：69091200
- Production Capacity：2500 Ton , Year
Description
1.Chemical materials,paint,printing,ink,pigment.
2.Advanced ceramics pastes or powder.
3.Electronic pastes: gold platinum, silver,cuprum, nickel.
4.Food stuff,pharmaceuticals,cosmetics.CS-62 ZrO2,CeO2 0.6~4.0 6.1~6.2
>High grinding efficiency
>Decreasing product contamination
>Longer product life cycle
>Reduce mill wear and maintenance cost, less down time
>Less energy than steel or iron balls
>Less cost per volume than high-density steel media alternatives
The Features:
>High hardness
>Superior impact and wear resistance
>Uniform size and good roundness
>Inert Chemical and environmentally friendly
>Engineered made
Applications:
>Mining
>Mineral
>Industrial Ceramics
>Electronic Ceramics
>Cement
>Chemical
>Paints
>Inks
>Dyes
>Pigments
>Magnetic coatings

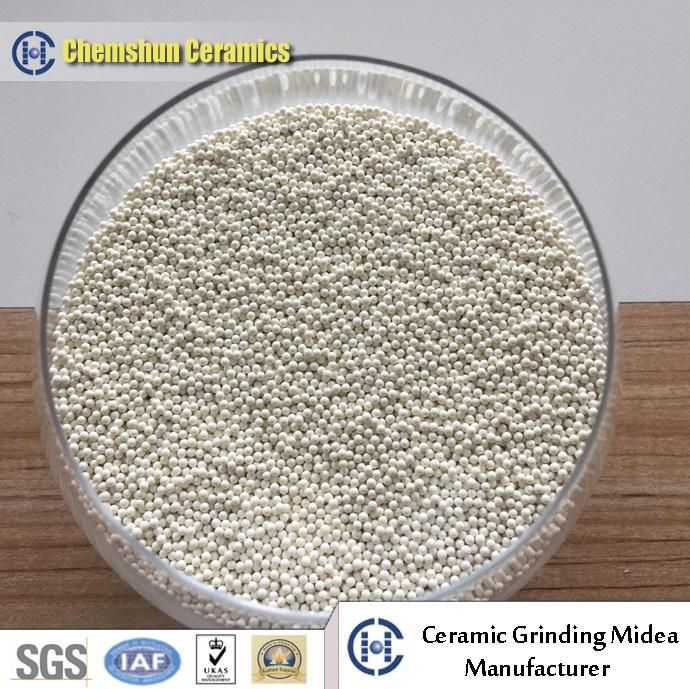

CS-52 Series Alumina toughened Zirconia Ceramic Grinding Media
CS-52 series Zirconia ceramic grinding media is an ultra high-performance, high density, durable and cost effective ceramic grinding media, applications in stirred vertical mills and horizontal mills such as Metso's SMD , Glecore IsaMill, FLSmidth's VXP mill or the Outotec HIGMill. With superior strength, high hardness, wear resistance and consistent particle size and shape characteristics, It is well suited to high speed milling process of mineral ores and similar hardness and provide unmatched economic and performance for you.
Chemical and physical properties
Note: The data of the sheet here are based on laboratory testing, data is subject to change due to continuous improvement of the products.
Package:
1ton big-bag, or 25kg/small bag, or 25kg/drum.
Service:
We have experts team understand your needs supply the engineered great ceramic grinding media for your grinding application.
We offer on-site visiting, lab testing, professional solution for you.
Web:chemshun.en.made-in-china.com .
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
2.Advanced ceramics pastes or powder.
3.Electronic pastes: gold platinum, silver,cuprum, nickel.
4.Food stuff,pharmaceuticals,cosmetics.
>High grinding efficiency
>Decreasing product contamination
>Longer product life cycle
>Reduce mill wear and maintenance cost, less down time
>Less energy than steel or iron balls
>Less cost per volume than high-density steel media alternatives
The Features:
>High hardness
>Superior impact and wear resistance
>Uniform size and good roundness
>Inert Chemical and environmentally friendly
>Engineered made
Applications:
>Mining
>Mineral
>Industrial Ceramics
>Electronic Ceramics
>Cement
>Chemical
>Paints
>Inks
>Dyes
>Pigments
>Magnetic coatings
CS-52 Series Alumina toughened Zirconia Ceramic Grinding Media
CS-52 series Zirconia ceramic grinding media is an ultra high-performance, high density, durable and cost effective ceramic grinding media, applications in stirred vertical mills and horizontal mills such as Metso's SMD , Glecore IsaMill, FLSmidth's VXP mill or the Outotec HIGMill. With superior strength, high hardness, wear resistance and consistent particle size and shape characteristics, It is well suited to high speed milling process of mineral ores and similar hardness and provide unmatched economic and performance for you.
Chemical and physical properties
| Property | Data |
| Main chemical composition | ZrO2, Al2O3 |
| Diameter range | 0.4~5mm |
| Specific gravity | 5.1~5.3g/cm3 |
| Roundness | >93% |
| Vickers hardness | 1350~1450 |
| Water absorption | 0% |
| Color | White or Cream |
Note: The data of the sheet here are based on laboratory testing, data is subject to change due to continuous improvement of the products.
Package:
1ton big-bag, or 25kg/small bag, or 25kg/drum.
Service:
We have experts team understand your needs supply the engineered great ceramic grinding media for your grinding application.
We offer on-site visiting, lab testing, professional solution for you.
Web:chemshun.en.made-in-china.com .
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
