• Model NO.：DIA 20mm-150mm
• Customized：Customized
• Product Name：Alloy Steel Grinding Balls
• Process：Rolling, Forging, Casting
• Certification：TUV ISO 9001 , BV , SGS
• Service：Free Samples & Customizable
• Heat Treatment：Quenching+Tempering
• Hardness：60-65HRC
• Breakage Rate：<1%
• Impact Toughness：>12ak.J,Cm^2

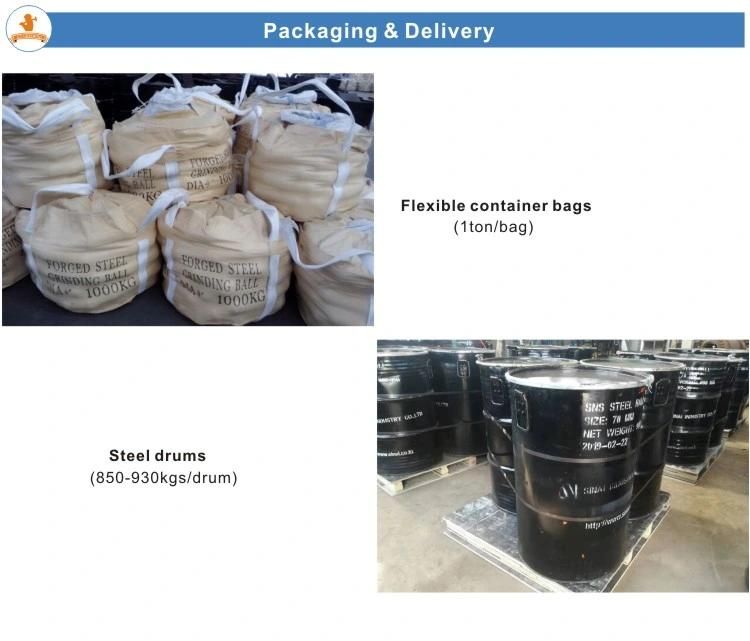

• Transport Package：Steel Drums & Flexible Container Bags
• Specification：45#, 50Mn, 60Mn, 65Mn, B2, B3, BL, BG
• Trademark：ShengYe
• Origin：Shandong, China
• HS Code：73261100
• Production Capacity：100000

NameCMnSiSPCrSY-01-45#0.42-0.480.50-0.800.17-0.370.05max0.05max0.15maxSY-02-50Mn0.48-0.560.65-1.000.17-0.370.05max0.05max0.15maxSY-03-60Mn0.57-0.650.70-1.100.17-0.370.05max0.05max0.25maxSY-04-65Mn0.62-0.750.90-1.200.17-0.370.05max0.05max0.25maxSY-05-B20.75-0.850.70-0.900.17-0.350.05max0.05max0.40-0.60SY-06-B30.50-0.650.40-1.001.35-1.850.05max0.05max0.80-1.20SY-07-BL0.55-0.750.65-0.850.15-0.350.05max0.05max0.70-1.20SY-08-BG0.90-1.050.35-0.950.15-0.350.05max0.05max1.0-1.70

Forged(Rolling) Steel Ball Mechanical Propety

NameImpact Value AK.J/cm²Dropping test(sm)

Dia25-50

Surface

(HRC)

Dia25-50

Core

(HRC)

Dia60-90

Surface

(HRC)

Dia60-90

Core

(HRC)

Dia100-150

Surface

(HRC)

Dia100-150

Core

(HRC)

SY-01-45#≥12≥15000≥55≥38≥50≥35≥45≥25SY-02-50Mn≥12≥15000≥56≥40≥56≥35≥50≥30SY-03-60Mn≥12≥15000≥58≥45≥58≥38≥52≥35SY-04-65Mn≥12≥15000≥60≥52≥60≥42≥53≥36SY-05-B2≥12≥15000≥60≥60≥60≥54≥55≥48SY-06-B3≥12≥15000≥60≥60≥60≥54≥58≥53SY-07-BL≥12≥15000≥60≥60≥60≥54≥58≥55SY-08-BG≥12≥15000≥60≥60≥60≥60≥60≥60

Grinding performance
*Even hardness
*Unbreakable
*Grinding resisant
*High impact value
*High combined efficiency of grinding mill



SHANGDONG SHENGYE GRINDING BALL CO.,LTD specializes in the production of grinding steel ball for ball mill. Staff are trained and selected by strict overseas technology . The quality of products is consistent and the specifications are complete. The annual output of diameter DIA 20MM-DIA 150MM grinding steel ball is 120000 tons.
Due to the application of internationally advanced technology and manufacture experience ,our grinding steel balls have the advantages of rubbing endurance, crashing tolerance and roundness persistence ,compared to other products in this field. We record the data for our products, follow up customers and drop in services at calling to solve customers' uncertainties.

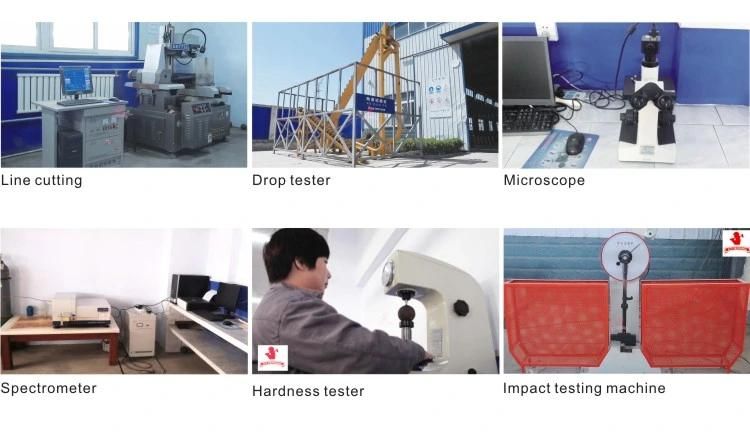

Steel grinding ball testing equipment


Our company has complete testing equipment and has passed the double certification of SGS and BV as qualified factories. Our company has a first-class laboratory, and equipped with advanced testing equipment, such as spectrometer, hardness tester, microscope, drop tester, impact tester, laser cutting machine, etc.,to ensure that our products from raw materials into the factory to the production process to the shipment of every link quality control assurance and traceability.

Our products are exported to over 30 countries and regions including USA, Republic of Korea,
Japan,Malaysia, Australia, Canada and South Africa, etc., well and universally received by clients. In order to better serve customers, we have set up the office in Malaysia, Chile, United States and Spain.

After-sale services

 *Any quality problem, we promise to refund it in full.

 *During the use process, we will contact regularly.

 *Any problems arise in the course of use, we will solve them for you as soon as possible



RFQ

 Q1: What is the advantage of your company?

A: We are a professional steel ball manufacturers, which have 30 years of production experience.We also have Hi-Tech and capable production line.

Q2: Are you trading company or manufacturer ?

A: We are factory.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, please feel free to contact us as below:
