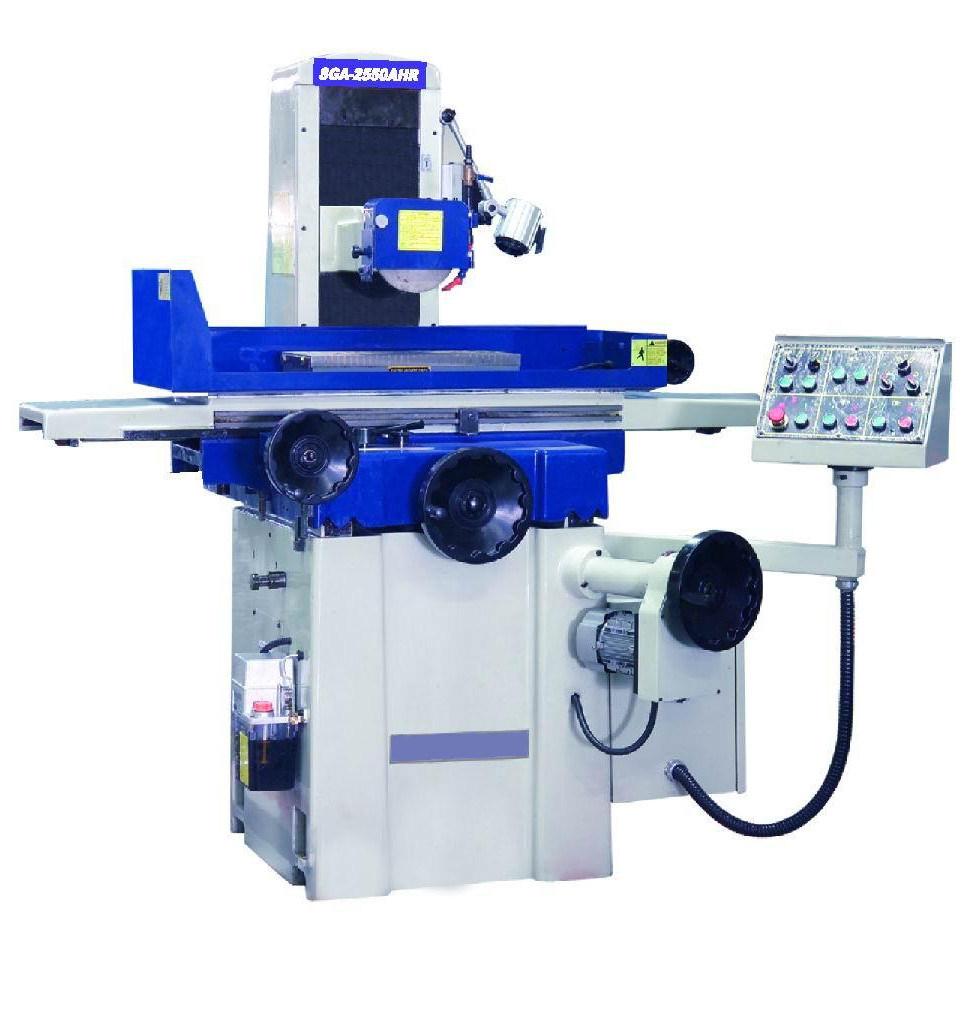

• Model NO.：SGA-2550AH, SGA-2550AHR ,SGA-2550AHD
• Working Style：High-speed universal
• Disc Diameter：150mm
• Variable Speed：With Variable Speed
• Table Size(Wxl)：250X500(Mm)
• Max. Longitudinal Travel：560mm
• Max. Cross Travel：275mm
• Max. Distance From Spindle Center to Tab：450mm
• Electro Magnetic Chuck Size：250X500mm
• Transport Package：Wood Case
• Specification：CE ISO
• Trademark：GNG MACHINE
• Origin：China
• HS Code：84595900
• Production Capacity：100sets,Month

Item/Model UnitSGA-2550AH  SGA-2550AHR  SGA-2550AHDtable size(WxL)mm250x500max. longitudinal travel mm560max. cross travelmm275max. distance from spindle center to tablemm450electro magnetic chuck sizemm250x500speed of table longitudinal movementm/min#REF!table transverse movementauto feedmm/min0.1-8rapid speedmm/min990feed of handwheelmm/div0.02wheelhead vertical movementauto feedmm---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)rapid speedmm/min---(H/AH model) / 460 (for AHR model)feed of handwheelmm/div0.005grinding wheelspeedrpm2850(50Hz),3450(60Hz)eize(ODxWxID)mm200x20x31.75spindle motorkw2.2hydranlic motorkw0.75cooling pump motorkw0.04elecating motorkw---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)cross feed motorkw1.04max.loading capacity of table(include chuck)kg180total rated powerkw3.7height of machine:1675mm
floor space(LxW):2300x1600(mm)
Gross weight:1800kg
package dimensions(LxWxH):2000x2100x2175(mm)
