Wheel Head Moving Surface Grinding Machine

Qingdao G & G Machinery Co., Ltd.
  • Type：Disc Grinder
  • Power Source：Electricity
  • Object：Drilling Bit
  • Application：Construction
  • Disc(Wheel) Type：Grinding Disc
  • Material：Metal

Base Info

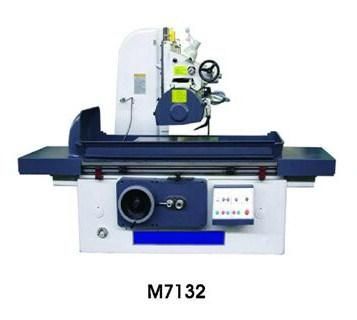

  • Model NO.：M7132
  • Working Style：High-speed universal
  • Disc Diameter：230mm
  • Variable Speed：With Variable Speed
  • Table Size(Wxl)：320X1000(mm)
  • Max. Machining Dimension(Wxl)：320X1000(mm)
  • Longitudinal Moving Speed of Worktable：5-25m,Min
  • T-Slot Number X W：3X18(mm)
  • Total Power：9 Kw
  • Transport Package：Wood Case or Carton
  • Specification：CE ISO
  • Trademark：GNG MACHINE
  • Origin：China
  • HS Code：84595900
  • Production Capacity：500 Sets,Month

Description

M71 wheel head moving surface grinder  Item/ModelUnitM7132table size(WxL)mm320x1000max. machining dimension(WxL)mm320x1000max. distance between spindle center line and worktable surfacemm575longitudinal moving speed of worktablem/min5-25T-slot number x Wmm3x18wheel head cross movingcontinuous feed speedm/min0.5-4.5 intermittent feed speedmm/t3-30 hand wheel feedmm/gra0.02wheel head vertical movingrapid speedmm/min400feed of handwheelmm/gra0.005wheel head motorpowerkw5.5rotation speedrpm1440total powerkw9max. loading capacity of worktable with chuckkg500chuck size (W x L)mm320x1000x1wheel size (ODxWxID)mm350x40x127machine dimension(LxWxH)cm286x164x203package dimensions(LxWxH)cm284x171x213machine weightt3.6*M7130AL with air cooling apparatus for hudraulic system of the machine to realize small increase of oil tank temperature.Wheel Head Moving Surface Grinding Machine
